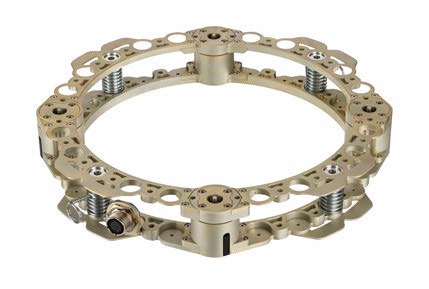

NEA® 15″ Payload Release Ring (PRR-15)
Ensign-Bickford Aerospace & Defense (EBAD)
The NEA® 15" Payload Release Ring (PRR-15) is a flight-proven mechanism designed to release payloads from a launch vehicle, utilizing four NEA® release mechanisms and separation springs.
Typed specifications3 values
Discloses 2 of 10 fields engineers filter by in this category (category median 2).
- Release time
- 40 ms max · product page
- Release shock
- 300 g max · product page
- Operating temperature
- -40 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Payload capability
- 250 kg
- Shock output
- <300 g’s
- Release time
- <40 ms
- Total mass
- 6.4 lb (2.9 kg)
- Fly away mass
- 2.2 lb (1 kg)
- Operating temperature
- -40°C to +102°C
- Spring energy
- 3.57 J
- Number of springs
- 4 to 20
About
The NEA® 15″ Payload Release Ring (PRR-15) is a robust and flight-proven system for separating payloads from launch vehicles. It consists of four NEA® release mechanisms, two ring halves, and separation springs with corresponding holders. The NEA® mechanisms compress the separation springs and hold the ring halves together. The PRR-15, with the attached payload, is mounted to the launch vehicle using 24 fasteners. Electrical connection to the launch vehicle is via redundant connectors, with an additional connector for communication between the launch vehicle and payload. Payload release occurs when the launch vehicle applies current to the PRR-15 connector, actuating the NEA® mechanisms and allowing the separation springs to push the payload away. Key features include low release shock, redundant actuation, support for payloads up to 250 kg, low mass, high stiffness, and operation with standard launch vehicle circuitry. It also offers a launch vehicle to payload connector interface, no debris generation, meets standard tip-off requirements, customizable separation velocity (4-20 push-off springs), and is qualified to standard launch environments using space-rated materials. Factory refurbishment is available. Typical applications include launch vehicle payload release for Ø15″ circular ports with 1/4″ fasteners, with other port sizes available for development.
