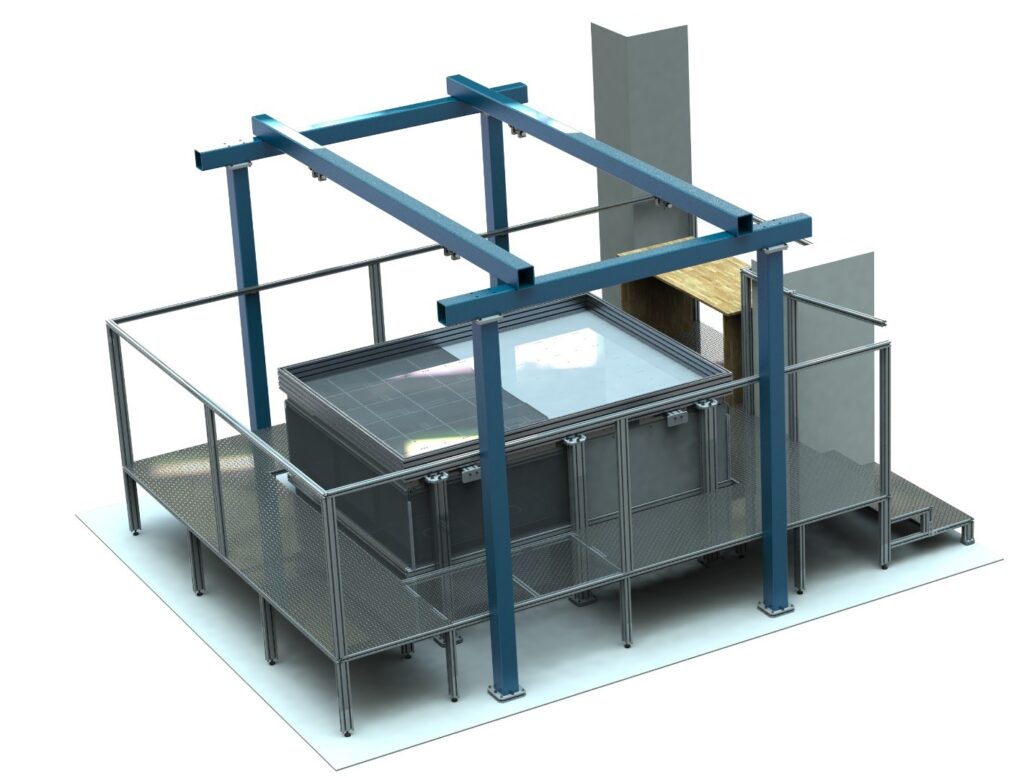

SXL-AIRTABLE-02 Spacecraft Relative-Motion Air Table
SPUTNIX
Air table for testing relative motion of spacecraft: a precision aluminium horizontal surface with an even grid of holes providing near-frictionless free motion of test objects in the horizontal plane (air-cushion pucks).
Key figurescomparable across the catalogue
- Largest dimension
- 5,000 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Type
- Air-bearing relative-motion table
- Overall dimensions
- 5000 × 4000 × 3000 mm
- Active area
- 1860 × 2480 mm
- Puck payload capacity
- up to 10 kg
- Puck-to-table gap
- ≤ 0.5 mm
- Working medium
- Air
- Surface levelling accuracy
- ≤ 0.1 mm
- Independent measurement
- ≤ 1° attitude, ≤ 10 mm position
About
Air table for testing relative motion of spacecraft: a precision aluminium horizontal surface with an even grid of holes providing near-frictionless free motion of test objects in the horizontal plane (air-cushion pucks).
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
