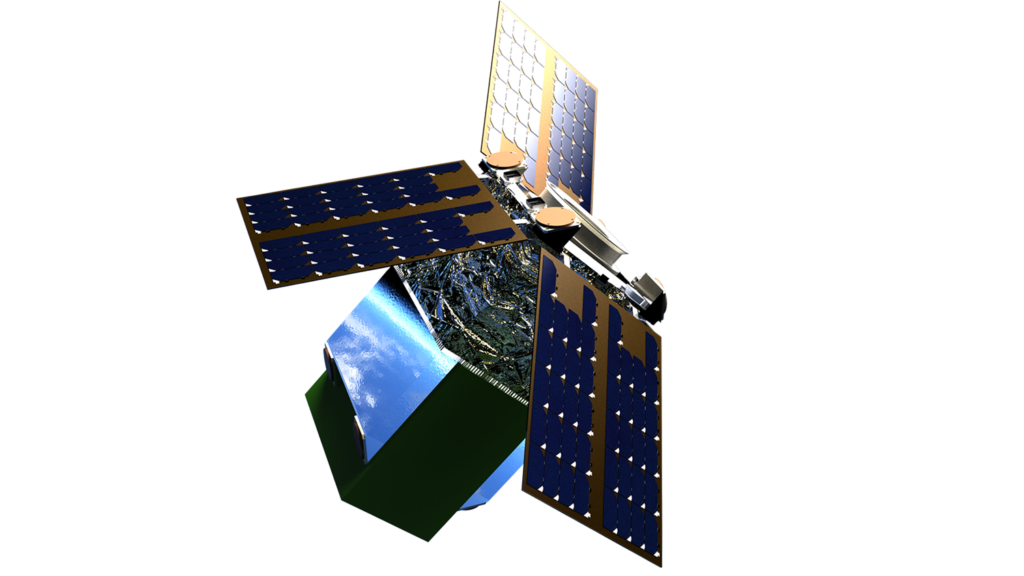

SSTL-MICRO
SSTL (Surrey Satellite Technology)
Highly capable microsatellite platform offering strong payload power, mass capacity and redundancy.
Typed specifications35 values
Discloses 4 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 30 kg min · platform mass, from ~30 kg · datasheet p.2
- Envelope (L×W×H)
- Max W 45 x L 34 x H 34 cm product page
- Data interface
- I2C datasheet p.2 other Cameralink | CAN CAN bus 500 kbps | other MGT lanes (Input & I/O) | RS-422 P2P +2
- Design lifetime
- 7 years platform design life · datasheet p.2
- Orbit
- LEO Low earth orbit · datasheet p.1 SSO reference design orbits 500-800 km, Sun Synchronous
- Max payload mass
- 65 kg max · payload chain (payload plus supporting equipment such as data… · datasheet p.2
- Payload envelope (L × W × H)
- W 45 x L 34 x H 34 cm maximum payload envelope · datasheet p.2
- Power available to payload
- 63 W max · OAP at 100% duty cycle (550km 10.30am SSO LTAN) · datasheet p.2 200 W max · peak
- Unregulated bus for the payload
- 12 V nom. · power option: 12 V unregulated, 12 Ah battery · datasheet p.2 28 V nom. · power option: 28 V unregulated, up to 18 Ah battery
- Onboard storage for payload data
- 240 GB payload data storage · datasheet p.2
- Attitude control
- 3-axis stabilised datasheet p.2
- Pointing accuracy
- 0.1 ° max · control, with star tracker (< 0.1 degrees) · datasheet p.2 2.5 ° max · control, with sun sensors only (< 2.5 degrees)
- Attitude knowledge
- 0.05 ° max · knowledge, with star tracker (< 0.05 degrees) · datasheet p.2 2.5 ° max · knowledge, with sun sensors only (< 2.5 degrees)
- Propulsion
- included product page optional capable propulsion system options: SSTL xenon system; can als…
- Payload data downlink rate
- 2 000 kbps S-band payload downlink, optional upgrade · datasheet p.2 38.4 kbps S-band RF downlink, QPSK (standard) | 140 000 kbps max · X-band payload downlink, optional upgrade (printed 'Up to 140…
- Radio band
- S S-band RF uplink and downlink · datasheet p.2 X X-band payload downlink, optional upgrade
- Subsystems included
- battery 28 V / up to 18 Ah or 12 V / 12 Ah options · datasheet p.2 ADCS dual redundant core avionics and AOCS | GNSS receiver GPS: position 5m, velocity 10cm/s, time 100ns | S-band radio S-band RF uplink 19.2 kbps FSK, downlink 38.4 kbps QPSK
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Platform mass
- From ~30 kg
- Payload mass
- Up to 65 kg for payload chain
- Payload envelope
- Max W 45 x L 34 x H 34 cm
- Payload power
- Up to 63 W OAP at 100% duty cycle, up to 200 W peak
- Design life
- 7 years
- Reference design orbit
- 500-800 km Sun Synchronous
- Attitude control
- 3-axis stabilised; sun sensors knowledge/control <2.5 deg, star tracker knowledge <0.05 deg / control <0.1 deg
- GPS performance
- Position 5 m, Velocity 10 cm/s, Time 100 ns
- Propulsion
- SSTL xenon system; can support small EP systems
- Power options
- 28 V unregulated up to 18 Ah battery; 12 V unregulated 12 Ah battery
- S-band RF uplink
- 19.2 kbps FSK
- S-band RF downlink
- 38.4 kbps QPSK
- Payload data storage
- 240 GBytes
- Max read/write rate
- Up to 10 Gbit/s, interface dependent
- Optional payload downlink
- 2 Mbps S-band, up to 140 Mbps X-band
About
SSTL-MICRO is a highly capable microsatellite platform built on SSTL’s Core Avionics suite, offering strong payload power, mass carrying capability and redundancy. It provides excellent power provision via a high capacity battery enabling continuous payload operation, and is offered as a ‘platform-to-go’ with customer-provided payload or a fully integrated SSTL/off-the-shelf/custom payload. Suitable payloads include Earth imaging, software defined radio, science and atmospheric observation, LEO telecoms, technology demonstration, radiation monitoring and AIS. The platform has dual redundant core avionics and AOCS, a validated system FDIR, and capable propulsion options, and is compatible with Viasat Real Time Earth ground station networks.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
