Optical Ground Stations
General Atomics Synopta GmbH
Stationary and transportable adaptive optical ground stations for laser communication with satellites in GEO/MEO/LEO or deep space.
Key figurescomparable across the catalogue
- Data rate
- 2,000 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- S-aogs telescope size
- > Ø 0.5 m
- T-aogs telescope size
- Ø 0.25 m to Ø 1 m
- Data rate with GEO satellite
- > 2 Gbit/s (uplink and downlink)
- Feeder link to GEO satellite
- > 20 Gbit/s uplink, > 10 Gbit/s downlink, scalable up to Tbit/s
- Supported wavelengths
- e.g. 1064 nm, 1550 nm
- Capabilities
- Bi-directional transmit/receive, quantum cryptography support, autonomous network operation
About

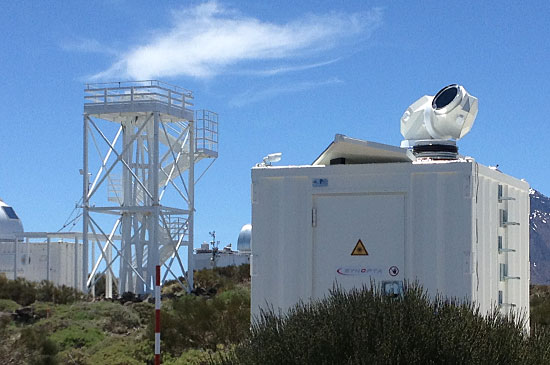

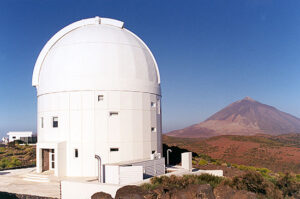

GA-Synopta offers two optical ground station configurations: the Stationary Adaptive Optical Ground Station (S-AOGS) with telescopes larger than 0.5 m, and the Transportable Adaptive Optical Ground Station (T-AOGS) with telescopes from 0.25 m to 1 m. Both support bi-directional transmit/receive operation, an optional feeder-link configuration for very high data rates, and quantum cryptography applications. The modular design supports coherent and incoherent, fiber-coupled and free-space communication systems at multiple wavelengths such as 1064 nm and 1550 nm, with support for autonomous network operation. Transportable stations include automatic line-of-sight calibration for fast re-commissioning, agile pointing and tracking for fast LEO satellite acquisition at low elevation, and standard adaptive optics to compensate for atmospheric turbulence. GA-Synopta also supplies tailored adaptive optics modules to upgrade existing ground stations or astronomical telescopes, scaled to telescope size and user requirements.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
