Beam Pointing Systems (CPA / FPA)
General Atomics Synopta GmbH
Coarse and Fine Pointing Assemblies for beam pointing and stabilization in laser communication terminals and optical ground stations.
Typed specifications23 values
Discloses 4 of 9 fields engineers filter by in this category (category median 2).
- Mass
- 5 kg nom. · without MLI and S/C connector harness · datasheet p.2 5 kg without MLI and S/C connector harness
- Travel range per axis
- 2.5 deg mechanical · description -160–160 deg azimuth pointing range | -20–200 deg elevation pointing range
- Angular resolution (step)
- 0 deg datasheet p.2 0 deg angular resolution, 2 microrad
- Envelope (L×W×H)
- 305 mm x 180 mm, 215 mm height datasheet p.2
- Power consumption
- 6 W max · mean (without heaters) · datasheet p.2 6 W max · mean, without heaters
- Operating temperature
- -25–55 °C at interface plate · datasheet p.2
- Radiation tolerance (TID)
- 100 krad Si, @ 5 mm 4pi Al-equivalent · datasheet p.2
- Design lifetime
- 5 years up to 5 years on ground, 1000 hrs operation · datasheet p.2
- Mechanism type
- two-axis gimbal for optics or sensor dual-mirror coarse pointing assembly for lasercom · datasheet p.1
- Axes
- 2 azimuth and elevation · datasheet p.2
- Connector
- 2 x MDM, 2 x D-Sub, grounding stud datasheet p.2 2 x D-Sub | grounding stud
- Random vibration
- 17.6 g RMS mechanical loads, overall · datasheet p.2
- Slew speed
- 25 °/s min · angular speed, text on page 1 · datasheet p.1 5 °/s min · angular velocity, table | 5 °/s min
- Life, cycles or revolutions
- 54 000 in-orbit operations, on/off cycles, 20 min/cycle · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording

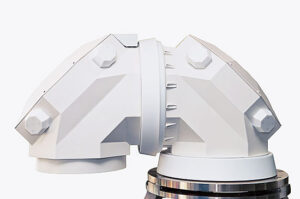

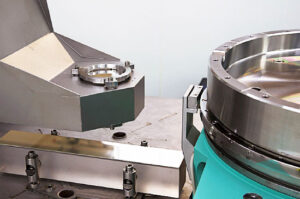

- Cpa 270 max beam diameter

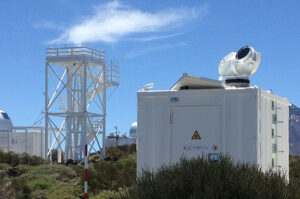

- Ø 270 mm (ground-based, harsh environmental conditions)

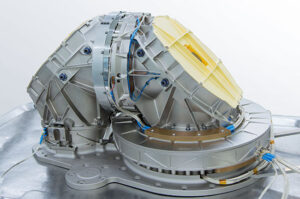

- Cpa 135 max beam diameter
- Ø 135 mm (space-qualified, series production for GEO/LEO LCTs)
- Cpa 70
- Smaller beam diameter variant, space qualification program
- Cpa pointing error
- < 30 µrad
- Cpa induced wavefront error
- typically < 25 nm rms
- Cpa wavelength options
- Visual spectral range; optimized variants at 1064 nm and/or 1550 nm

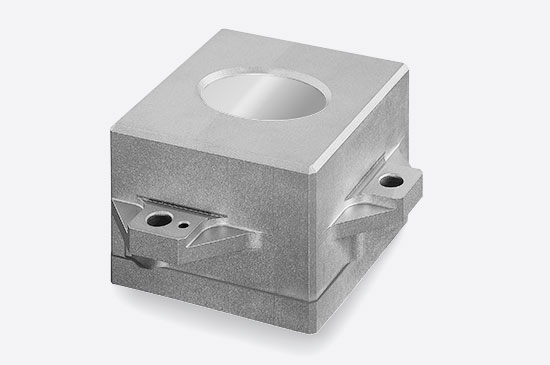

- Fpa angular range
- ± 2.5° (mechanical)
- Fpa pointing dynamics
- typically 1000 Hz
- Fpa useful beam diameter
- ~25 mm
- Fpa pointing error
- < 10 µrad
- Fpa induced wavefront error
- typically < 15 nm rms
- Fpa wavelength options
- Visual spectral range; optimized variants at 1064 nm and/or 1550 nm
About
GA-Synopta’s beam pointing systems comprise Coarse Pointing Assemblies (CPAs), which cover a hemispherical angular pointing range for ground-based and space-qualified applications, and Fine Pointing Assemblies (FPAs), which provide high-dynamics beam stabilization over a smaller mechanical range using two-axis gimballed mirrors. The CPA 135 variant is space-qualified and used in laser communication terminals on GEO and LEO Earth-observation satellites, in series production; the CPA 270 targets ground-based systems operating in harsh environmental conditions. Both families are optimizable for the visual spectral range as well as 1064 nm and 1550 nm wavelengths for laser communication links.
