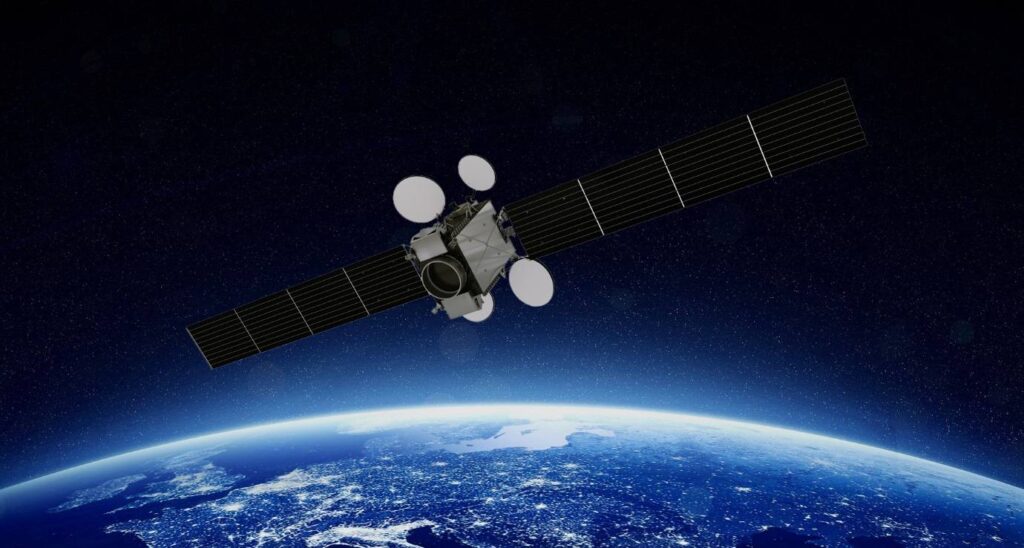

Small Size GEO Satellite Platform (Full-Electric HTS)
Turkish Aerospace Industries (TUSAS/TAI)
Modular full-electric-propulsion geostationary satellite platform (0.5-3 ton class) for flexible telecommunications, HTS and BSS/FSS missions with multi-launch/rideshare compatibility.
Typed specifications18 values
Discloses 3 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 1 000–3 000 kg product page
- Design lifetime
- 15 years datasheet p.9
- Orbit
- GEO Small Size GEO Satellite telecommunication platform · datasheet p.11
- Power available to payload
- 1 500 W ~1.5 kW for rideshare option · datasheet p.19 7 500 W max · payload power 1.5 to 7.5 kW (family range)
- Propulsion
- included Full Electrical Propulsion · datasheet p.18
- Payload data downlink rate
- 50 000 kbps max · achievable HTS throughput, up to, @ ~74 cm to 1.2 m user ante… · datasheet p.19
- Radio band
- other C band (telecommunication payload band supported) · datasheet p.11 Ka telecommunication payload band supported | Ku telecommunication payload band supported | X telecommunication payload band supported | S telecommunication payload band supported +2
- Subsystems included
- propulsion full electrical propulsion for orbit raising, station acquisi… · datasheet p.18
- Max satellite wet mass
- 500 kg rideshare option, ~500 kg launch mass · datasheet p.19 2 000 kg max · launch mass 1,000 to 2,000 kg (p.18: 500 kg to 2000 kg incl. …
- Satellite class
- GEO full electric small size geostationary platform · datasheet p.11
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Orbit
- GEO
- Mass
- ~1000-3000 kg
- Power capacity
- ~7.5 kW
- Design life time
- > 15
- Compatible launchers
- Ariane 6, Falcon 9, Blue Origin, Proton, Soyuz (multi-launch/stack/rideshare)
- Propulsion
- Full electric propulsion system
About
The Small Size GEO Satellite is a telecommunication satellite platform capable of accommodating a wide range of commercial payloads and missions, from TV broadcasting to multimedia applications, internet access, and mobile or fixed services across a wide range of frequency bands (Ka, Ku, X, C, S, L, UHF or other) with encrypted satellite access. Its modular and flexible design, resizable to a 0.5-2 ton system capacity (advertised range extends up to 3 tons), targets commercial telecommunication missions with reduced satellite CAPEX, short integration time and faster delivery, high-throughput system (HTS) capability, and a flexible software-defined payload option. The platform supports full electric propulsion and multi-launch configurations including stacked and rideshare launches on Ariane 6, Falcon 9, Blue Origin, Proton and Soyuz. It is marketed jointly through Turkish Aerospace’s GSATCOM joint-venture company.
Documentation
- SmallGEO_low.pdf PDF source: www.tusas.com ↗
- 17. Brochure - SPACE SYSTEMS (Telecommunication Satellites).pdf PDF source: www.tusas.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
