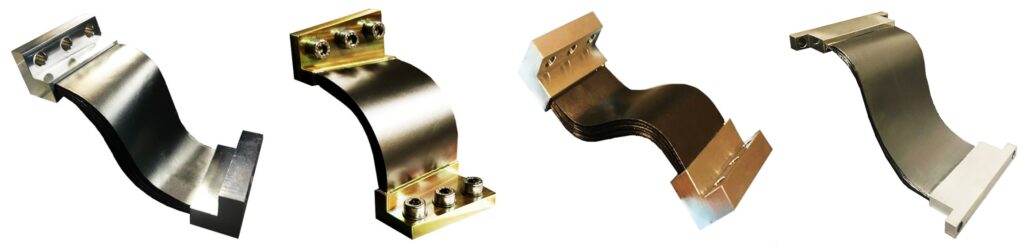

PyroFlex PGS & Graphene Thermal Straps (X-Series)
Technology Applications Inc (TAI)
TAI’s PyroFlex PGS (Pyrolytic Graphite Sheet) product line, also known as the X-Series, is the world’s highest thermal-performance, “ultra-low stiffness” thermal strap. As spacecraft, CubeSat, and instrument requirements have pushed past what metallic cable, foil, or graphite-fiber straps can meet, PyroFlex and GTL straps – made from Pyrolytic Graphite Film (PGF/PGS) sheets or optional Graphene […]
Typed specifications2 values
Discloses 1 of 7 fields engineers filter by in this category (category median 2).
- Lead time
- 8–10 months product page
- Flight heritage
- NASA TRL 9; flown on Orion (Artemis II/III), Blue Origin New Glenn, JHU APL IMAP, HyTI CubeSat, Turion Space DROID 002 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Material
- Pyrolytic Graphite Film/Sheet (PGF/PGS), optional Graphene Layered Foil
- Thermal conductivity
- 1,350 - 2,500 W/(m-K), depending on material, temperature, and sheet thickness
- Performance vs. metals
- 6x the performance of aluminum and 4x the performance of copper at room temperature
- Mass vs. metals
- 28% lighter than aluminum; 77% lighter than copper
- Stiffness
- mN/mm range on all 3 axes when installed in curved/S-configurations (many measurements <=3 mN/mm)
- Standard models
- 4 standard X-Series models, 3 fixed widths, 2 thicknesses, 2 semi-customizable end-fitting types
- Hccf end fittings
- High Conductivity Carbon Fiber fittings: 200 W/(m-K) at 300K (X/Y axis), 129 W/(m-K) cross-plane (Z-axis)
- Encapsulation
- Optional Mylar or kapton sleeves; chromated end fittings for corrosion mitigation (PyroFlex itself needs no sleeve)
- Qualification
- Space-qualified by NASA JPL in 2018: thermal conductance, thermal cycling, stiffness, vibration, PCL/PAC/FPAC particulate and outgassing testing
- Flight heritage / TRL
- NASA TRL 9; flown on Orion (Artemis II/III), Blue Origin New Glenn, JHU APL IMAP, HyTI CubeSat, Turion Space DROID 002
- Typical lead time
- 8-10 weeks
- Operating temperature range
- Qualified 10K - 300K; used in cryogenic/quantum computing applications 40K - 115K
About
TAI’s PyroFlex PGS (Pyrolytic Graphite Sheet) product line, also known as the X-Series, is the world’s highest thermal-performance, “ultra-low stiffness” thermal strap. As spacecraft, CubeSat, and instrument requirements have pushed past what metallic cable, foil, or graphite-fiber straps can meet, PyroFlex and GTL straps – made from Pyrolytic Graphite Film (PGF/PGS) sheets or optional Graphene Layered Foil – deliver 3-4x the performance of equivalent copper or graphite-fiber straps, 10-30% more than competing carbon straps, and are 28% lighter than aluminum and 77% lighter than copper.

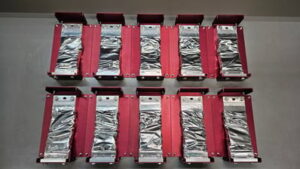

The X-Series standard line comprises 4 models (3 fixed widths, 2 thicknesses, semi-customizable end fittings), while custom PyroFlex/GTL straps allow nearly any width, thickness, and end-fitting material, including TAI’s exclusive High Conductivity Carbon Fiber (HCCF) fittings (200 W/(m-K) at 300K). Material thermal conductivity ranges 1,350-2,500 W/(m-K). Space-qualified by NASA JPL in 2018 (thermal conductance, thermal cycling, stiffness, vibration, and particulate/outgassing testing), PyroFlex straps do not require encapsulation sleeves and have since reached NASA TRL 9, flying on Lockheed Martin’s Artemis II/III Orion DAQ systems, Blue Origin’s New Glenn, Johns Hopkins APL’s IMAP mission, the University of Hawaii’s HyTI CubeSat, and Turion Space’s DROID 002 debris-removal mission.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
