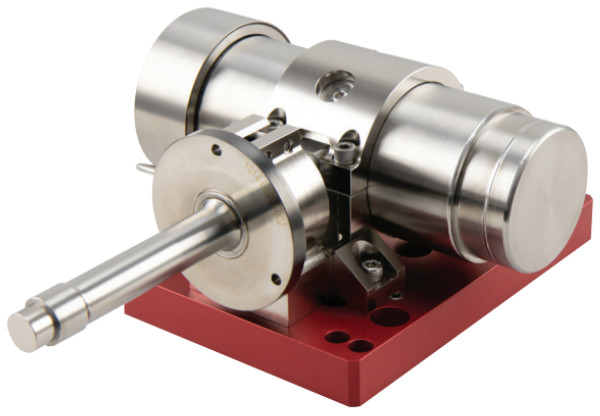

LPT6510 Pulse-tube Cryocooler
Thales Cryogenics
Designed-for-manufacturability pulse-tube cryocooler for 60 K and above, based on the flight-proven MPTC compressor.
Typed specifications13 values
Discloses 4 of 7 fields engineers filter by in this category (category median 1).
- Thermal conductance
- 0.45 W/K typ. · Off-state parasitic loss between 80 K and room temperature · datasheet p.2
- Mass
- 3 200 g max · < 3.2 kg · datasheet p.2
- Power consumption
- 0.45 W typ. · Off-state parasitic loss between 80 K and room temperature · datasheet p.3 60 W max · max input (AC); higher-power versions on request
- Operating temperature
- -30 °C min · datasheet p.2 50 °C max · excl qual margin | -30–50 °C excl. qual margin
- Product type
- cryocooler datasheet p.2
- Cold tip temperature
- 60 K min · designed for 60 K and above · datasheet p.2
- Random vibration
- 15.5 g RMS robust against launch vibration without cold finger launch su… · datasheet p.2 2 g RMS max | 15.5 g RMS max · launch vibration
- Cooler type
- pulse tube datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Max input
- 60 W (AC); higher-power versions on request
- Induced vibration
- <2 N RMS in-axis
- Operating temperature
- -30 to +50 C (excl. qualification margin)
- Off-state parasitic loss
- Typical 0.45 W between 80 K and room temperature
- Mass
- < 3.2 kg
- Mechanical robustness
- Robust against launch vibration (15.5 gRMS) without requiring a cold finger launch support tube; passive launch lock for compressor required only
- Documentation
- Data pack based on ECSS standards, including PMP lists, ABCL, CIDL, qualification evidence
- Configuration
- Integral; split configuration available on request
About
The LPT6510 is a designed-for-manufacturability pulse-tube cryocooler developed by Thales Cryogenics in partnership with Absolut System, targeting both institutional and new-space programs. It is based on the Thales Cryogenics MPTC compressor, developed under ESA funding, combined with the Absolut System SSC80 pulse-tube cold finger. The compressor and cold finger both use an all-welded design, and manufacturing/assembly/integration/test (MAIT) procedures are streamlined to reduce complexity while still adhering to ECSS space standards. The LPT6510 is built as an integral product with a single mechanical and thermal interface, though a split configuration with cold finger and compressor in custom relative positions is available on request. It provides cost-effective cryo-cooling performance for detectors and instruments operating at 60 K and above.
