Magnetorquers
Tensor Tech
Tensor Tech's magnetorquer product line, offered as an integrated MTQ Board or as standalone TensorMTQ rods, providing detumbling and basic pointing for small satellites.
Typed specifications4 values
Discloses 2 of 8 fields engineers filter by in this category (category median 3).
- Mass
- 205 g max · product page
- Envelope (L×W×H)
- 94 x 90 x 19 mm3 product page
- Power consumption
- 1 W max · product page
- Connector
- Molex Pico-Blade product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Magnetic dipole moment
- > 0.2 Am^2 for X/Y axes; > 0.1 Am^2 for Z axis
- Inrush current
- < 0.5 A @ 12 V
- Power consumption
- < 1 W
- Mass
- < 205 g
- Dimensions
- 94 x 90 x 19 mm3
- Supply voltage
- 5 ~ 36 V
- Control interface
- UART or RS-485
- Connector type
- Molex Pico-Blade
About

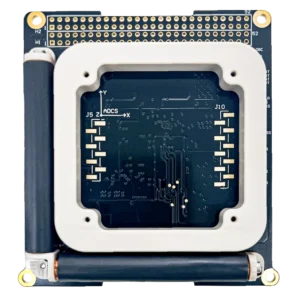

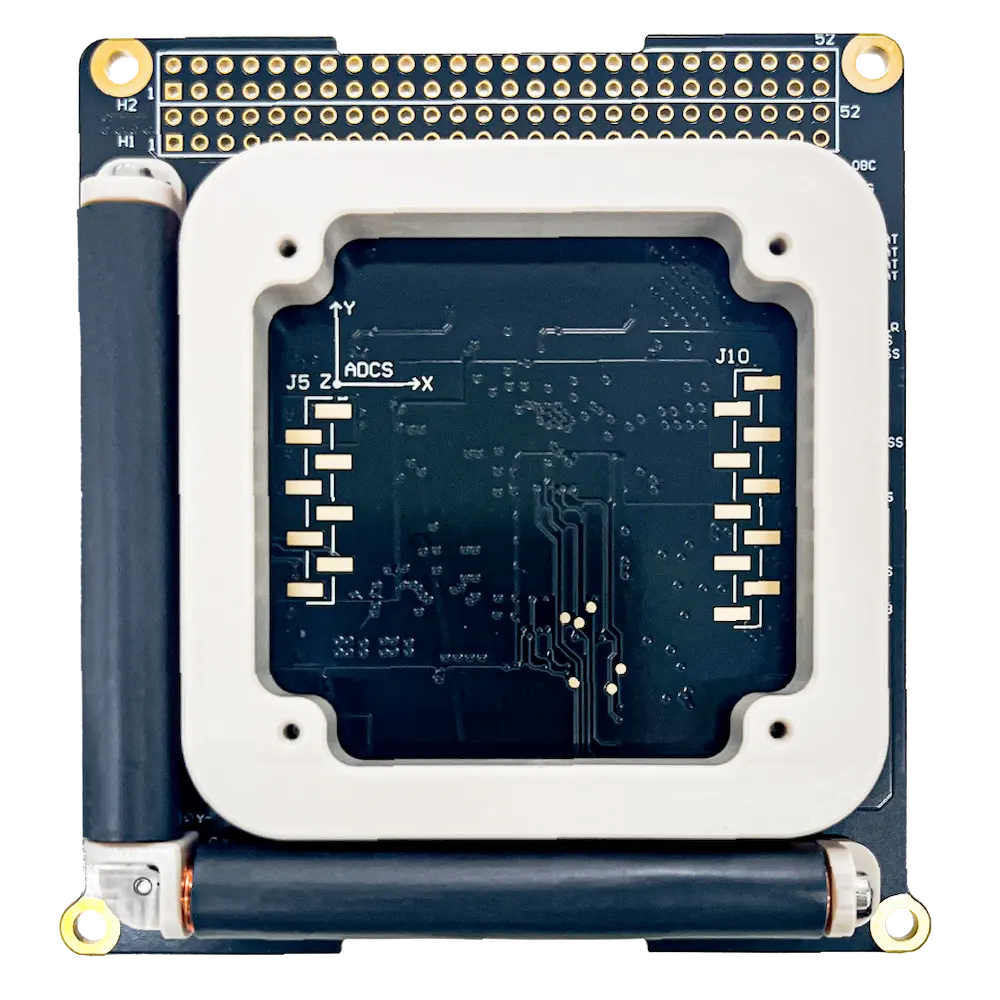

Tensor Tech provides magnetorquers in two forms: integrated boards and standalone rods. The MTQ Board integrates two magnetorquers and one air coil onto a control board with embedded ADCS algorithms, providing detumbling functionality for CubeSat missions. When combined with fine sun sensors, the system enables basic pointing capabilities such as sun-spin and detumbling. The TensorMTQ series is designed for small satellites and is delivered as magnetorquer rods, with or without H-bridge driving circuits. They can be interfaced directly with a flight computer or with a dedicated ADCS board, which can also be provided by Tensor Tech. Product features include optional driving circuitries and digital interfaces enabled by the control board; manufacturing in an ISO 7 cleanroom, imposing strict quality control and a scalable production plan from small quantity up to mass production; and analysis of magnetic distortion and leakage enabled by COMSOL Multiphysics®. A customization and analysis service is offered, providing customized magnetorquer solutions that balance size, power consumption, and magnetic dipole moment for mission constraints. Custom designs are available upon request.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
