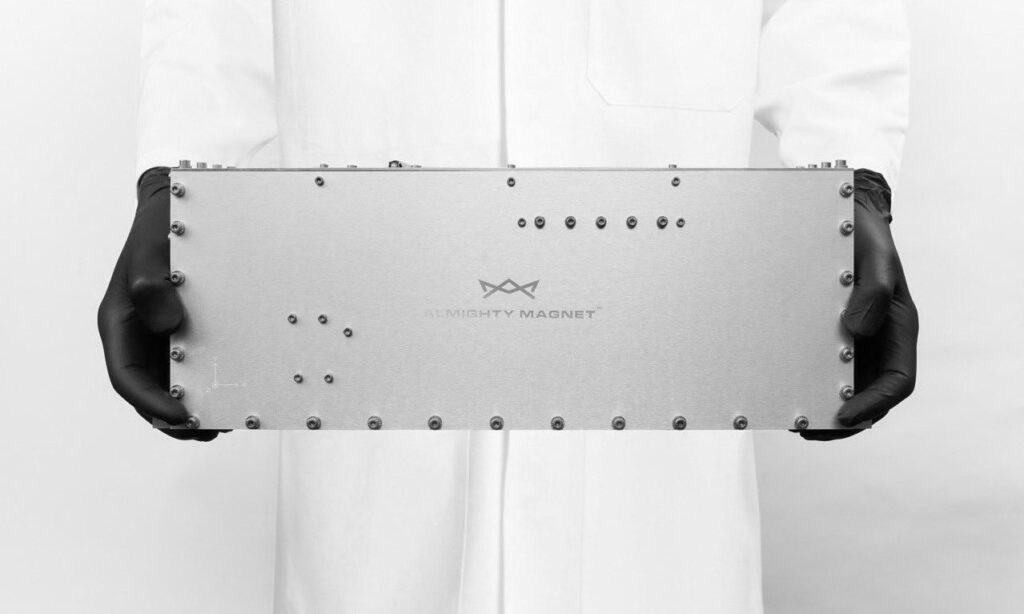

Zenno Astronautics Z01 Supertorquer
Zenno Astronautics
Single-axis, ultra-high-dipole superconducting magnetic torquer delivering fuel-free attitude control authority for MEO/GEO spacecraft.
Typed specifications17 values
Discloses 3 of 8 fields engineers filter by in this category (category median 3).
- Magnetic dipole moment
- 2 000 A·m² product page 4 000 A·m² | 8 000 A·m²
- Mass
- 3 800 g product page 7 500 g | 15 000 g | 15 000 g | 8 000 g +2
- Envelope (L×W×H)
- 150 x 260 x 295 mm product page 150 x 300 x 360 mm | 160 x 400 x 440 mm
- Power consumption
- 40 W product page 45 W | 50 W
- Flight heritage
- Since 2023 (Numero Uno, Vincent Freeman, Almighty Magnet missions) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier33 lines, in the manufacturer's own wording
- Configuration
- Single axis
- Magnetic dipole moment - config a (Am2)
- 2,000
- Magnetic dipole moment - config b (Am2)
- 4,000
- Magnetic dipole moment - config c (Am2)
- 8,000
- Max torque, peak - config a (mNm)
- 1,000
- Max torque, peak - config b (mNm)
- 2,000
- Max torque, peak - config c (mNm)
- 4,000
- Max torque, continuous - config a (mNm)
- 75
- Max torque, continuous - config b (mNm)
- 150
- Max torque, continuous - config c (mNm)
- 300
- Total system mass @ 550km SSO - config a
- 3.8 kg
- Total system mass @ 550km SSO - config b
- 7.5 kg
- Total system mass @ 550km SSO - config c
- 15 kg
- Total system mass @ MEO - config a
- 15 kg
- Total system mass @ MEO - config b
- 30 kg
- Total system mass @ MEO - config c
- 60 kg
- Total system mass @ GEO - config a
- 8 kg
- Total system mass @ GEO - config b
- 10 kg
- Total system mass @ GEO - config c
- 16 kg
- Power, continuous - config a
- 40 W
- Power, continuous - config b
- 45 W
- Power, continuous - config c
- 50 W
- Outside envelope h x w x l - config a
- 150 x 260 x 295 mm
- Outside envelope h x w x l - config b
- 150 x 300 x 360 mm
- Outside envelope h x w x l - config c
- 160 x 400 x 440 mm
- Radiation tolerance
- 50 krad TID, 37 MeV cm2/mg
- Available torque @ 8,000 am2 (altitude dependent)
- 184-344 mN.m
- Available torque @ 4,000 am2 (altitude dependent)
- 79-172 mN.m
- Available torque @ 2,000 am2 (altitude dependent)
- 46-86 mN.m
- Mounting
- 8 x #10 bolts
- Command-and-data interfaces
- RS-422, RS-485, Ethernet, CANBUS
- Custom configurations
- >10,000 Am2 available upon request
- Flight heritage
- Since 2023 (Numero Uno, Vincent Freeman, Almighty Magnet missions)
About
Single-axis, ultra-high-dipole superconducting magnetic torquer delivering fuel-free attitude control authority for MEO/GEO spacecraft.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
