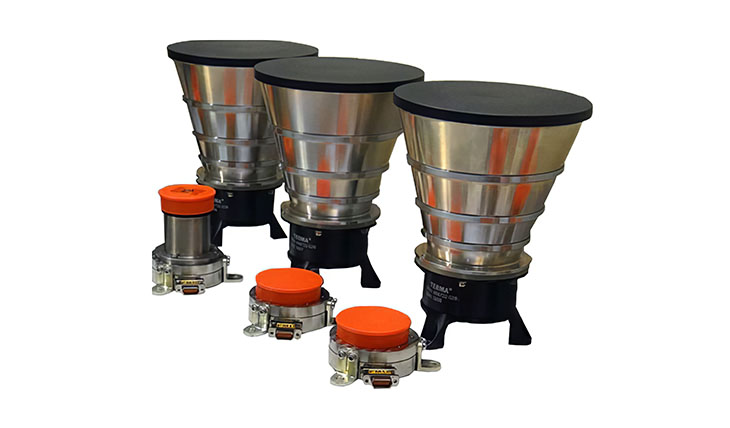

T1 Star Tracker
Terma
The Terma T1 star tracker is a high-heritage, radiation-hardened star tracker qualified for the demanding environment of GEO missions including electrical orbit raising through the Van Allen belts. It is based on the Faintstar-2 1024×1024 CMOS APS (Active Pixel Sensor), developed under ESA contract as a successor to the LCMS sensor. The T1 achieves approximately […]
Typed specifications6 values
Discloses 3 of 12 fields engineers filter by in this category (category median 8).
- Mass
- 1 530 g as published, mode unspecified · vendor page (catalogue a
- Envelope (L×W×H)
- 100 × 100 × 40 mm product page
- Field of view
- 20 ° product page
- Power consumption
- 3.25 W as published, mode unspecified · vendor page (catalogue a
- Operating temperature
- -40–30 °C as published, mode unspecified · vendor page (catalogue a
- Radiation tolerance (TID)
- 15 krad as published, mode unspecified · vendor page (catalogue a
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Total system mass
- 1.53 kg (with electronic unit)
- Electronic unit dimensions
- 100 × 100 × 40 mm
- Power (average)
- 3.25 W from 20–36 V supply
- Sensor
- Faintstar-2 CMOS APS 1024×1024 (ESA-developed)
- Field of view
- 20°
- Pointing accuracy
- ~3.6 arcsec (1σ) pitch/yaw
- Update rate
- up to 10 Hz
- Interface
- SpaceWire (80 MHz)
- Baffle variants
- 30° and 45°
- Radiation qualification
- 15-year GEO; SAA/SEU tolerant; Class 1/2 components
- Operating temperature
- -40°C to +30°C; survival to +70°C
- TRL
- 9 (GEO flight-proven)
About
The Terma T1 star tracker is a high-heritage, radiation-hardened star tracker qualified for the demanding environment of GEO missions including electrical orbit raising through the Van Allen belts. It is based on the Faintstar-2 1024×1024 CMOS APS (Active Pixel Sensor), developed under ESA contract as a successor to the LCMS sensor. The T1 achieves approximately 3.6 arcsec (1σ) accuracy in pitch and yaw with significantly better roll performance, and delivers attitude at up to 10 Hz via SpaceWire — enabling direct connection of the optical head to the spacecraft OBC without a separate electronics unit for smaller platforms. The full system including electronic unit weighs 1.53 kg and draws 3.25 W average from a 20–36 V supply. Class 1 and 2 components enable qualification for 15-year GEO lifetime with tolerance to worst-case South Atlantic Anomaly proton flux. The T1 is available with 30° or 45° baffle options. Design heritage connects to the GEO-proven HE-5AS platform and has been selected for missions requiring high-radiation-environment attitude determination reliability.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
