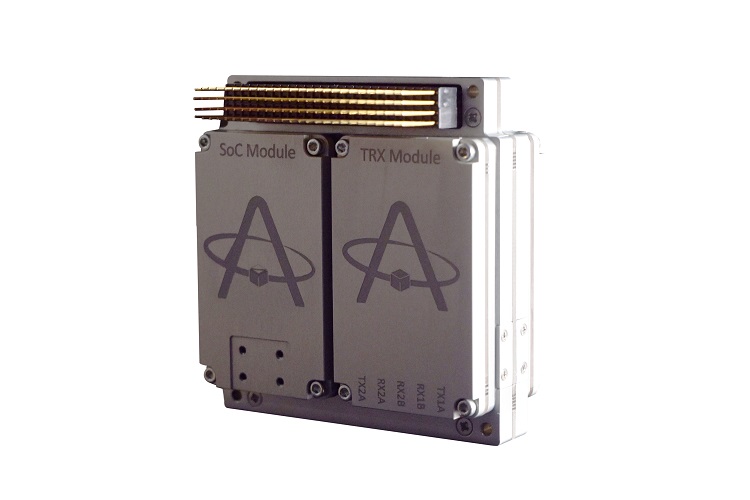

TREVO
Alén Space
TREVO is a modular high-performance Software Defined Radio (SDR) platform designed for small satellites, integrating the radio chain and processing units into a single subsystem.
Typed specifications61 values
Discloses 9 of 13 fields engineers filter by in this category (category median 5).
- Link protocols and waveforms
- AIS closed payload option · datasheet p.2 ADS-B closed payload option | DVB-S2 closed payload option
- Frequency range
- 70 MHz min · datasheet p.2 70 MHz min · 70 MHz - 6 GHz | 70 MHz min · transceiver | 6 000 MHz max | 6 000 MHz max · 70 MHz - 6 GHz +3
- Envelope (L×W×H)
- PC/104 form factor datasheet p.2
- Power consumption
- 0.775 W Nominal power · datasheet p.3 1.05 W Full duplex (RX and TX) | 1.5 W Maximum | 8 W SoC High load | 3.6 W SoC Medium load +7
- Data interface
- CAN datasheet p.3 Ethernet 1000 Base-T for SoCs | JTAG for MCU and SoCs | USB FTDI x 4 UARTs | CAN housekeeping +10
- Lead time
- 16 months product page
- Function
- SDR platform (user waveforms) datasheet p.1
- Link use
- signal reception (AIS / ADS-B / spectrum) closed payload option: AIS, ADS-B · datasheet p.2 other closed payload option: feeder link
- Frequency band
- UHF pluggable RF front end · datasheet p.1 UHF RX/TX | VHF pluggable RF front end | VHF RX/TX | S pluggable RF front end +1
- Instantaneous bandwidth
- 56 000 kHz channel bandwidth · datasheet p.1
- TX chains
- 2 per transceiver; up to 3 transceivers · datasheet p.2
- RX chains
- 3 per transceiver; up to 3 transceivers · datasheet p.2
- Board format
- PC/104 datasheet p.2
- Waveform development
- GNU Radio GNURadio support · datasheet p.2 other SoapySDR driver
- Connector
- Umbilical connector for ground testing; 2x Micro SD card slots datasheet p.2
- Satellite class
- microsat 10-100 kg Microsat · datasheet p.1 nanosat 1-10 kg Nanosat
- TX/RX chains (as printed)
- 2 x TX and 3 x RX channels per transceiver, 2 simultaneous channels at RX and TX; up to 3 transceivers datasheet p.2
- FPGA / SoC
- Zynq UltraScale+ MPSoCs, compatible with CG and EG family (up to ZU5EG); up to 2 SoCs datasheet p.2
- Duplex
- full Full duplex (RX and TX) · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Socs based on
- Zynq UltraScale+ family
- Frequency
- 70 MHz – 6 GHz
- Channel bandwidth
- 56 MHz
- External modules
- Up to 4
- Configuration options
- 2 x SoC and 2 x TRX
- Configuration options (rx)
- 1 x SoC and 1 x TRX
- RF frontends
- UHF, VHF, S-band
- Lead time
- 16 weeks
About
TREVO is a modular high-performance Software Defined Radio (SDR) platform specifically engineered for small satellites, including Nanosat and Microsat. Its motherboard is designed to accommodate varying numbers of System-on-Chip (SoC) and transceivers, consolidating the entire radio chain and processing units into a single, integrated subsystem. This design enables TREVO to support the most demanding satellite software applications, serving as a core platform for developing and building complex space payloads. Key features include SoCs based on the Zynq UltraScale+ family, offering multi-core processing capabilities and FPGA flexibility. It operates across a wide frequency range of 70 MHz to 6 GHz with a 56 MHz channel bandwidth. The platform supports up to 4 external modules and offers configurations such as 2 x SoC and 2 x TRX, or 1 x SoC and 1 x TRX, with other options available upon request. Its modularity allows for the plugging of different RF FrontEnds, including UHF, VHF, and S-band, providing flexibility for various applications. Multiple applications can be configured on the same board.
