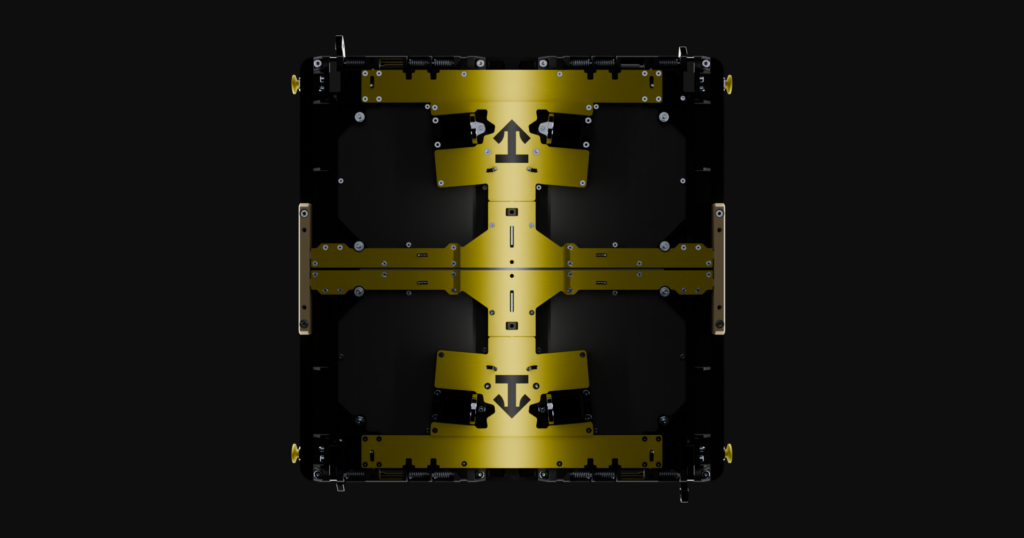

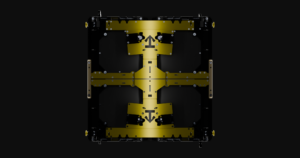

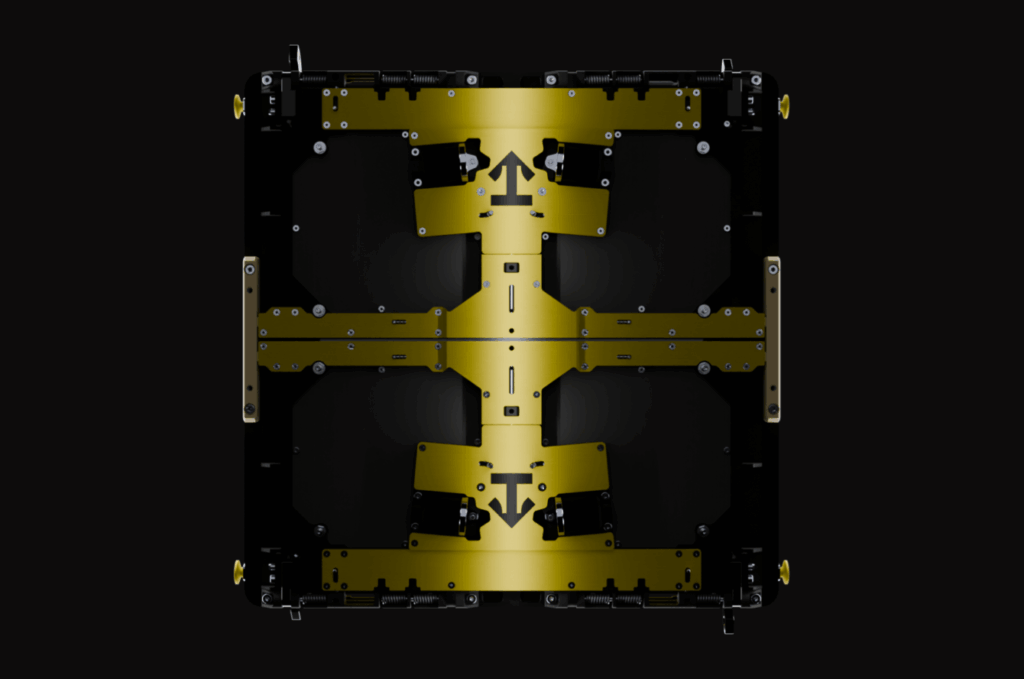

CAVE Deployer
TRL Space
The CAVE Deployer is a CubeSat deployment system designed for 6U to 16U CubeSats, featuring a redundant HDRM system, deployment telemetry, and customizable rail lengths.
Typed specifications6 values
Discloses 1 of 17 fields engineers filter by in this category (category median 3).
- Capacity
- 28 U product page 6–16 U
- Envelope (L×W×H)
- 6–16 U product page 28 mm
- Lead time
- 18 months product page
- Indicative price
- 45 900 EUR 1x16U · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Deploy cubesats sizes
- 6–16 U
- Protrusions size
- 28 mm
- Maximum lead times
- 18 Weeks
- Price starting at
- 44.9K EUR
- Customizable rail length
- 366 mm to 454 mm
- Standard lead time
- up to 18 weeks from receipt of the order
- Reduced lead time
- as little as 4 weeks for delivery (once final configuration is confirmed)
- Prices for a single deployer (1x16U)
- start at €44,990
- Prices for a single deployer (2x8U)
- start at €49,990
About

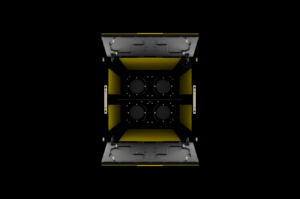

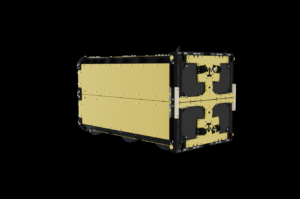

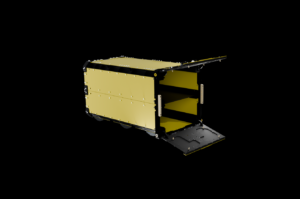

The CAVE Deployer is a CubeSat deployment system capable of deploying CubeSats ranging from 6U to 16U in size, with support for protrusions up to 28 mm. It boasts a low price point and short lead times, with standard delivery up to 18 weeks, which can be reduced to as little as 4 weeks for confirmed configurations. A core feature is its customizable rail length, allowing integration of CubeSats with custom lengths from 366 mm to 454 mm without requiring deployer redesign. The deployer also offers maximum access to the CubeSat during integration through removable side panels and an open, service-friendly layout. Safety and reliability are enhanced by a fully redundant, in-house developed HDRM (Hold Down and Release Mechanism) system based on an electromagnet-driven concept. Each CAVE Deployer includes integrated deployment telemetry switches to confirm door position and CubeSat release status, providing real-time confirmation of successful payload deployment to launch providers and mission teams. The starting price includes the deployer, harness according to launch vehicle specifications, engineering support, and a transportation case.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
