TSD offers a range of payload electronics, including image data handling and storage units, high-data-rate image compression modules, data processing units, and control and data acquisition systems for various space missions.
Key figurescomparable across the catalogue
- Data rate
- 6.3 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Pilot-d cdiu mission
- Luna-25 (Luna-Glob) mission
- Pilot-d cdiu functionality
- Image Data Handling and Storage Unit, interface unit, communication I/Fs, video data storage and processing, power conditioning and distribution
- Multi/hyperspectral module mission
- PRISMA Hyperspectral Mission
- Multi/hyperspectral module component
- PRISMA Payload Main Electronics Unit (SDAC)
- Multi/hyperspectral module configuration
- Upper board (nominal), lower board (redundant)
- Multi/hyperspectral module input imagers
- SWIR, VNIR, PAN
- Multi/hyperspectral module encoding
- CCSDS and Reed Solomon
- Multi/hyperspectral module compression
- Configurable lossless and lossy (near lossless)
- Dpu for solar orbiter swa instrument redundancy
- Full redundant
- Dpu for solar orbiter swa instrument radiation hardness
- Rad-hard
- Dpu for solar orbiter swa instrument functionality
- Power and data communication interfaces, real-time telecommands, telemetry, data storage, data compression
- Hsc-cb for iss eml facility type
- PC-104+ module
- Hsc-cb for iss eml facility compression method
- Wavelet based hardware compression
- Hsc-cb for iss eml facility performance increase
- Factor 5
- Hsc-cb for iss eml facility compression levels
- Lossless up to 100
- Hsc-cb for iss eml facility configurability
- Compression factors and image dimensions
- Hydra IP core & hw platform compression modes
- Lossless/near-lossless/lossy loss-less
- Hydra IP core & hw platform algorithm basis
- Extension of CCSDS 123 with quantization and modified entropy coder
- Hydra IP core & hw platform hw platform FPGA
- Xilinx Virtex XQR5XVFX130 (industrial grade rad-hard)
- Pdpm for very small space platform FPGA
- Virtex5QV
- Pdpm for very small space platform controller
- LEON3 IP core
- Pdpm for very small space platform storage
- SATA controller for SATA solid state devices
- Pdpm for very small space platform acceleration
- HW acceleration for compression and data processing algorithms
- Pdpm for very small space platform input data rate
- Up to 6.3 Gbits/s
- Pdpm for very small space platform output spacewire links
- 2 links up to 100 Mbits/s
- Pdpm for very small space platform output multigbit link
- 1 link (compatible with SpaceFibre) up to 2.5 Gbits/s
- Cwicom validation & evaluation platform power input
- 220 V AC
- Cwicom validation & evaluation platform video input
- CameraLink or Parallel LVDS
- Cwicom validation & evaluation platform control/config port
- Gigabit Ethernet
- Cwicom validation & evaluation platform debug line
- RS232 Debug UART
- Cwicom validation & evaluation platform storage
- Compact-flash Card connector
- Cwicom validation & evaluation platform interface
- SpaceWire
- Cwicom validation & evaluation platform FPGA
- Virtex-5

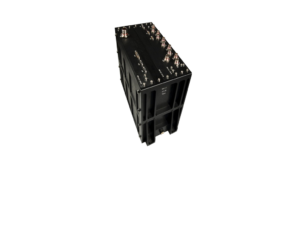

- Dhu for foton satellite payload missions
- FOTON12, M1, M2, M3
- Dhu for foton satellite payload functionality
- Real-time management of telecommands, telemetry, digital video

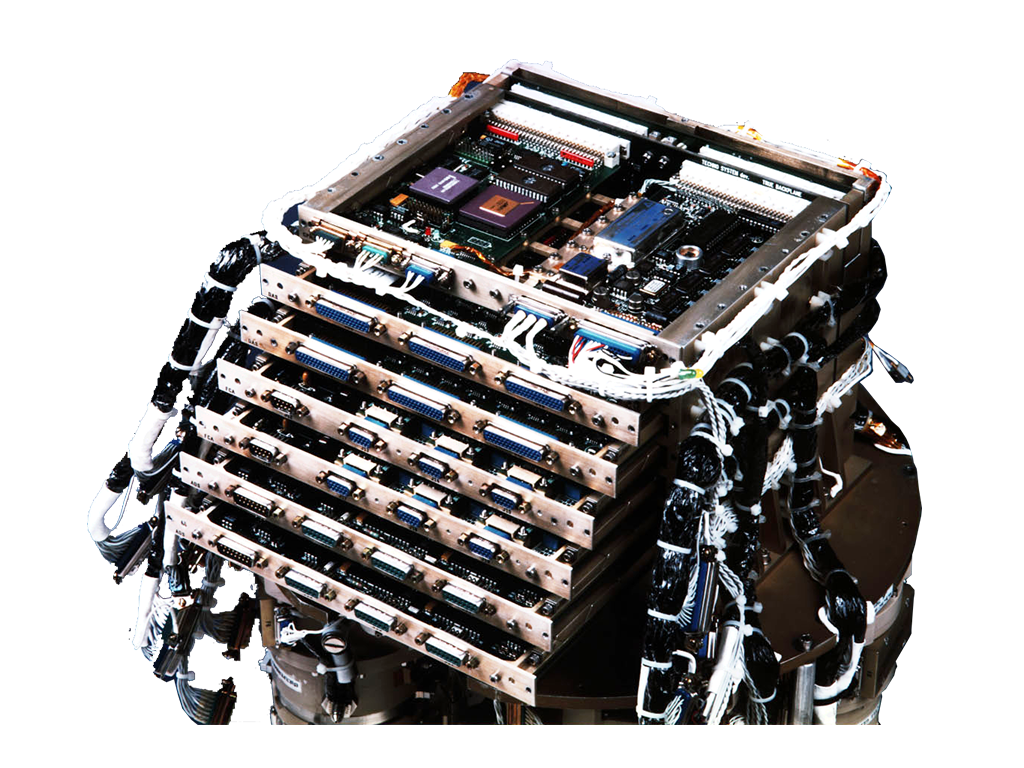

- Cdas components
- Experiment Computers, Real time data processing subunits, Data Acquisition subunits, Actuator Drivers subunits, Battery subunits, Power conditioning and distribution subunits, Dedicated experiment and data management interfaces
- Cdas data acquisition sensors
- Temperature, pressure, extensimeters, accelerometers, strain gauges, force sensors
- Cdas actuator drivers
- Stepper motors, DC motors, brushless motors, injection device, heaters, peltiers
About
This page details several payload electronics products developed by TSD for various space applications. These include an Image Data Handling and Storage Unit (CDIU) for the PILOT-D demonstrator on the Luna-25 (Luna-Glob) mission, which acts as an interface unit, handles communication, video data storage and processing, and power conditioning/distribution. Another product is a Multi/Hyperspectral High Data Rate Image Compression Module, developed for the PRISMA Hyperspectral Mission, capable of acquiring, reassembling, preprocessing, compressing (lossless and lossy), and encoding image data from SWIR, VNIR, and PAN imagers. TSD also developed a fully redundant, rad-hard Data Processing Unit (DPU) for the Solar Orbiter’s SWA instrument, providing power and data communication interfaces, handling telecommands, telemetry, storage, and compression. For the ISS EML Facility, TSD designed a High Speed Camera Compression Board (HSC-CB), a PC-104+ module that applies wavelet-based hardware compression to increase the performance of the digital video chain by a factor of 5. The HYDRA Hyperspectral Compression IP core & HW Platform, developed under ESA contract, is an FPGA-based compression algorithm for multispectral/hyperspectral images with lossless/near-lossless/lossy modes, and a corresponding rad-hard HW platform (HPHC). A Payload Data Processing Module (PDPM) for very small space platforms, based on a Virtex5QV FPGA, offers high compactness, LEON3 IP core, SATA controller, HW acceleration, and SpaceWire/MultiGbit links. The CWICOM Validation & Evaluation Platform provides resources to prototype and test CWICOM ASIC samples. Finally, TSD developed a Data Handling Unit (DHU) for Foton Satellite Payloads, providing real-time management of telecommands, telemetry, and digital video, and offers dedicated Control & Data Acquisition Systems (CDAS) for scientific payloads, including experiment computers, real-time data processing, data acquisition for various sensors, actuator drivers, battery subunits, and power conditioning/distribution.
