Ground Segment Products (EGSE, SCOE, Command & Telemetry Ground Units, TSD I/F Bridge)
Tsd-space
TSD offers a suite of ground segment products including Electrical Ground Support Equipment (EGSE), Special Check-Out Equipment (SCOE), Command & Telemetry Ground Units, and the TSD I/F Bridge for testing and communication with space-qualified hardware.
Technical specifications
- Egse for the payload of
- PRISMA Hyper-Spectral Earth Observation Satellite
- Scoes for
- SENTINEL-3 Program (OLCI Camera SCOE, OLCI Instrument SCOE and MIL-STD-1553B SCOE)
- Egse for the
- ISS EML Digital Video System
- Scoe for acs i/f and hk boards of
- SAR-LUPE Satellite Management Unit
- Scoe for acs i/f and hk boards of (2)
- ARGO Satellite Management Unit
- Ground support & test equipment for the payload data handling system of
- FOTON 12, M1, M2 and M3 satellites
- Egse for
- VIRTIS Instrument (Rosetta Spacecraft and Venus Express)
- Scoe for the
- USV On-board Software Integration and Validation
- Ground support & test equipment for experimental modules flown on board
- TEXUS 34, MINITEXUS 5, MAXUS 5, MASER 6,8,10,11,12,13 Sounding Rockets
- Transportable ground station for a
- Stratospheric Balloon Telecommand System

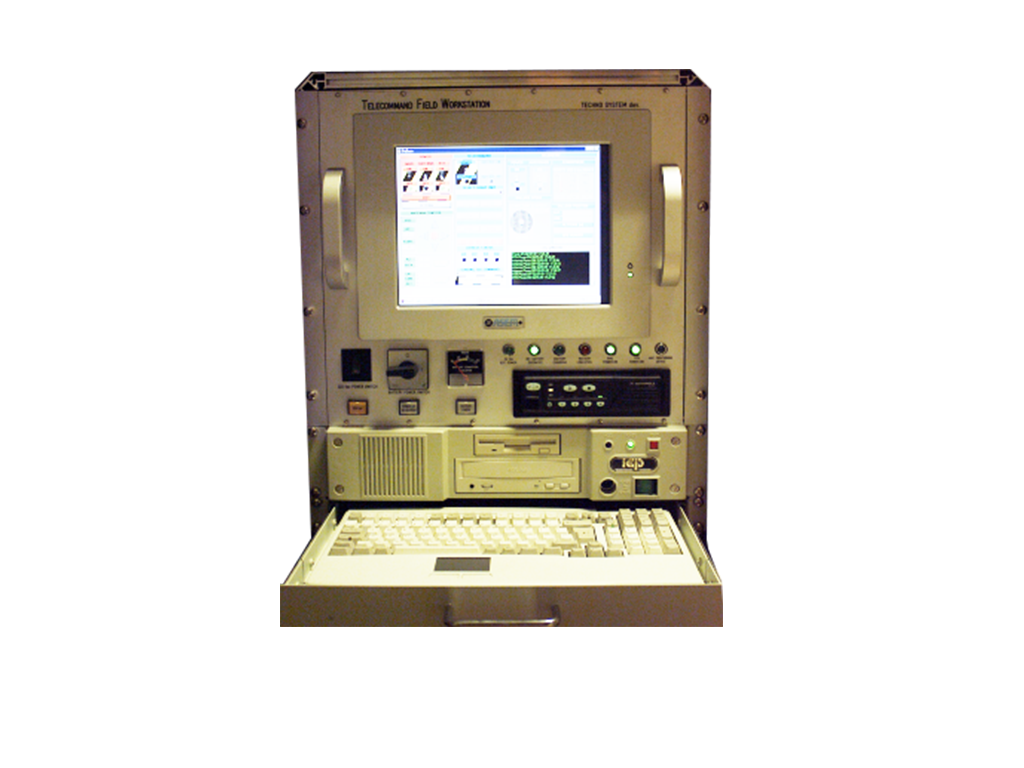

- Command & telemetry ground units architecture
- PC-based with Windows OS
- Command & telemetry ground units hardware
- FPGA-based PCI Board for H/W coding/decoding algorithms execution
- Command & telemetry ground units hmi
- User-friendly and Intuitive
- Command & telemetry ground units configuration
- Wide Range of parameters and status
- Command & telemetry ground units integration
- High Integration with enhanced performances, upgradeability and flexibility
- Command & telemetry ground units i/f to modulator
- RS422 Data + Clock
- Command & telemetry ground units i/f to bit synchronizer
- RS422 Data + Clock
- Tm gse functionalities
- Viterbi Decoder, NRZ-M to NRZ-L Decoder, Pseudo De-Randomizer, Reed Solomon Decoder, Frame Synchronizer, CCSDS FRAME Decoder and CCSDS TM source packets Reassembly
- Tc gse functionalities
- CCSDS TC Encoding, COP-1 Procedures, TC Authentication Layer
- Tsd i/f bridge purpose
- General purpose communication device to be used with flight units to allow complete testing during the different phases (development, pre-flight, post-flight)
- Tsd i/f bridge function
- Implements a bridge between on-board I/Fs (such as SpaceWire, SerDes, etc.) and standard Ethernet
- Tsd i/f bridge architecture
- Open architecture easily customizable with every type of I/F circuits (thanks to internal expansion boards)
- Tsd i/f bridge environment
- Fully integrated solution, user friendly environment with High level MMI
- Tsd i/f bridge form factor
- Standard 2U unit desktop mount (optionally 19” rack-mountable)
- Tsd i/f bridge cooling
- Air cooling design
- Tsd i/f bridge power input
- Standard 230Vac
- Tsd i/f bridge customization
- Easily customized for different on-board I/Fs
- Tsd i/f bridge main board
- Proprietary, designed around a state-of-art FPGA with embedded microcontroller
- Tsd i/f bridge baseline interfaces (on main card)
- Ethernet, UART, SpaceWire, CameraLink
- Tsd i/f bridge interface controllers
- Embedded in FPGA to improve system integration
- Tsd i/f bridge custom interfaces
- Implemented on mezzanine card, expansion connectors directly routed to main board FPGA
About
TSD provides a comprehensive range of ground segment solutions, including EGSE (Electrical Ground Support Equipment) and SCOE (Special Check-Out Equipment), developed through extensive experience in national and international space programs. These systems are designed with specific architectures to test flight items in a representative hardware environment, utilizing both commercial and custom components to accurately simulate flight operative conditions regarding timing, bit rate, and parallelism. Notable heritage includes EGSE for the PRISMA Hyper-Spectral Earth Observation Satellite payload, SCOEs for the SENTINEL-3 Program (OLCI Camera, OLCI Instrument, MIL-STD-1553B), EGSE for the ISS EML Digital Video System, SCOEs for ACS I/F and HK boards of SAR-LUPE and ARGO satellites, and Ground Support & Test Equipment for various FOTON and sounding rocket experimental modules, as well as a transportable ground station for a stratospheric balloon telecommand system.
Command & Telemetry Ground Units are PC-based with Windows OS, featuring an FPGA-based PCI Board for hardware coding/decoding algorithms. They offer a user-friendly HMI, wide configuration parameters, high integration, and enhanced performance, upgradeability, and flexibility. Interfaces include RS422 Data + Clock to Modulator and Bit Synchronizer. TM GSE functionalities encompass Viterbi Decoder, NRZ-M to NRZ-L Decoder, Pseudo De-Randomizer, Reed Solomon Decoder, Frame Synchronizer, CCSDS FRAME Decoder, and CCSDS TM source packets Reassembly. TC GSE functionalities include CCSDS TC Encoding, COP-1 Procedures, and TC Authentication Layer.
The TSD I/F Bridge is a general-purpose communication device for complete testing of flight units across development, pre-flight, and post-flight phases. It bridges on-board interfaces (e.g., SpaceWire, SerDes) to standard Ethernet. Key features include an open architecture customizable with various I/F circuits via internal expansion boards, a fully integrated solution with a user-friendly MMI, a standard 2U unit for desktop mount (optional 19” rack-mountable), air cooling, and a standard 230Vac power input. The bridge is based on a proprietary main board with a state-of-the-art FPGA and embedded microcontroller. Baseline interfaces like Ethernet, UART, SpaceWire, and CameraLink are on the main card, with controllers embedded in the FPGA for improved integration. Custom interfaces can be implemented on mezzanine cards, with expansion connectors routed directly to the main board FPGA.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
