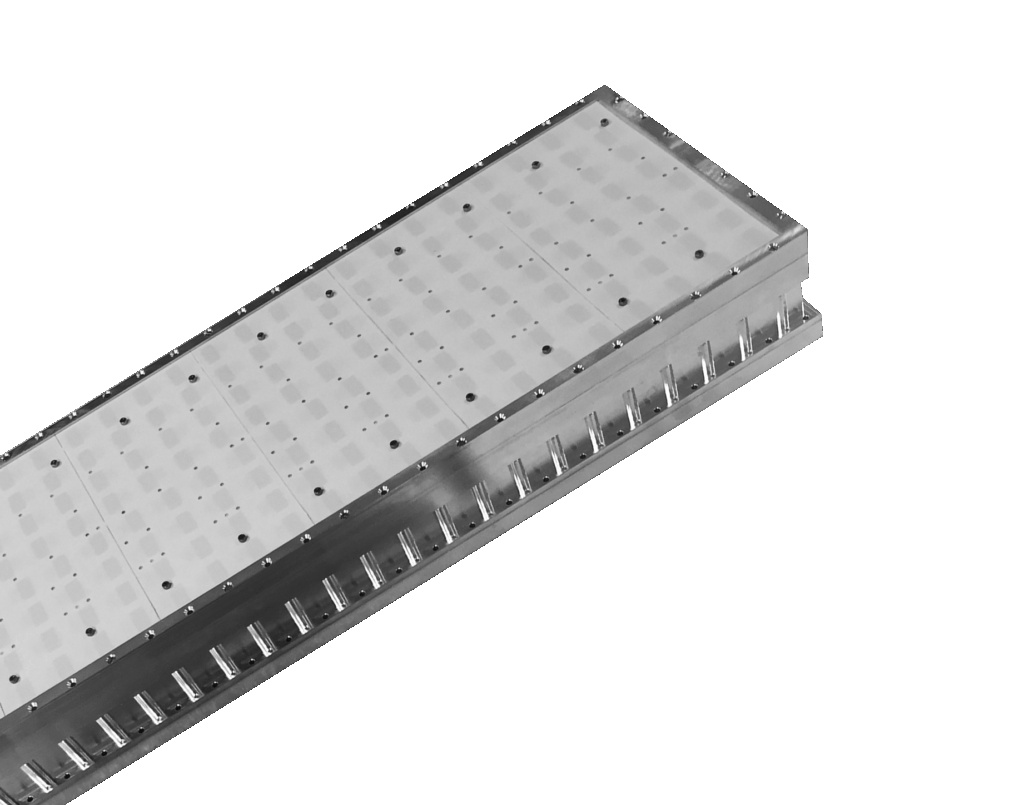

MEGA Multi-Beam Electronic Antenna (MEOLUT Phased Array)
TTI Norte
Electronically-steered, no-moving-parts L-band phased array antenna for simultaneous multi-satellite Galileo/GLONASS/GPS Search & Rescue (MEOLUT) tracking.
Typed specifications8 values
Discloses 1 of 13 fields engineers filter by in this category (category median 2).
- Mass
- 100 kg max · datasheet p.2
- Envelope (L×W×H)
- Size 1.6 x 1.6 m datasheet p.2
- Antenna type
- phased array datasheet p.1 flat panel array Flat Antenna Array, planar antenna, 8 x 8 antenna elements
- Antenna gain
- 24 dBi datasheet p.2 13 dBi min · min full coverage
- Beam steering
- electronic (phased array) multi-beam electronic tracking, zero moving parts, no pointin… · datasheet p.1
- Scan range
- 70 ° datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency band
- L-band
- Antenna type
- Planar phased array, no moving parts
- Simultaneous signals
- Up to 6
- Compatible constellations
- Galileo, GLONASS, GPS
- Beam steering
- Electronic, instantaneous
- Maintenance
- Self-calibrating, graceful degradation on element failure
- Dish replacement ratio
- Replaces up to 4 traditional MEOLUT dishes
About
The MEGA (Meolut Multi-beam Electronic Antenna) phased array antenna predicts the presence and pointing direction of beams from the array’s feeding complex vector, enabling simultaneous multi-satellite tracking without mechanical re-positioning. It is compatible with Search & Rescue (SAR) systems operating over GNSS constellations including Galileo, GLONASS and GPS, and can receive and process up to 6 signals simultaneously, improving throughput and localization accuracy while providing built-in redundancy. MEGA replaces up to 4 traditional MEOLUT dishes with a single electronically-steered planar array, offering instantaneous beam steering, self-calibration (no re-calibration needed), graceful degradation if individual elements fail, and a reduced operational footprint and maintenance downtime.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
