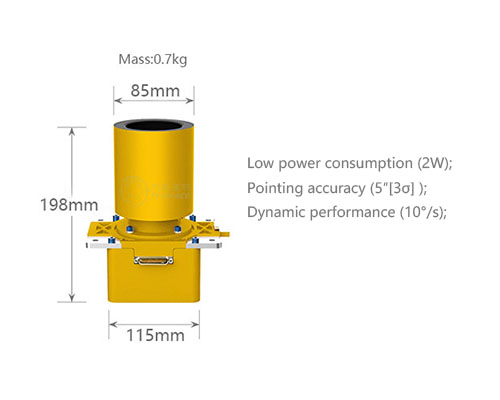

NST10-G1 Star Tracker
TY-Space Technology
The NST10-G1 is a star tracker equipped with a MEMS gyroscope, offering high pointing accuracy and dynamic performance for spacecraft attitude determination.
Typed specifications60 values
Discloses 10 of 12 fields engineers filter by in this category (category median 8).
- Accuracy, cross-boresight
- 5 arcsec datasheet p.1 20 arcsec 10°/s, pointing, 3 sigma | 5 arcsec pointing, 3 sigma
- Mass
- 500 g typ. · datasheet p.2 500 g | 90 g as published, mode unspecified | 500 g device weight 500+-50 g
- Accuracy, about boresight (roll)
- 50 arcsec datasheet p.1 200 arcsec 10°/s, rolling, 3 sigma | 50 arcsec rolling, 3 sigma
- Envelope (L×W×H)
- 90mm×90mm×200±2mm datasheet p.2 90mm×90mm×200±2mm envelope size
- Update rate
- 10 Hz Min. · datasheet p.1 10 Hz min · >=10Hz
- Max tracking rate
- 10 °/s datasheet p.1 10 °/s <=10°/s: follow up
- Sun exclusion angle
- 25 ° Earth or other stray light · datasheet p.1 35 ° Sun | 35 ° max · Sun <=35°
- Field of view
- 18°×18° datasheet p.1 18 ° 18°×18°
- Lost-in-space acquisition time
- 2 s Max. Acquisition · datasheet p.1 2 s max · acquisition rate, max. <=2s | 5 s max · start-up time, better than 5s
- Supply voltage
- 5 V nom. · voltage stability +-0.2 V · datasheet p.8 5 V | 4.8 V min · VIN+ | 5.2 V max · VIN+ | 5 V as published, mode unspecified
- Power consumption
- 2 W typ. · Operating state heat consumption · datasheet p.4 2 W | 1.2 W as published, mode unspecified | 2 W Operating state | 2 W operating state heat consumption, 2+-0.5 W per device +1
- Data interface
- RS-422 datasheet p.9 RS-422 422 | LVDS
- Operating temperature
- -40 °C min · datasheet p.4 45 °C max | -30–40 °C as published, mode unspecified | 0–10 °C better operating | -40–45 °C operating temperature range
- Radiation tolerance (TID)
- 30 krad as published, mode unspecified · vendor page (catalogue a
- Design lifetime
- 3 years @1000Km Orbit · datasheet p.1 5 years @500Km Orbit | 3 years 1000Km Orbit | 5 years 500Km Orbit
- Configuration
- single unit datasheet p.3
- Connector
- X1 (communication): J30J-37ZKN-J; X2 (power): J30J-15ZKN-J datasheet p.9 J30J-37ZKN-J X1 Communication | J30J-15ZKN-J X2 Power
- Survival temperature
- -40 °C min · datasheet p.4 45 °C max | -40–45 °C storage temperature range
- Baffle
- integrated baffle referenced in installation requirements · datasheet p.16
- Volume (with baffle)
- 1.8 U nom. · Calculated from 90mm×90mm×200±2mm envelope size where 1U = 10… · datasheet p.2 1.46 U
- Earth exclusion angle
- 25 ° max · Earth or other stray light <=25° · datasheet p.2
- Time-sync (PPS) input
- yes PPS; SYNC pulse · datasheet p.15
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Dimensions
- Sensor+Baffle 56×47×86(mm³)
- Mass
- Sensor+Baffle 90 g
- Optical design
- Lens refracitive
- Environmental vibration (FM)
- sine 13 g, random 12 grms
- Vibration (Qualification)
- sine 16 g, random 18 grms
- Working temperature
- -30~40（℃）
- Radiation resistance
- 30 Krad [Si]
- Performance attitude accuracy (pointing/roll)
- ＜3″[3σ]
- Performance attitude accuracy (roll)
- ＜15″[3σ]
- Update rate
- 10 Hz
- Dynamic performance
- 5°/s
- Sensitivity
- 5.8Mv,Go.Ref star
- Exclusive angle sun
- ＜ 35°
- Exclusive angle earth
- ＜ 25°
- Data interface
- RS422/CAN
- Power consumption
- 1.2 W
- Supply voltage
- 5 V
- Design life
- 3years
About
The NST10-G1 Star Tracker is designed for precise attitude determination in space applications. It integrates a MEMS gyroscope to enhance its performance, achieving a pointing accuracy of 3 arcseconds (3σ) and dynamic performance up to 5 degrees per second. The optical design utilizes a refractive lens. It is built to withstand the harsh space environment, with specifications for vibration (sine 13g, random 12 grms for flight model; sine 16g, random 18 grms for qualification), a working temperature range of -30 to 40℃, and radiation resistance up to 30 Krad [Si]. The star tracker provides an update rate of 10 Hz and has a sensitivity of 5.8Mv, Go.Ref star. It features exclusive angles for sun avoidance (< 35°) and Earth avoidance (< 25°). Data communication is handled via RS422/CAN interfaces. It operates on a 5V input voltage, consumes 1.2W of power, and has a design lifetime of 3 years.
