PST3S-H5 Star Tracker
TY-Space Technology
The PST3S-H5 is a compact, lightweight star tracker that operates normally under stray light conditions and can be customized for various satellite mission requirements.
Typed specifications52 values
Discloses 9 of 12 fields engineers filter by in this category (category median 8).
- Accuracy, cross-boresight
- 5 arcsec 0.1°/s, pointing, 3 sigma · datasheet p.2 8 arcsec 0.5°/s, pointing, 3 sigma | 15 arcsec 1.0°/s, pointing, 3 sigma | 3 arcsec Pointing | 5 arcsec Pointing @0.1°/s +3
- Mass
- 130 g typ. · datasheet p.2 130 g | 130 g device weight 130±10g
- Accuracy, about boresight (roll)
- 30 arcsec datasheet p.1 50 arcsec @0.1°/s | 60 arcsec @0.5°/s | 120 arcsec @1.0°/s | 50 arcsec 0.1°/s, roll, 3 sigma +3
- Envelope (L×W×H)
- <Φ64, Height: 134±2 datasheet p.2 <Φ64, Height: 134±2 envelope size
- Update rate
- 10 Hz min · datasheet p.1 10 Hz min · ≥10Hz
- Max tracking rate
- 3 °/s 3°/s: Trackable · datasheet p.2 3 °/s Trackable
- Sun exclusion angle
- 25 ° Earth · datasheet p.1 35 ° Sun | 35 ° min · Sun: better than 35°
- Lost-in-space acquisition time
- 2 s max · datasheet p.1 2 s max · acquisition rate, max. ≤2s | 5 s max · start-up time, better than 5s
- Supply voltage
- 5 V nom. · datasheet p.7 4.8 V min · Safe Operating Voltage | 5.4 V max · Safe Operating Voltage | 5 V as published, mode unspecified | 4.8–5.4 V safe operating voltage
- Power consumption
- 1 W typ. · Operating State · datasheet p.4 1 W Operating State | 1 W operating state, 1±0.2 W per device
- Data interface
- RS-422 datasheet p.1 RS-422 RS422
- Operating temperature
- -40–40 °C as published, mode unspecified · vendor page (catalogue a 15–25 °C best operating temperature range, 20±5 | -30–40 °C operating temperature range
- Radiation tolerance (TID)
- 50 krad as published, mode unspecified · vendor page (catalogue a
- Design lifetime
- 5 years 500km Orbit · datasheet p.1
- Configuration
- single unit datasheet p.3
- Connector
- J70A-2F2-037-431-TH datasheet p.7
- Survival temperature
- -30–40 °C storage temperature range · datasheet p.5
- Baffle
- integrated inner surface of the baffle is ultra black coating · datasheet p.5
- Earth exclusion angle
- 25 ° min · Earth: better than 25° · datasheet p.2
- Time-sync (PPS) input
- yes PPS input; SYNC pulse · datasheet p.11
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording

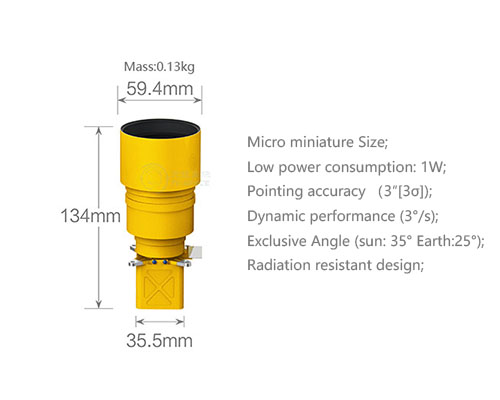

- Dimensions (Sensor+Baffle)
- 35.5x35.5x134 mm3
- Mass (Sensor+Baffle)
- 130 g
- Optical design (Lens)
- Refractive
- Vibration (FM)
- sine 13 g, random 12 grms
- Vibration (Qualification)
- sine 16 g, random 18 grms
- Working temperature
- -40 to 40 C
- Radiation resistance
- 50 Krad [Si]
- Field of view
- 15x18 deg [effective]
- Attitude accuracy (pointing/rolling)
- <3" [3sigma] / <30" [3sigma]
- Update rate
- 10 Hz
- Dynamic performance
- 3 deg/s
- Sensitivity
- 5.8 Mv, Go.Ref star
- Exclusive angle (Sun)
- < 35 deg
- Exclusive angle (Earth)
- < 25 deg
- Data interface
- RS422/CAN
- Power consumption
- 1 W
- Supply voltage
- 5 V
- Design life
- 5 years
About
The PST3S-H5 is a compact, lightweight star tracker developed by TY-Space for satellite attitude determination, combining a small refractive optical design with a sensor+baffle assembly measuring 35.5×35.5×134 mm3 and a mass of only 130g, suiting small satellites and CubeSat-class missions. It delivers high-precision attitude data with pointing accuracy better than 3 arcsec (3-sigma) and rolling accuracy better than 30 arcsec (3-sigma), an effective field of view of 15×18 degrees, and a 10 Hz update rate, tolerating dynamic rates up to 3 deg/s. It is qualified for vibration loads (sine/random) and radiation exposure of 50 Krad [Si], operating across -40C to 40C. It communicates via RS422/CAN, consumes just 1W from a 5V input, and has a 5-year rated lifetime. Notably, the product can operate normally under stray light conditions and can be customized for various mission-specific requirements.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
