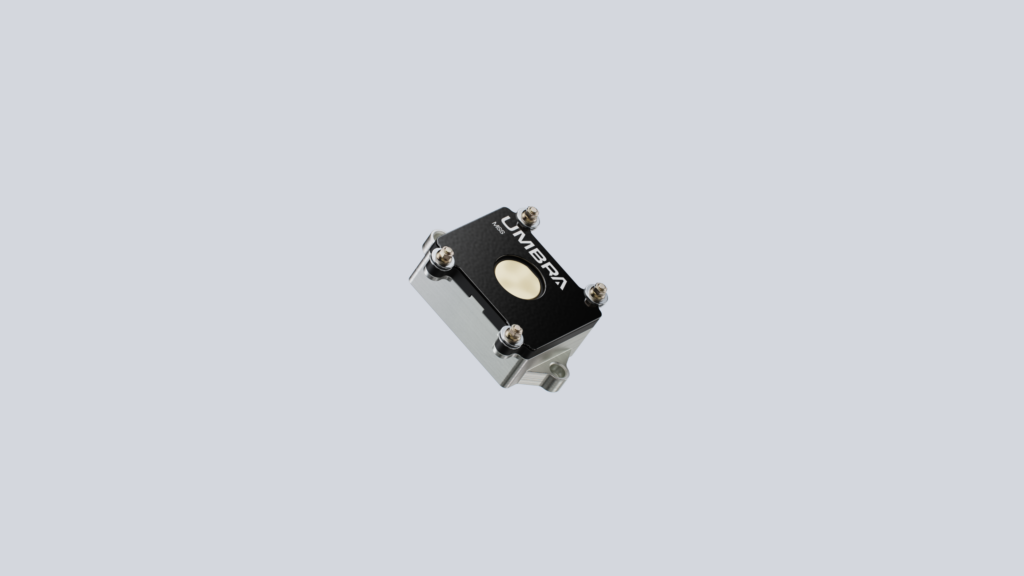

Umbra Space Systems

Name: Umbra Space Systems
Brand: Umbra Lab Inc.

Umbra Space Systems offers American-made, flight-proven hardware and software components for space missions, including power systems, attitude control, communication links, and deployment mechanisms.

Typed specifications25 values

Discloses 0 of 14 fields engineers filter by in this category (category median 7).

Mass: 65 g
Measurement range: 400 µT
Envelope (L×W×H): 2.02 in x 1.4 in x 0.1 in
Output data rate: 10 Hz
Supply voltage: 5 V
Power consumption: 0.01 W
Data interface: RS-422
Operating temperature: -40–80 °C
Radiation tolerance (TID): 30 krad
Design lifetime: 5 years
Axes: 3
Output type: digital
Connector: 15-Pin Micro-D Connector
Survival temperature: -40–100 °C
Random vibration: 14.16 g RMS
Flight heritage: Acceptance tested and Flight Heritage
Shock qualification: 1 000 g
Intended use: spacecraft attitude control
Configuration: integrated (sensor + electronics)

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.

As published by the supplier17 lines, in the manufacturer's own wording

Flight heritage: Proven on orbit
Max Dimensions: 2.02 in x 1.4 in x 0.1 in
Mass: < 65 g
Input Voltage: +5 /- 1 V
Input Voltage Nominal: 5 V
Peak Power: < 10 mW
Average Power: < 10 mW
Electrical Interface: 15-Pin Micro-D Connector
Data Interface: RS-422
Design Life: 5 Years
Operating Temperature: -40° to 80° C
Field of View: 110° x 110°
Accuracy of boresight: < 1°
Solution Rate: > 10 Hz
Measurement Range: +/- 4 Gauss
Single Axis Magnetic Sensitivity: 1 mGauss
Single Axis Magnetic Accuracy: ± 50 mGauss

About

Umbra Space Systems provides a suite of American-made hardware and internally developed software designed for optimal performance in space missions. The company emphasizes a ‘built for operators, by operators’ philosophy, applying first principles engineering to design and build every component from the ground up based on mission demands. Their flight-proven building blocks are designed in-house, tested on orbit, and trusted for continuous operation in space. The offerings are categorized into four main functions: Power, Control, Communication, and Deployment. The Power systems are engineered for endurance and efficiency, including battery modules, solar arrays, and complete power systems, all proven to extend mission life. Control systems feature precision attitude and maneuvering technology, such as the Magnetorquer 6, reaction wheels, and an MSS package, built for adaptability and stability. Communication solutions include robust and resilient S-band radios and network switches, designed to deliver clarity and speed even in challenging conditions. Finally, Deployment systems offer clean separation and reliable actuation with the SyncRelease 4, ensuring flawless mission initiation. Umbra highlights its differentiator as building and flying its own hardware, providing a proven foundation for customer missions.

Documentation

Need the full ICD, test reports or a specific revision? Ask the supplier directly.

Source: umbra.space ↗
