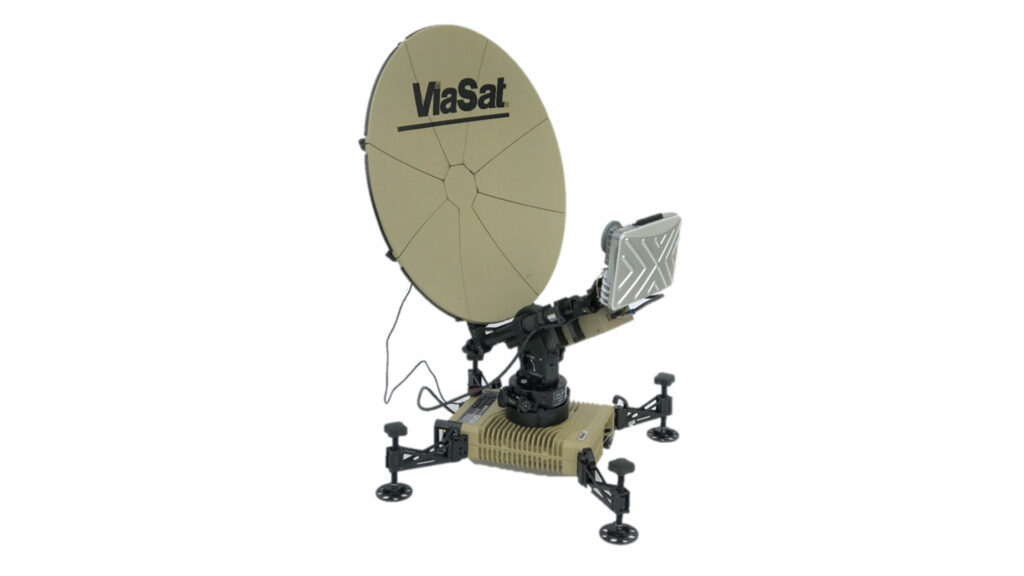

Viasat Multi-Mission Terminal (MMT)
Viasat, Inc.
The Viasat Multi-Mission Terminal (MMT) provides rapidly deployable, multi-band, and multi-orbital broadband for IP communications globally, designed for seamless adaptation to various network topologies.
Typed specifications67 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka Mil-Ka Rx 20.2-21.2 GHz, Tx 30.0-31 GHz; Viasat high-capacity… · datasheet p.2 X RX | Ka RX (MIL-KA BAND) | Ka RX (VIASAT HIGH-CAPACITY KA) | Ku Rx 10.95-12.75 GHz, Tx 13.75-14.5 GHz +10
- Antenna diameter
- 0.006 m circular aperture · datasheet p.2 0.6 m offset fed circular aperture
- Mass
- 31.75 kg max · 1 IATA Case · datasheet p.2 31.75 kg max · 1 IATA case, <70 lb.
- Frequency range
- 10 950–12 750 MHz Ku-band Rx · datasheet p.2 13 750–14 500 MHz Ku-band Tx | 20 200–21 200 MHz Mil-Ka band Rx | 30 000–31 000 MHz Mil-Ka band Tx | 20 200–21 200 MHz RX (MIL-KA BAND) +17
- Supply voltage
- 24 V nom. · DC shore power · datasheet p.2 305 V max · Shore Power AC | 305 V max · universal AC power supply up to 305 VAC | 24 V nom. · Shore Power DC
- Power consumption
- 200 W max · maximum terminal consumption (depends on RF configuration) · datasheet p.2
- Operating temperature
- -30–47 °C datasheet p.2
- Offering
- portable or mobile terminal datasheet p.1
- Antenna type
- parabolic reflector offset fed, 60 cm circular aperture · datasheet p.2
- Installation
- transportable transportable, rapidly deployable flyaway terminal · datasheet p.1
- Polarization
- dual circular Circular, RHCP/LHCP co-pol or cross-polarization · datasheet p.2 circular Circular, RHCP/LHCP co-pol or cross-polarization VIASAT HIGH-… | linear Ku-band: manually switchable linear by 180 deg, cross polariz… | circular Manually switchable circular LHCP or RHCP | LHCP Manually switchable circular LHCP or RHCP MIL-KA BAND +7
- Protocols and standards
- DVB-S2 waveform technology: LinkWay, Arclight, EBEM, ViaSat-1, ViaSa… · datasheet p.2 proprietary
- Azimuth travel
- -25–25 ° +/- 25 deg after coarse setup · datasheet p.2
- Min elevation
- 10 ° datasheet p.2
- Elevation travel
- 10–90 ° datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Configuration
- Offset fed, 60 cm circular aperture
- Azimuth Range
- ± 25º (after coarse setup)
- Elevation Range
- 10º to 90º
- Leveling Capability
- ± 5º
- Supply voltage
- DC 24 VDC, AC up to 305 VAC
- Power
- maximum terminal consumption: 200 W
- Set-up, point, and satellite acquisition time
- 15 mins or less for minimally trained person
- Mass
- <70lb. (31.75 kg)
- RX Frequency Band (X-BAND)
- 7.25 to 7.75 GHz
- TX Frequency Band (X-BAND)
- 7.9 to 8.4 GHz
- RX Frequency Band (KU-BAND)
- 10.95 to 12.75 GHz
- TX Frequency Band (KU-BAND)
- 13.75 to 14.5 GHz
- RX Frequency Band (MIL-KA BAND)
- 20.2 to 21.2 GHz
- TX Frequency Band (MIL-KA BAND)
- 30.0 to 31 GHz
- RX Frequency Band (HIGH-CAPACITY KA)
- 17.7 to 20.2 GHz
- TX Frequency Band (HIGH-CAPACITY KA)
- 27.5 to 30 GHz
About
The Viasat Multi-Mission Terminal (MMT) is a rapidly deployable ground terminal offering broadband IP communications across the globe. Its multi-band and multi-orbital capabilities allow it to seamlessly adapt to diverse network topologies and architectures, including mesh, hub/spoke, and point-to-point configurations. Users can achieve simple and accurate portable SATCOM antenna pointing using the Viasat CAMP smartphone app. Key features include high-capacity satellite service delivery to the portable, flyaway terminal, and the ability to roam across satellite networks for anti-access/area-denied (A2AD) resiliency. The MMT delivers IP-based voice, video, and data networking, and can be set up and pointed in 30 minutes or less. With a simple feed-arm swap, it operates over commercial Ku-, WGS Ka-, ViaSat-1 and ViaSat-2 Ka-, and commercially available X-band constellations. The MMT is designed to be flexible and easily upgradeable for future mission requirements, making it ideal for Forward Operating Bases and emergency response operations. It provides operators with a unique combination of multi-level transport diversity and access to Viasat’s high-capacity satellite constellations, ensuring secure and resilient communications in both benign and contested environments. Viasat also offers a government-focused ground terminal modification program, enabling third-party terminals to access Viasat’s high-capacity SATCOM networks, allowing U.S. DoD and coalition forces to utilize their existing ground SATCOM terminals to roam among commercial and defense satellite networks, thereby gaining access to a hybrid, multi-network SATCOM architecture.
