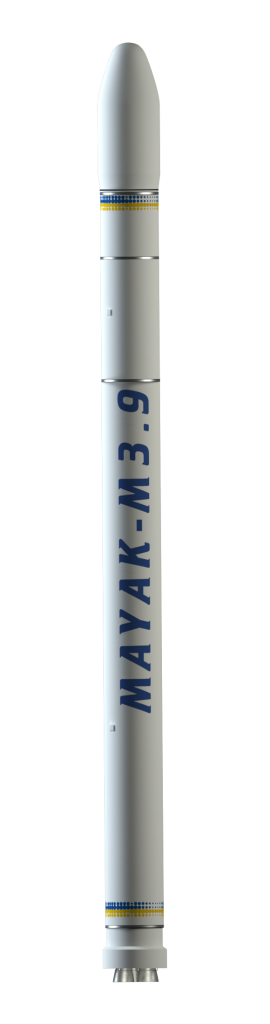

Mayak-M-3.9
Yuzhnoye Design Bureau
The Mayak-M-3.9 is a two-stage heavy-lift class launch vehicle developed by Yuzhnoye SDO, utilizing RD815 engines on the first stage and technologies derived from the proven Zenit, Cyclone, and Antares rockets. Designed in both monoblock and modular configurations, it targets commercial and governmental payloads destined for low Earth orbit, geostationary transfer orbit, and lunar trajectories. […]
Key figurescomparable across the catalogue
- Payload capacity
- 18,200 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Vehicle Class
- Heavy-lift
- Number of Stages
- 2
- Height
- 65,000 mm
- Body Diameter
- 3,900 mm
- Fairing Diameter
- 4,200 mm
- Gross Mass (no payload)
- 526 t
- Stage 1 Propellant
- LOX + kerosene
- Stage 2 Propellant
- LOX + kerosene
- Stage 1 Engines
- 3 x RD815
- Stage 2 Engine
- RD872
- Stage 1 Thrust (sea level)
- 753.96 tf
- Stage 2 Thrust (vacuum)
- 93 tf
- Payload to LEO (200 km, 51.6 deg)
- 18.2 t
- Payload to GTO (190-35786 km)
- 4.52 t
- Payload to Lunar Trajectory (with booster)
- 6.3 t
About
The Mayak-M-3.9 is a two-stage heavy-lift class launch vehicle developed by Yuzhnoye SDO, utilizing RD815 engines on the first stage and technologies derived from the proven Zenit, Cyclone, and Antares rockets. Designed in both monoblock and modular configurations, it targets commercial and governmental payloads destined for low Earth orbit, geostationary transfer orbit, and lunar trajectories. The vehicle employs liquid oxygen and kerosene propellants on both stages, offering an environmentally friendlier alternative to storable-propellant rockets. With a body diameter of 3.9 meters and a fairing diameter of 4.2 meters, it fits within the established ground infrastructure footprint of existing Ukrainian launch systems.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
