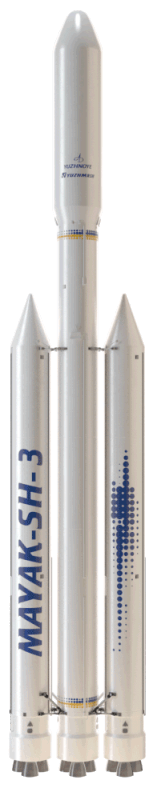

Mayak-SH-3
Yuzhnoye Design Bureau
The Mayak-SH-3 is a super heavy-lift class two-stage launch vehicle developed by Yuzhnoye SDO, capable of placing 59.3 tonnes into low Earth orbit and 18.7 tonnes on a lunar trajectory with a booster stage. It employs a modular architecture with six RD815 booster engines plus three additional RD815 engines on the first stage core, all […]
Key figurescomparable across the catalogue
- Payload capacity
- 59,300 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Vehicle Class
- Super heavy-lift
- Number of Stages
- 2
- Height
- 75,000 mm
- Body Diameter
- 3,900 mm
- Fairing Diameter
- 5,100 mm
- Gross Mass (no payload)
- 1,387 t
- Stage 1 Propellant
- LOX + kerosene
- Stage 2 Propellant
- LOX + kerosene
- Booster Engines
- 6 x RD815
- Stage 1 Engines
- 3 x RD815
- Stage 2 Engine
- RD872
- Stage 1 Thrust (sea level)
- 2,261.88 tf
- Stage 2 Thrust (vacuum)
- 93 tf
- Payload to LEO (200 km, 51.6 deg)
- 59.3 t
- Payload to Lunar Trajectory (with booster)
- 18.7 t
About
The Mayak-SH-3 is a super heavy-lift class two-stage launch vehicle developed by Yuzhnoye SDO, capable of placing 59.3 tonnes into low Earth orbit and 18.7 tonnes on a lunar trajectory with a booster stage. It employs a modular architecture with six RD815 booster engines plus three additional RD815 engines on the first stage core, all burning liquid oxygen and kerosene propellants. The second stage uses the RD872 engine. Designed to address large payload delivery requirements for Earth orbit and lunar trajectory missions, the Mayak-SH-3 builds on proven Ukrainian rocket heritage from the Zenit, Cyclone, and Antares programs, enabling use of existing or already-developed engines and units to minimize development costs and time to first flight.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
