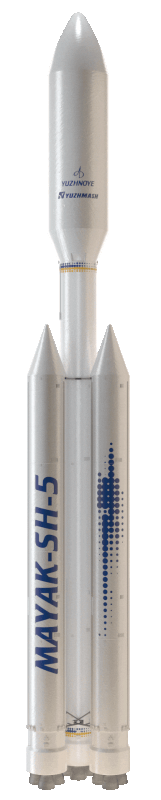

Mayak-SH-5
Yuzhnoye Design Bureau
The Mayak-SH-5 is a super heavy-lift class two-stage launch vehicle developed by Yuzhnoye SDO, capable of placing 93.2 tonnes into low Earth orbit and 30.5 tonnes on a lunar trajectory when paired with a booster. It employs twelve RD815 booster engines plus three core first-stage engines, all burning liquid oxygen and kerosene. The second stage […]
Key figurescomparable across the catalogue
- Payload capacity
- 93,200 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Vehicle Class
- Super heavy-lift
- Number of Stages
- 2
- Height
- 80,000 mm
- Body Diameter
- 3,900 mm
- Fairing Diameter
- 6,200 mm
- Gross Mass (no payload)
- 2,246 t
- Stage 1 Propellant
- LOX + kerosene
- Stage 2 Propellant
- LOX + kerosene
- Booster Engines
- 12 x RD815
- Stage 1 Engines
- 3 x RD815
- Stage 2 Engine
- RD872
- Stage 1 Thrust (sea level)
- 3,769.8 tf
- Stage 2 Thrust (vacuum)
- 93 tf
- Payload to LEO (200 km, 51.6 deg)
- 93.2 t
- Payload to Lunar Trajectory (with booster)
- 30.5 t
About
The Mayak-SH-5 is a super heavy-lift class two-stage launch vehicle developed by Yuzhnoye SDO, capable of placing 93.2 tonnes into low Earth orbit and 30.5 tonnes on a lunar trajectory when paired with a booster. It employs twelve RD815 booster engines plus three core first-stage engines, all burning liquid oxygen and kerosene. The second stage uses the RD872 engine. With a fairing diameter of 6.2 meters and a gross mass of approximately 2,246 tonnes (without payload), it represents one of the largest rockets in the Mayak family. Its design philosophy maximizes reuse of heritage components and manufacturing expertise from the Zenit and Cyclone programs. Two configurations are envisioned: expendable and with a recoverable first stage.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
