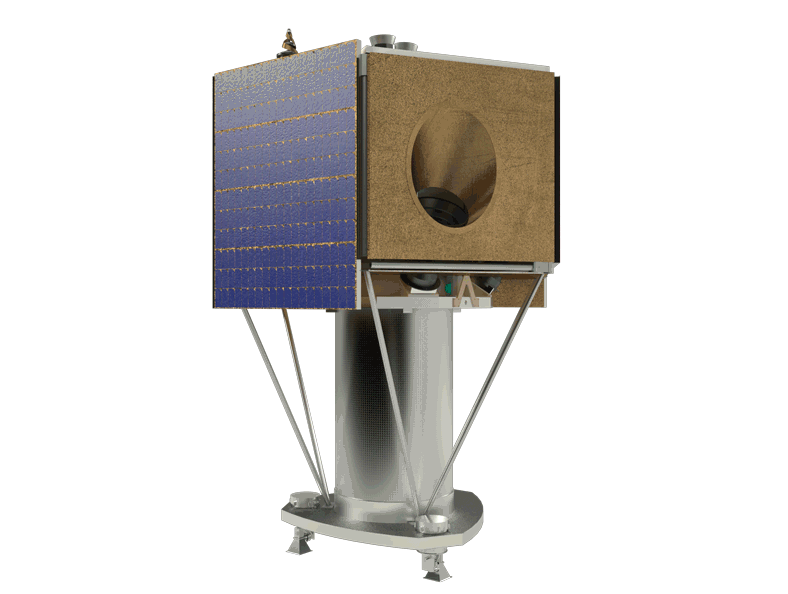

Sich-3-O
Yuzhnoye Design Bureau
The Sich-3-O is a high-resolution optical Earth observation satellite developed by Yuzhnoye SDO that will obtain super-resolution digital panchromatic and multispectral visible images of the Earth’s surface. Operating in a sun-synchronous orbit at approximately 500 km altitude, the satellite weighs approximately 290 kg and features a three-axis active attitude control system with plus or minus […]
Key figurescomparable across the catalogue
- Mass
- 290 kg
- Design life
- 7 years
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Total mass
- ~290 kg
- Orbit type
- Sun-synchronous
- Orbital altitude
- ~500 km
- Attitude control
- 3-axis active
- Attitude actuators
- Reaction wheels, magnetic actuators
- Off-axis maneuver capability
- +/-45 deg
- Panchromatic resolution
- 0.5 m at nadir
- Multispectral resolution (R, G, B, NIR)
- 2 m
- Strip imaging coverage
- 10 x 1600 km
- Area imaging coverage
- 30 x 250 km
- Spotlight imaging coverage
- 10 x 10 km
- Stereo imaging coverage
- 10 x 250 km
- Operational life
- 7 years
About
The Sich-3-O is a high-resolution optical Earth observation satellite developed by Yuzhnoye SDO that will obtain super-resolution digital panchromatic and multispectral visible images of the Earth’s surface. Operating in a sun-synchronous orbit at approximately 500 km altitude, the satellite weighs approximately 290 kg and features a three-axis active attitude control system with plus or minus 45 degrees off-axis maneuver capability, enabling imaging of targets well beyond the nadir track. An ammonia propulsion system enables orbital correction maneuvers to maintain the desired orbit parameters. The high-resolution imaging payload achieves 0.5 m panchromatic and 2 m multispectral resolution in R, G, B, and NIR bands. The satellite supports multiple imaging modes including strip, area, spotlight, and stereo imaging across a 7-year operational life.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
