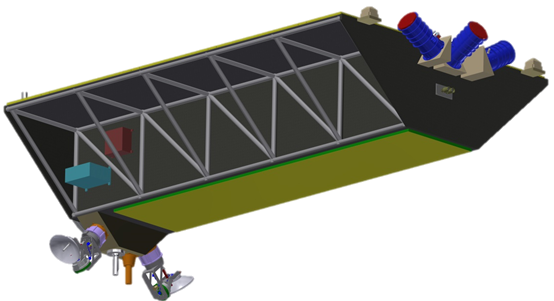

Sich-3-R
Yuzhnoye Design Bureau
The Sich-3-R is an Earth radar observation satellite developed by Yuzhnoye SDO that will obtain high-resolution radar images of the Earth’s surface regardless of lighting conditions and weather, enabling all-weather, day-and-night Earth observation capabilities critical for disaster monitoring, maritime surveillance, and national security applications. Weighing 1,800 kg and operating in a morning-evening sun-synchronous orbit at […]
Key figurescomparable across the catalogue
- Mass
- 1,800 kg
- Design life
- 7 years
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Total Mass
- 1,800 kg
- Orbit Type
- Sun-synchronous (morning-evening)
- Orbital Altitude
- 450 km
- Attitude Control
- 3-axis active
- Attitude Actuators
- Reaction wheels, magnetic actuators
- Roll Angle Capability
- +/-60 deg
- Attitude Accuracy
- 0.05 deg
- SAR Bands
- X-band and L-band
- X-band Spotlight Resolution
- 0.5 m, 2.5 x 2.5 km swath
- X-band Stripmap Resolution
- 0.75 m, 7.5 km swath
- Two-band Stripmap Resolution (X/L)
- 2/5 m, 15 km swath
- Two-band ScanSAR Resolution
- 1.5/1.5 m, 100 km swath
- L-band ScanSAR Resolution
- 1.5 m, 250 km swath
- Operational Life
- 7 years
About
The Sich-3-R is an Earth radar observation satellite developed by Yuzhnoye SDO that will obtain high-resolution radar images of the Earth’s surface regardless of lighting conditions and weather, enabling all-weather, day-and-night Earth observation capabilities critical for disaster monitoring, maritime surveillance, and national security applications. Weighing 1,800 kg and operating in a morning-evening sun-synchronous orbit at 450 km altitude, it features a two-band (X-band and L-band) synthetic aperture radar payload achieving up to 0.5 meter resolution in X-band spotlight mode. The attitude control system achieves 0.05 degree pointing accuracy with plus or minus 60 degree roll angle capability, enabling wide coverage across multiple swath modes. An ammonia propulsion system enables orbital corrections over the 7-year design lifetime.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
