YuzhSat-1
Yuzhnoye Design Bureau

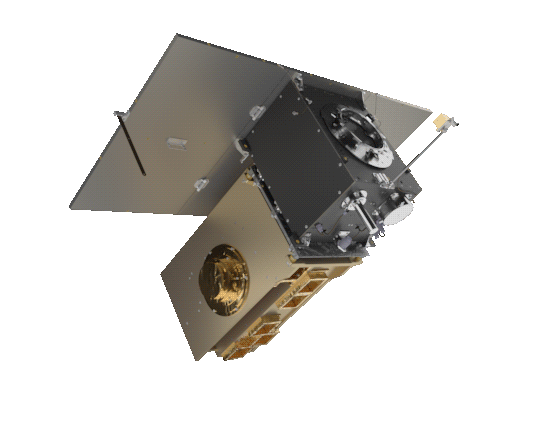

The YuzhSat-1 is a 38.4 kg microsatellite developed by Yuzhnoye SDO carrying the Aerosol-UA scientific payload for global monitoring of atmospheric aerosol characteristics and distribution to enhance climate model accuracy and advance understanding of Earth’s radiation budget. Operating in a circular sun-synchronous orbit at approximately 705 km altitude with 98.1 degrees inclination, its two-instrument payload […]
Key figurescomparable across the catalogue
- Mass
- 38.4 kg
- Power
- 80 W
- Design life
- 2 years
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Total Mass
- 38.4 kg
- Orbit Type
- Circular sun-synchronous
- Orbital Altitude
- ~705 km
- Orbital Inclination
- ~98.1 deg
- Attitude Control
- 3-axis active (magnetorquers + reaction wheels)
- Orientation Accuracy
- 0.2 deg
- Payload Power (max)
- 80 W
- Payload Power (daily average)
- 20 W
- ScanPol Spectral Bands
- 370, 410, 555, 865, 1380, 1610 nm
- ScanPol Nadir Resolution
- ~6 km
- MSIP Spectral Bands
- 410, 555, 865, 1380 nm
- MSIP Pixel Size
- 500 m
- MSIP Spatial Resolution
- ~3 km nadir
- MSIP Field of View
- 60 x 60 deg
- Design Life
- 2 years
About
The YuzhSat-1 is a 38.4 kg microsatellite developed by Yuzhnoye SDO carrying the Aerosol-UA scientific payload for global monitoring of atmospheric aerosol characteristics and distribution to enhance climate model accuracy and advance understanding of Earth’s radiation budget. Operating in a circular sun-synchronous orbit at approximately 705 km altitude with 98.1 degrees inclination, its two-instrument payload includes the Scanning Photometer-Polarimeter (ScanPol) operating at six spectral bands from 370 to 1610 nm with approximately 6 km nadir resolution and the Multispectral Imager-Polarimeter (MSIP) providing 500 m pixel size and approximately 3 km spatial resolution over a 60 by 60 degree field of view. Three-axis active attitude control with magnetorquers and reaction wheels achieves 0.2 degree orientation accuracy over a 2-year design life.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
