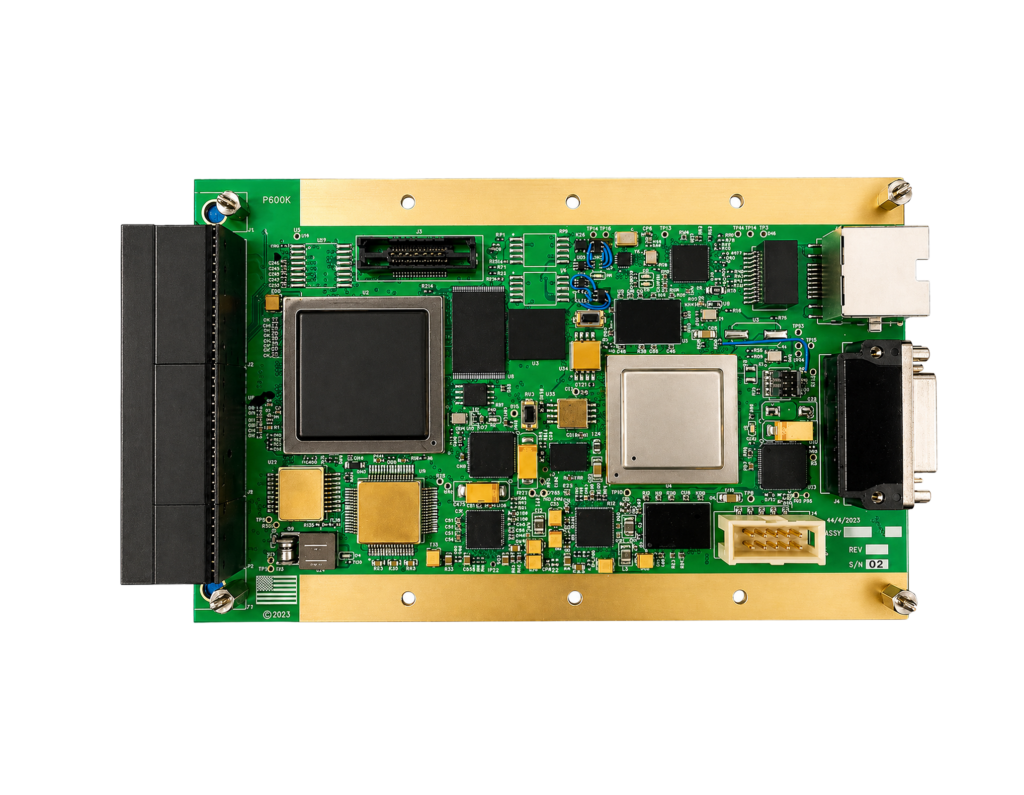

Proton600K Multi-Core Processor

Typed specifications74 values

Discloses 8 of 13 fields engineers filter by in this category (category median 4).

Processor

Dual Arm Cortex-A72 application cores

datasheet p.1 Quad Arm Cortex-A53 application cores  |  Dual Arm Cortex-M4F real-time cores  |  Dual ARM Cortex-M4 System Controller Unit  |  Dedicated ARM Cortex-M0+ Security Processor  +1

Mass

350 g

per PCBA, estimated · datasheet p.2

CPU clock

1 600 MHz

datasheet p.1 1 260 MHz Arm Cortex-A53 application cores  |  1 600 MHz Arm Cortex-A72 application cores  |  266 MHz Arm Cortex-M4F real-time cores  |  1 260 MHz  +1

Envelope (L×W×H)

3U Open VPX

datasheet p.2

RAM

2 048 MB

datasheet p.1 2 048 MB 32-bit LPDDR3 @ 800 MHz (System FPGA)  |  8 192 MB 64-bit LPDDR4 @ 1.6 GHz  |  2 048 MB on-chip ECC  |  8 192 MB

Mass storage

0 GB

datasheet p.1 64 GB eMMC 5.1 (for EM/SDU only)  |  64 GB TMR NAND FLASH (System FPGA)  |  64 GB

Operating system

Linux

datasheet p.1 other Integrity, Green Hills and others  |  VxWorks  |  Integrity  |  Green Hills

Supply voltage

28 V

nom. · Isolated (with optional Power Supply PCBA) · datasheet p.2 28 V +/- 28 V Isolated (with optional Power Supply PCBA)  |  3.3 V nom. · VITA 78 Standard +3.3 V  |  5 V nom. · VITA 78 Standard +5 V  |  3.3 V nom. · VITA 78 Standard

Power consumption

12 W

Peak Power (Executing Coremark Benchmark) · datasheet p.2 12 W max · peak power, executing Coremark benchmark

Data interface

GPIO

Backplane and front panel single-ended GPIO · datasheet p.2 SpaceWire Backplane Dual SpaceWire Thin Pipe (X2) Interfaces  |  GPIO Backplane Eight Single-ended General Purpose Input Output  |  LVDS Backplane Sixteen LVDS Transmitters and Sixteen Receivers  |  other Backplane Triple Serial RapidIO Fat Pipe (X4) Interfaces  +4

Operating temperature

-40–100 °C

operating temperature · datasheet p.2

Processor architecture

GPU / NPU

Dual 32-bit Graphics Processing Units and Video Processing Unit · datasheet p.1 ARM Cortex-A Dual Arm Cortex-A72 application cores  |  ARM Cortex-M Dual Arm Cortex-M4F real-time cores  |  ARM Cortex-A Quad Arm Cortex-A53 application cores

Board format

3U VPX

3U Open VPX · datasheet p.1 3U VPX

Radiation and fault mitigation

EDAC / ECC on RAM

2GB on-chip ECC · datasheet p.1 other 64 GB TMR NAND FLASH  |  rad-hard components advanced, radiation-hardened 3U Open VPX Single Board Compute…  |  other Destructive Single Event Latch-Up Immune  |  ECC on flash Dual Quad-SPI Serial NOR FLASH with on-chip ECC  +2

Connector

Front Panel Micro-D Connectors for External Input Output; ANSI/VITA 78.00-2015 3U electrical, power and mechanical interfaces

datasheet p.1

Random vibration

10 g RMS

max · random vibration, up to 10 gRMS, 3-Axis · datasheet p.2

Cores

4

Arm Cortex-A53 application cores · datasheet p.1 2 Arm Cortex-A72 application cores  |  2 Arm Cortex-M4F real-time cores  |  8 eight ARM Cortex cores (overview)

FPGA

System FPGA: 481 K Logic Elements, 33 Mbits RAM, 1480 Math Blocks, 24 SERDES Transceivers, 584 User I/O, ARM Cortex-M3 System Controller and Security Unit

datasheet p.1

GPIO lines

8

Backplane Eight Single-ended General Purpose Input Output · datasheet p.2 8 Front Panel Eight Single-ended General Purpose Input Output  |  8

RAM type

MRAM

1 GB SPACE-GRADE MRAM (System FPGA) · datasheet p.1 other 2 GB 32-bit LPDDR3 @ 800 MHz (System FPGA)  |  LPDDR4 8 GB 64-bit LPDDR4 @ 1.6 GHz

Program / boot memory

128 MB

Dual Quad-SPI Serial NOR FLASH with on-chip ECC (CPU) · datasheet p.1 64 MB Dual Quad-SPI Serial NOR FLASH with on-chip ECC (System FPGA)  |  1 024 MB SPACE-GRADE MRAM (System FPGA)
