ProtonVPX-Box
ZIN Technologies

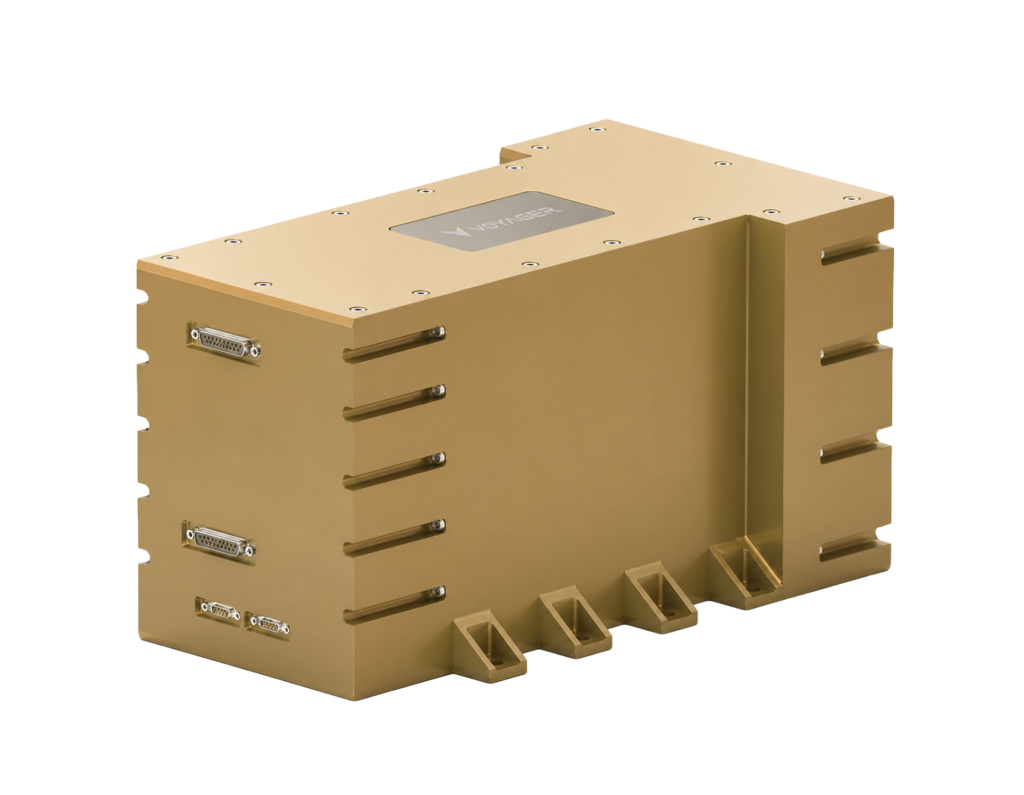

A modular 3U VPX digital avionics compute platform built around the Proton600K multi-core space processor, configurable to meet varied mission objectives.
Typed specifications38 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Proton600K multi-core high-performance space processor (see Proton600K datasheet for details) datasheet p.1
- Mass
- 6 000 g datasheet p.1 6 000 g chassis with P600K, SSR, DI/O, AI/O, power supply | 6 000 g Chassis, P600K, SSR, DI/O, AI/O, Power Supply
- Envelope (L×W×H)
- 10.35” L x 5.93” W x 5.7” H datasheet p.1 10.35 in L x 5.93 in W x 5.7 in H chassis with P600K, SSR, DI/O, AI/O, power supply
- Supply voltage
- 28 V nom. · DC Input · datasheet p.1 28 V DC | 28 V nom. · input voltage | 28 V nom. · Power Input
- Power consumption
- 40 W datasheet p.1 40 W chassis with P600K, SSR, DI/O, AI/O, power supply | 40 W Chassis, P600K, SSR, DI/O, AI/O, Power Supply
- Data interface
- Ethernet datasheet p.2 Ethernet 1000BASE-T Ethernet with PHY (Proton600K); Ethernet digital I… | SpaceWire 3x SpaceWire or option for SpaceFibre | GPIO 8 GPIO and 16 LVDS (Proton600K) | RS-422 other digital I/O cards available +9
- Operating temperature
- -40–100 °C datasheet p.1 -40–100 °C temperature range
- Radiation tolerance (TID)
- 100 krad datasheet p.1 100 krad max · Radiation Tolerant up to 100 krads
- Board format
- 3U VPX high-speed 3U VPX mesh backplane · datasheet p.1
- Radiation and fault mitigation
- ECC on flash NAND Flash-Based SSR includes H-Core and Error Correction · datasheet p.2 other Radiation Tolerant up to 100 krads
- GPIO lines
- 8 Proton600K multi-core computer card · datasheet p.2
- Redundancy
- other Accommodates Redundancy · datasheet p.1
- Data interface speed
- 6.25 Mbps max · ProtonVPX High-Speed Backplane connection · datasheet p.1
- Analog inputs
- 16 ProtonVPX Analog I/O: differential inputs and outputs x16 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Backplane
- High-speed 3U VPX mesh backplane, no separate SRIO switches/SpW routers required
- Chassis
- Rugged thick-wall aluminum chassis
- Baseline configuration
- 5-slot: Proton600K Multi-Core Computer, SSR, Digital I/O, Analog I/O, Power Supply
- Core processor
- Proton600K multi-core high-performance space processor
- Operating temperature
- -40°C to +100°C
- Mass
- 6 kg
- Power
- 40 W
- Supply voltage
- 28 V DC
About
ProtonVPX-Box is a modular digital avionics platform designed to accommodate multiple configurations to meet mission objectives. The system utilizes a high-speed 3U VPX mesh backplane, which precludes the need for SRIO switches and SpW routers, simplifying system architecture and reducing component count. It is encased in a rugged thick-wall aluminum chassis for structural protection and thermal management. The platform is anchored by a Proton600K multi-core, high-performance space processor. In its baseline configuration, the system ships as a 5-slot module comprising: Proton600K Multi-Core Computer, SSR (Solid State Recorder), Digital I/O, Analog I/O, and Power Supply. Its modular slot-based architecture allows the platform to be reconfigured to meet different mission-specific compute, storage, and interface requirements.
