About Emxys

Emxys (Electronics and Mechanisms from Extreme Systems) is a research-driven company founded in Valencia, Spain, specialising in high-performance electronics and embedded systems for space applications. The company designs and manufactures electronics for space instruments, data acquisition, and control systems, delivering solutions for both space and terrestrial markets.

Emxys's flagship product line centres on the ODALISS nanosatellite platform — a complete, high-performance CubeSat bus with optical communications capability. The ODALISS architecture is built around a high-speed, multi-protocol logic bus that allows data-intensive payloads to be connected in a scalable, modular configuration. This design philosophy enables researchers and mission operators to integrate the most demanding scientific instruments without compromising data throughput.

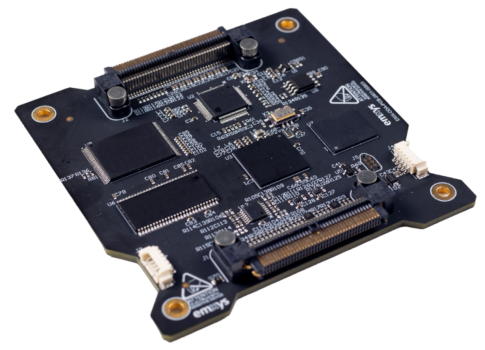

Beyond the complete platform, Emxys offers the individual subsystems as standalone products: the ODALCOM optical transceiver for infrared high-data-rate links, the DIPP and OBC embedded computers for onboard processing, the PDCU power distribution and control unit, VHF/UHF TTC transceivers, triple-junction solar panels with integrated sensors, and an SDR-based ground station covering UHF, VHF, and S-band frequencies.

Emxys has supported European and international space missions including work with Arianespace and UPMSat-2. The company holds AS 9100 aerospace quality certification and operates as part of Spain's growing commercial space sector.

Company Info

Headquarters Valencia, Spain, Spain

Founded 2007 (19 years)

Specializations

satellite-platforms power-systems ground-systems instruments

Website emxys.com ↗

Photos 3

Products

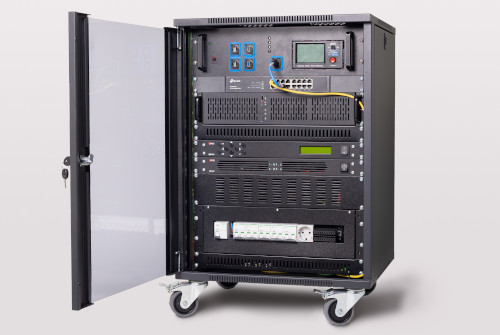

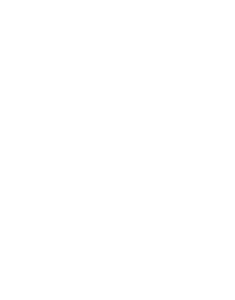

The EMXYS Ground Station is a 19-inch rack-mounted terrestrial radio station for satellite communications, featuring an embedded computer, SDR, and optional rotor for satellite tracking.

6 28

Sdr over ethernet	Yes
Enclosure	19 inch standard
Satellite tracking	Yes
Software included for telemetry and telecommand	Open source COSMOS
Software included for satellite tracking and rotor control	Open source Gpredict
Network implementation	Local network to receive/transmit data and receive RF samples
Connection system	TCP/IP protocol with Ethernet gigabit switch
Data link packaging	User definable (AX25/HDLC implemented by default)
Modulations	User definable (FSK, BPSK implemented by default)
Additional blocks	Possibility of adding scrambling and user python code implementation
Doppler effect control	Yes
Receiver frequency band	up to 3.5 GHz
Transmission frequency band	400 MHz to 480 MHz (Possibility of modifying on demand)
Transmission gain	34 dB
Protection	AC overcurrent and leakage current protection
Communication	Half-duplex
Rotor precision	0.1º
Antenna switch selector	DB9 connector with 12 V, 50 mA
Supply voltage	220 VAC
Power frequency	50 Hz
Operating ambient temperature range	–20°C to +70°C
Storage temperature range	–40°C to 85°C
Maximum output power	60 W
Compliance	19 inches standard
Rack size	15U
Depth	500 mm
Dimensions	820 x 540 x 500 mm
Mass	50Kg

ODALCOM is a Free-Space C Band laser transceiver designed for small satellite platforms, enabling high-performance optical space-to-ground communication links with high data rates and increased security.

1 24

Tx rate	500 Mbps
Volume	1U
Mass	<1.5Kg
Power consumption	lower than 3 W
Optical power	up to 1 W (100 mw nominal)
Logic interface	SPI, Ethernet, I2C
Nominal optical power transmission	200 mW (23 dBm)
Maximum optical transmission power	1 W (30 dBm)
Coarse pointing angular beam steering range	15º (±7.5º)
Fine pointing angular range	5.93º (±2.97º)
Wavelength	1550 nm
Optical modulation	Unipolar NRZ
FPGA	Microchip PolarFire FPGA
FPGA logic cell size	109K logic elements
Ddr3 ram	512 MiB
Emmc memory	4GiB
Serdes lanes	8
Serdes lane speed	250 Mbps to 12.5 Gbps
Power consumption (2)	2.6 W
Standard logic interfaces	Three UART, RS-485, I2C, Ethernet, USB port
Inputs	Six open-drain
Outputs	Six open-drain
Dimensions	87 mm x 87 mm x 15 mm
Mass (2)	60 grams

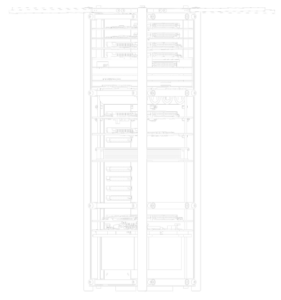

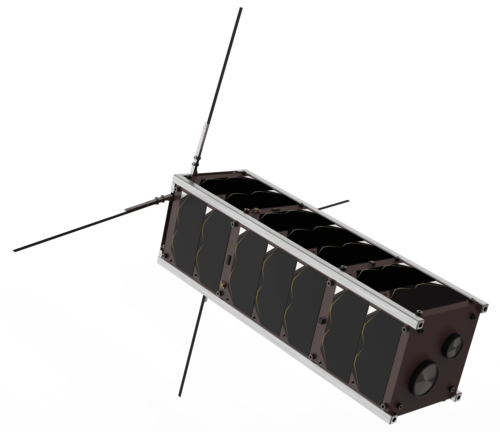

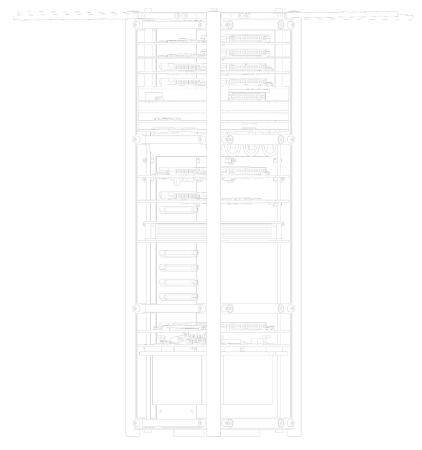

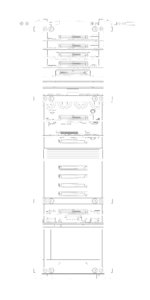

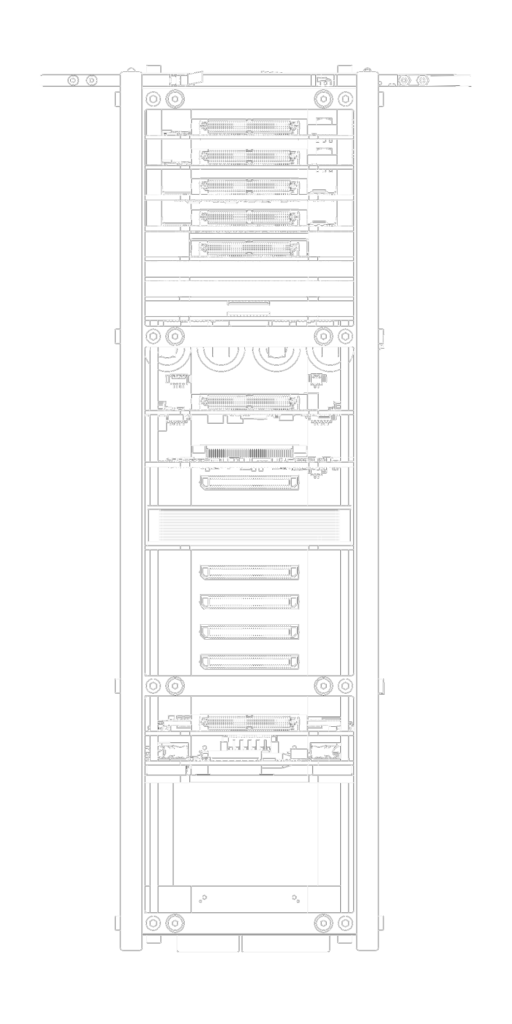

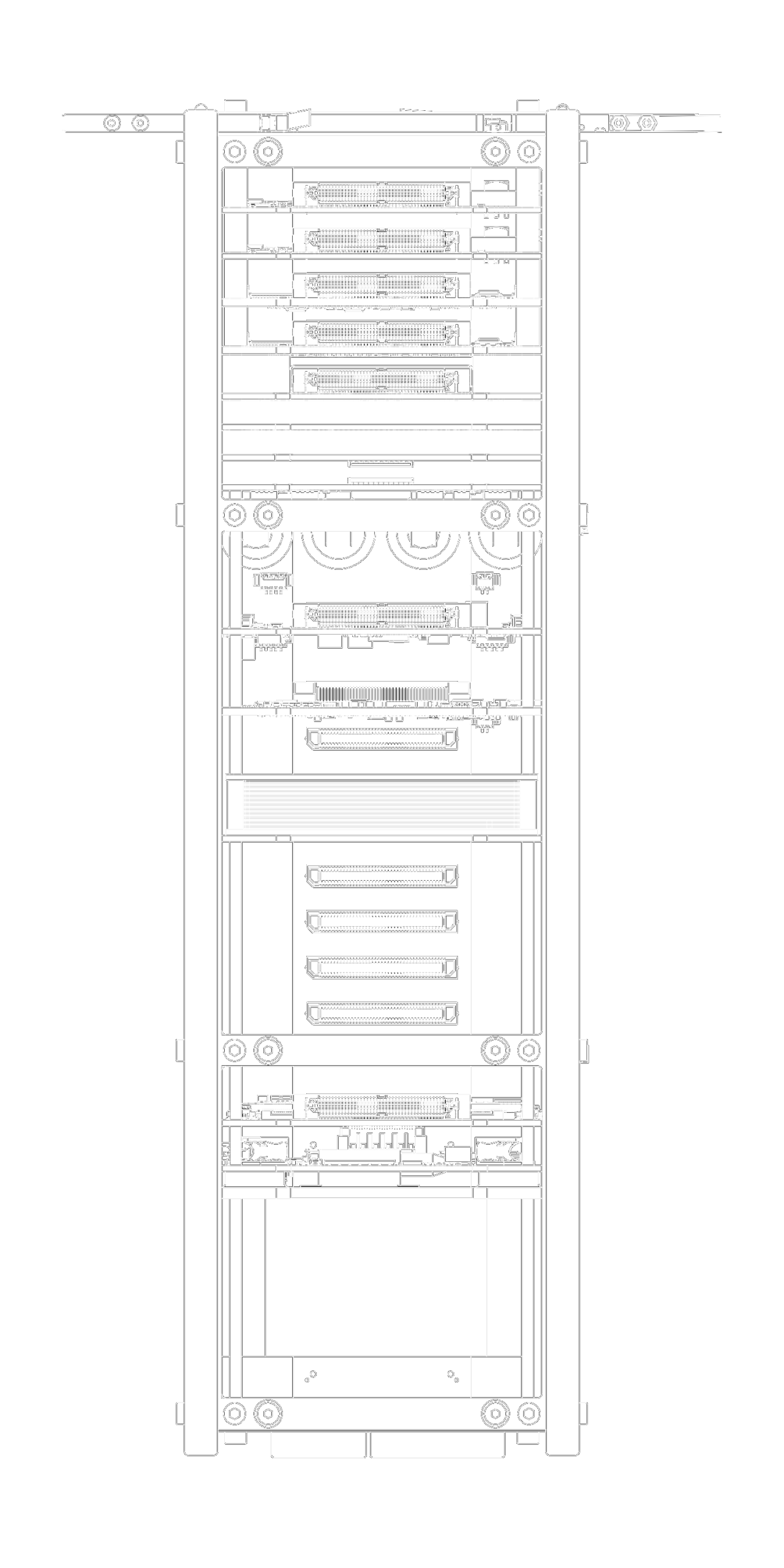

ODALISS is a high-performance nanosatellite platform with optical communications, providing all necessary subsystems for space missions, available in 3U and 6U CubeSat sizes.

2 31

Structure material	7075 Aluminum Hard Anodized
Structure architecture	High-performance architecture for high-speed logic interconnection
Structure sizes	3U and 6U CubeSat
Intended orbit	LEO
Power system	Modular Li-Ion battery packs
Solar panels	3U and 6U available
Power	8 W
Peak power (per pack)	36 W
Power profile	Fully configurable
Non-regulated bus	+7.4 V
Regulated buses	+5 V, +3.3 V
ADCS actuators	3 Reaction wheels + 3 Magnetorquers
Attitude determination	via Sun Sensor and Magnetometer
Attitude accuracy	<0.1º
3-σ pointing control/ knowledge	<0.1º/<0.1º
OBC processor	dual core CORTEX M4+ CORTEX M7 at 480 MHz
OBC flash storage capacity	up to 8 GB
OBC sdram	64 MB
High-performance payload computer (dipp) processor	Dual Core ARM A9 + FPGA 28K LGs Fabric
High-performance payload computer (dipp) flash storage	up to 256 GB
High-performance payload computer (dipp) os	Linux OS
High-performance payload computer (dipp) programming framework	High level (Python, Javascript, etc.)
Logic interfaces	10/100 Ethernet, SPI, I2C, UART, RS-485, RS-422, USB, etc.
TTC transceiver	on-flight reconfigurable Low-Power VHF-UHF (up to 900 MHz band)
TTC uplink/downlink	up to 9.6KB
Optical communications downlink	Mechanisms-Free C BAND (1550 nm) Laser transmitter
Optical communications downlink speed	up to 500 MBps
RF data downlink	S Band SDR Based transceiver
RF data downlink speed	up to 6MBps
S-band antenna	Patch antenna integrated in solar panel
TTC antenna	deployable turnstile monopole, dual dipole configuration, etc.

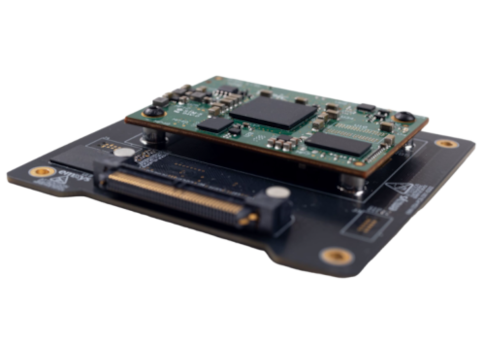

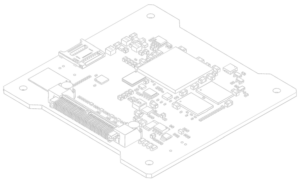

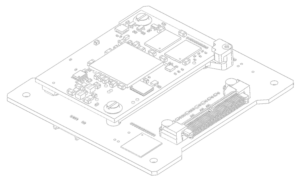

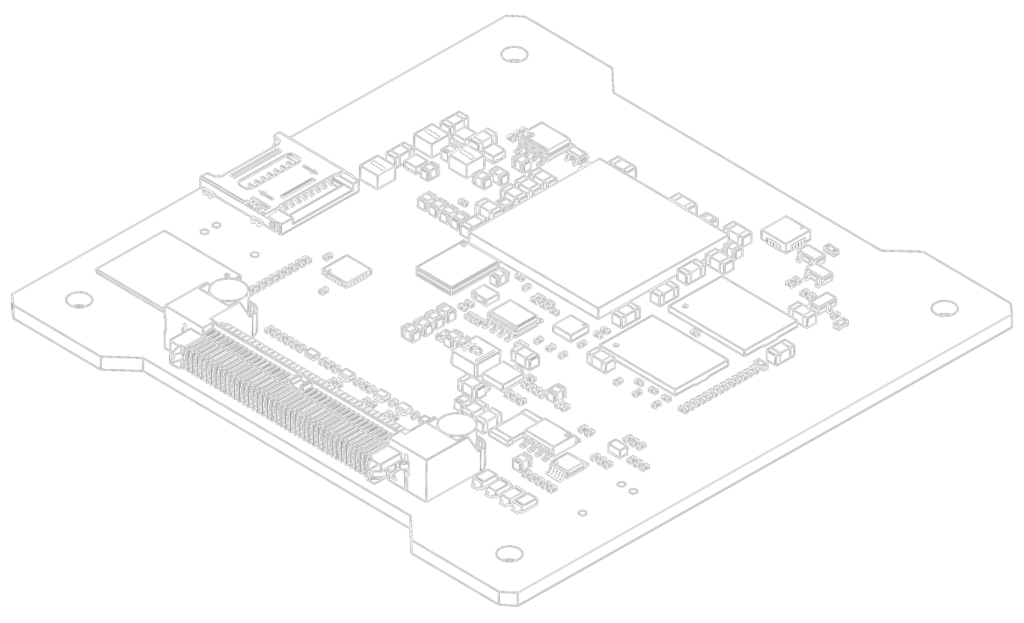

The ODALISS DIPP is a compact, high-performance Data-Intensive Payload Processor designed for satellite applications, featuring a dual-core ARM + FPGA architecture running Linux OS.

2 23

Connectors	80-pins high-speed interface backplane connector.
Connectors (2)	10-pin Pogo-style for program and debug without mechanical stress.
Connectors (3)	10-pin Pogo-style for NAND flash data access.
Memory	eMMC NAND flash or microSD card configurable from 4 GB up to 256 GB.
Memory (2)	1 GB or 512 GB DDR3L RAM.
High-speed connectivity	10/100 Mbps capacitive-coupled Ethernet connection.
High-speed connectivity (2)	USB Port.
Standard logic interfaces	Three CMOS-level UARTS.
Standard logic interfaces (2)	RS-485.
Standard logic interfaces (3)	USB port.
Processing capabilities	Xilinx® Zynq®-7000 SoC. Dual 667 MHz 32-bit ARM® Cortex®-A9 and 28 nm Xilinx® programmable logic.
Processing capabilities (2)	Single processor, symmetric dual processor, and asymmetric dual processor modes.
Processing capabilities (3)	FPGA with logic cell size selectable between 28k to 85k logic elements with possibility to be reconfigured in Run-Time.
Power-supply	Redundant power-supply directly from 2S lithium-based battery.
Power-supply (2)	Overcurrent, overvoltage, undervoltage and reverse connection protections.
Power-supply (3)	Power-supply shut-down and fault signals.
Payload control	Six Open-drain GP logic inputs.
Payload control (2)	Six open-drain GP logic outputs.
Integration operating temperature	-45 ºC to +85 ºC.
Integration size	87 mm x 87 mm x 10 mm.
Integration weight	60 grams
Integration power consumption	1,650 W.
Integration rad tolerant	TID of 20Krad.

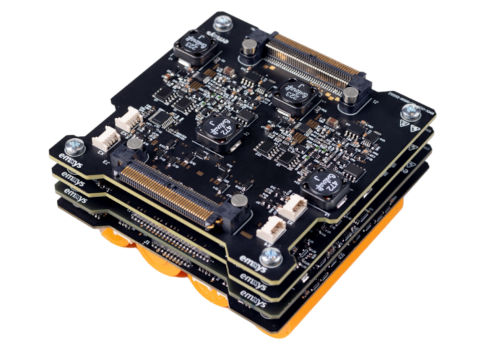

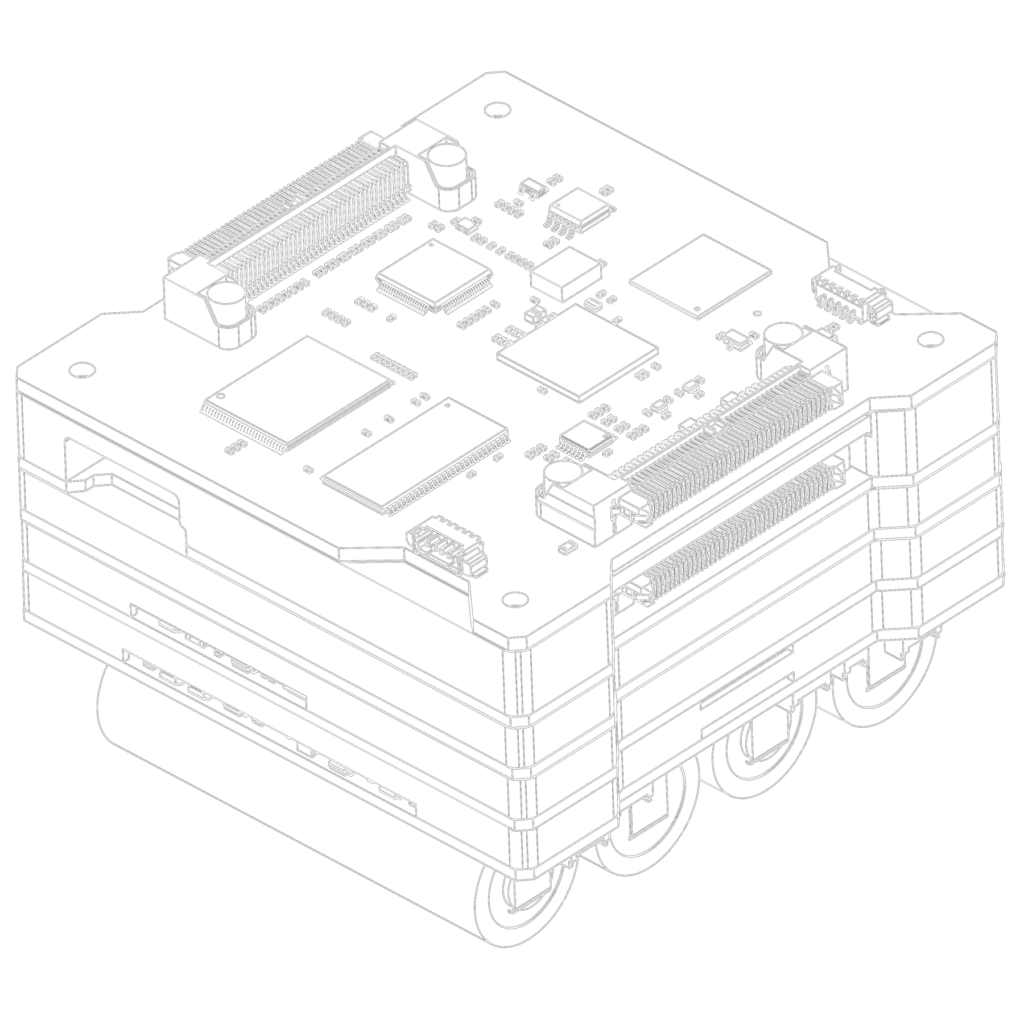

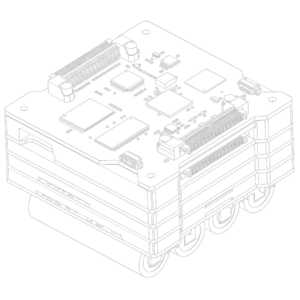

The ODALISS PDCU is a highly efficient Power Distribution and Control Unit designed for space avionics, featuring redundant Solar Array Regulators with MPPT and comprehensive battery protection.

5 22

Battery pack configuration	Dual 2s1p Li-Ion battery
Nominal voltage per battery	+7.4 V
Fully charged voltage per battery	+8.2 V
Fully charged current per battery	1 A
Maximum discharge current per battery	8 A
Capacity per battery	3450 mAh
Peak output power	36 W
Max. efficiency	95%
Output buses	Main and redundant independent un-regulated buses +7.4 V Nominal (+8.2 V Max.)
Bus operation	in independent or parallel configurations
Safety dual battery-powered regulated +3v3 bus	1.5 A max.
Regulated +5.0 v and +3.3v buses	1.5 A max. each
Built-in protection	overvoltage, undervoltage, overcurrent and short-circuit
Housekeeping signals	main and redundant batteries voltage, current and temperature, and the solar panel current generation
Control	via I2C bus
Remove before flight (rbf) switch	One with redundant circuitry
Kill/deployment switch per battery	One with redundant circuitry
Mechanical interface	compatible with ODALISS avionics buses and payloads
Operating temperature	-45 ºC to +125ºC
Dimensions	870 mm x 870 mm x 55 mm
Mass	360 grams
Volume	416.3 cm3

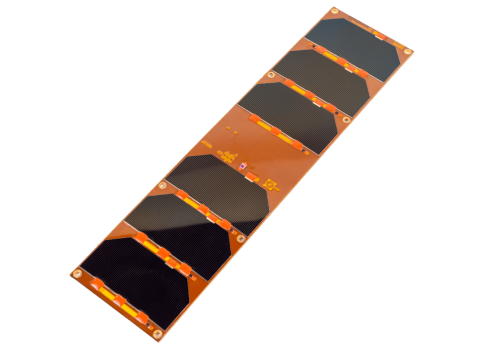

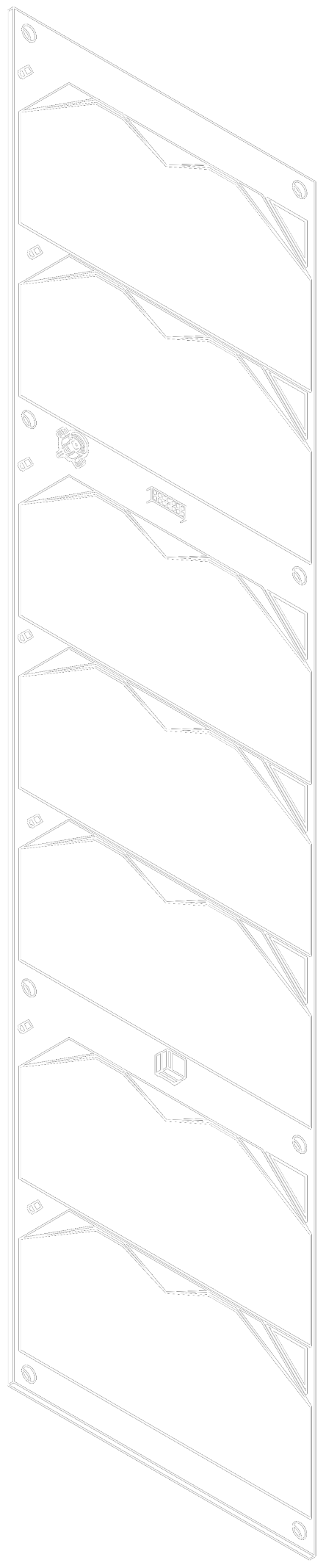

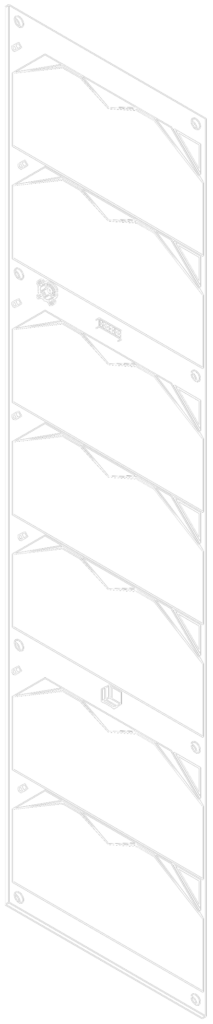

The ODALISS Solar Panels are highly efficient 3U/6U CubeSat compatible solar panels equipped with the latest triple junction technology and integrated temperature and sun sensors.

1 17

Cell efficiency	higher than 29%
Sensors	Integrated active linear temperature transducer.
Sensors (2)	High sensitivity Silicon photodiode included.
Connectors	Three 4-pin solar array power output for flexible panels interconnection.
Connectors (2)	One 4-pin for temperature sensor.
Connectors (3)	One 2-pin for Sun sensor.
Connectors (4)	Available with Remove Before Flight (RBF) pin and ODALISS Interface Port for power management and control interface.
Operating temperature	-45 ºC to +125 ºC
Dimensions (3U)	327.5 mm x 83.0 mm
Thickness (without connectors)	2.2 mm
Mass (3U)	123 grams
3u output voltage	14.7 V
3u specific power	66.6 W/Kg
3u peak BOL power	8.2 W
6u output voltage	33.6 V
6u specific power	53.3 W/Kg
6u peak BOL power	17.6 W

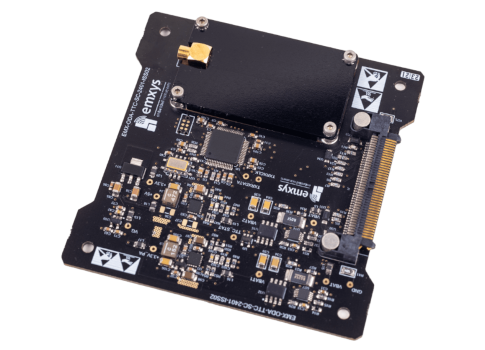

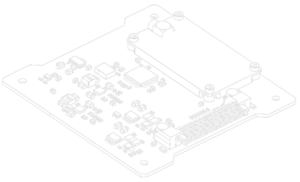

The ODALISS TTC is an embedded CubeSat radio communication module designed for space-to-ground communications, featuring a fully configurable half-duplex VHF/UHF transceiver.

5 21

Cpu	168 MHz ARM® 32-bit Cortex®-M4, STM32 processor unit
Power supply	Redundant power-supply from regulated and unregulated bus
Power supply range	+5.8 V to +8.4 V (+7.6 V nominal)
Control lines	TTC Enable and Status lines
Communication type	Half-duplex earth-space communications
Redundancy	Possibility to use a redundant TTC unit
Rx ber	<10-5
Rx sensibility	-110 dBm
Tx maximum output power	31 dBm (1.25 W)
Output frequency	Selectable within VHF and low UHF
Output radio frequency modulation	2FSK (alternatively 3FSK, 4FSK, and GMFSK)
Secondary output frequency	Possibility to configure on factory
Selectable baud rate	1200, 2400, 9600, 19200, 38400, 57600, and 115200
Transmitter/receiver protocol	AX.25
Beacon mode	2FSK Radioteletype (RTTY) ASCII-8. 50 bps
Min. freq.	200 MHz
Connector	One 80-pins high-speed backplane connector
Operating temperature	-45 ºC to +85 ºC
Dimensions	87 mm x 87 mm x 9.3 mm
Mass	41 grams
Serial logic interfaces	Two UARTS, I2C interface
