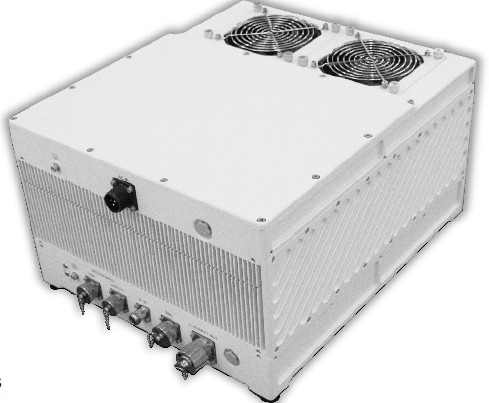

Block Up-Converter (BUC) — RGUC-A High Power, frequency 27.5-31 GHz (Many band options available), output 300W.
Typed specifications55 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- Ka TX · datasheet p.2
- Mass
- 30 000 g datasheet p.2 29 996.04 g
- Frequency range
- 950–1 950 MHz IF frequency · datasheet p.2 27 500–30 000 MHz RF Frequency | 27 500–31 000 MHz RF Frequency (optional) | 27 500–31 000 MHz RF frequency, optional | 27 500–30 000 MHz RF frequency, standard +2
- Envelope (L×W×H)
- 450x400x230 datasheet p.2
- TX RF output power
- 239.88 W PLin1 · datasheet p.2 190.55 W PLin2 | 151.36 W PLin3 | 302 W Rated | 1 800 W 51.4 dBm +2
- Supply voltage
- 200–240 V 50-60 Hz · datasheet p.2 200–240 V Input Power
- Power consumption
- 1 800 W nom. · Plin3 output, typ. · datasheet p.2 1 800 W @ Plin3 Output | 2 800 W @ Rated Output | 1 800 W Plin3 Output | 2 800 W Rated Output +1
- Data interface
- RS-232 datasheet p.2 RS232/485 M&C | RS-232 M&C connector PT02E-14-19P (RS232/485) | Ethernet RJ45, SNMPv2 | RS-485 +3
- Operating temperature
- -40–60 °C datasheet p.2
- Function
- other Block Up-Converter (BUC) · datasheet p.1
- Link use
- ground terminal satellite earth station / VSAT · datasheet p.1
- RF connector
- N IF input, N-Type Female · datasheet p.2 waveguide flange RF output WR28-G (Grooved) (optional) | waveguide flange RF output WR34-G (Grooved) | other RF Output, optional, WR28-G | other RF Output, WR34-G +2
- Connector
- Power ACS02E-16-10P; M&C PT02E-14-19P; Ethernet RJ45; Link PT02E-12-14S; Switch PT02E-12-14P datasheet p.2 RJ45 Ethernet | N-Type Female IF | PT02E-14-19P M&C | ACS02E-16-10P Power +5
- RF gain
- 70 dB min · small signal gain @ Prated-3dB · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier31 lines, in the manufacturer's own wording
- Frequency
- 27.5-31 GHz (Many band options available)
- Power/output
- 300 W
- Block up-converter (buc) KA-band
- 300 W
- Wr34 output4-m3 depth
- 6
- RF frequency
- 27.50-30.00 GHz (27.50-31.00 GHz optional)
- If frequency
- 0.95-1.95 GHz
- External ref
- 10 MHz, 0 ± 5 dBm
- Oscillator accuracy
- ±100 ppb typ.
- Oscillator stability
- ± 5 ppb typ.
- Output power rated
- 54.8 dBm
- Plin1
- 53.8 dBm
- Plin2
- 52.8 dBm
- Plin3
- 51.8 dBm
- Imd3 (@Prated-3dB)
- -25 dBc
- Small signal gain
- 70 dB min. @ Prated-3dB
- Gain adjustment
- 45-70 dB (25 dB, Step by 0.5 dB)
- Gain variation
- 0.1 dB p-p/MHz; 3 dB p-p/500 MHz; 4 dB p-p/1000 MHz
- Gain stability
- 2 dB p-p min
- Phase noise
- -63 dBc/Hz @100 Hz; -81 dBc/Hz @1 KHz; -85 dBc/Hz @10 KHz; -95 dBc/Hz @100 KHz
- Output spurious
- -60 dBc max.
- Harmonic
- -30 dBc max. @ Prated (-60 dBc with optional filter)
- Input power
- 200 to 240 VAC (50-60 Hz)
- Power consumption @rated
- 2,800 W typ.
- Power consumption @plin3
- 1,800 W typ.
- RF output connector
- WR34-G (Grooved), WR28-G (Grooved) optional
- RF output vswr
- 1.3:1
- Dimensions
- 17.72x15.75x9.05 in (450x400x230 mm)
- Mass
- 66.13 lbs (30 kg)
- Operating temperature
- -40 to +60 C
- Humidity
- 0-100% (condensing)
- Altitude
- 0-10,000 feet ASL
About
RevGo Global’s RGUC-A High Power is a block up-converter (buc) designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over 27.5-31 GHz (Many band options available) with rated output/class of 300W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
