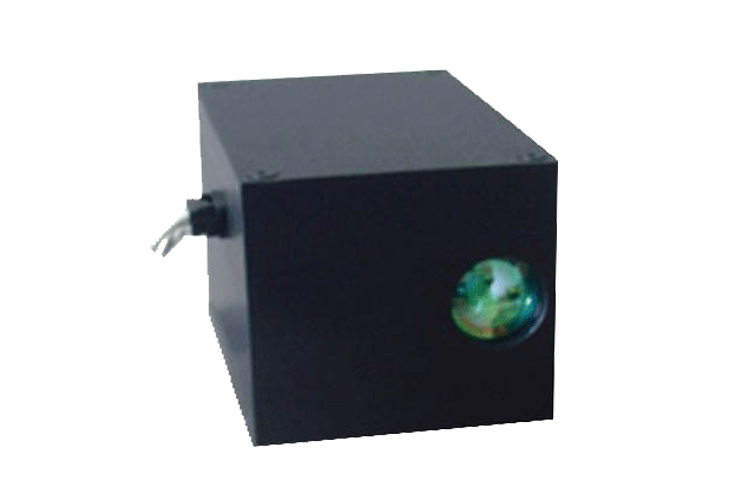

Argus 1000 Infrared Spectrometer
The Argus 1000 is a miniature, ruggedized infrared spectrometer with integrated optics designed for remote sensing applications, including environmental monitoring and process control, and has flight heritage in space.
Description
The Argus 1000 Infrared Spectrometer is an affordable, miniature device featuring integrated optics for remote sensing. It is suitable for applications such as environmental monitoring and process control. The spectrometer operates in the near-infrared band, with a standard range of 1000 nm to 1700 nm, and an extended range version capable of operating up to 2400 nm. It utilizes an actively cooled InGaAs detector array comprising approximately 100 illuminated elements. The ruggedized units have been flown in space and possess a mass of less than 230g.
Specifications
| Operating wavelength band (Standard) | 1000 nm to 1700 nm |
|---|---|
| Operating wavelength band (Extended) | up to 2400 nm |
| Detector type | InGaAs detector array |
| Detector elements | approximately 100 illuminated elements |
| Detector cooling | Actively cooled |
| Flight heritage | Flown in space |
| Type | Grating spectrometer |
| Configuration | Single aperture spectrometer |
| Field of View | 0.15° viewing angle around centered camera boresight with 15 mm fore-optics |
| Mass | ~280 g |
| Dimensions | 46 mm x 80 mm x 80 mm |
| Operating temperature | -20°C to +40°C operating temperature |
| Survival Temp. | -25°C to +50°C survival temperature |
| Detector | InGaAs diode arrays with Peltier cooler |
| Grating | 300 g/mm |
| Electronics | microprocessor controlled 10-bit ADC (co-adding feature to enhance precision to 13-bit, models 01-03), 3.6-4.2 V input ra |
| Operational Modes | Continuous mode, constant integration time with co-adding feature - Adaptive Exposure mode |
| Data Delivery | Fixed length parity striped packets of single or co-added spectra with sequence number, temperature, array temperature a |
| Interface | Serial interface RS232 protocol |
| Spectral Channels | 100 (typical) |
| Integration Time | 500 µs to 4.096 sec |
