OBC & Avionics — Space Hardware Marketplace

Pumpkin Motherboard Module (MBM) 2 Rev. F

A motherboard module designed to interface a BeagleBone Black (BBB) processor with a CubeSat Kit (CSK) bus, providing…

Pumpkin CubeSat Kit Motherboard Module 2 (MBM2)

• Hardware RevisionF
• Height0.600”
• Bus Connector104-pin CubeSat Kit™ Bus

A CubeSat Kit-compatible motherboard module designed to host a BeagleBone Black (BBB) single-board computer, serving as an on-board…

I/O LED Module

• SKU710-00521
• ClassificationDevelopment Hardware
• I/O signals monitored48 (IO.[47..0])

A CubeSat Kit development module that visually displays the status of all 48 bus I/O lines on LEDs…

Breakout Board Module

• SKU711-00380
• ClassificationDevelopment Hardware
• Breakout signals48 I/O signals (IO.[47..0]), 8 USER[7..0] signals, MHX signals, -RESET

A CubeSat Kit development module that breaks out all bus I/O, USER and MHX signals to headers compatible…

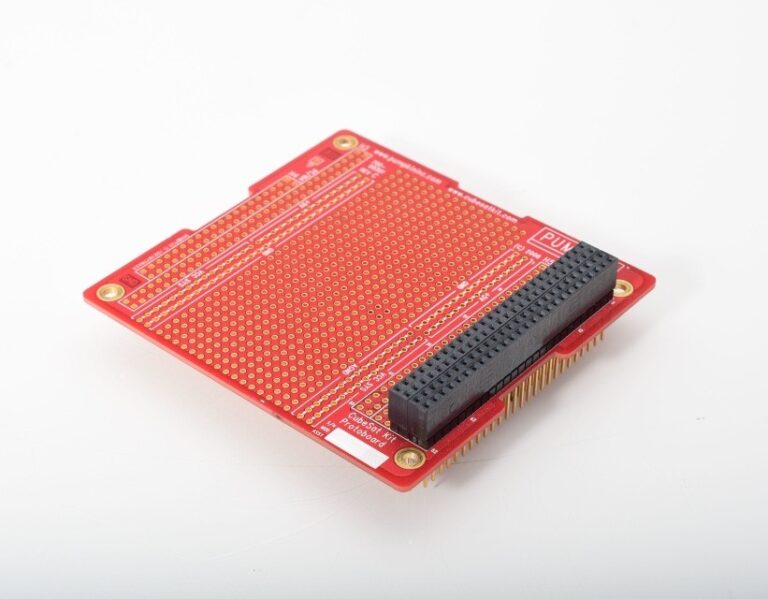

Protoboard Module Kit

• SKU711-00303
• CategoryPrototyping Hardware
• Grid pitch0.100"

A prototyping PCB module for the CubeSat Kit that lets engineers wire through-hole components into circuitry connected to…

Motherboard Module (MBM)

• Hardware classificationFlight Hardware | Flight Qualified | Space Proven
• Module height0.600 in (15.24 mm)
• Bus interfaceCubeSat Kit Bus standard, 104-pin connector

Pumpkin's flagship flight on-board computer carrier module: combined with a Pluggable Processor Module it forms a low-power 8-…

Development Board (DB)

• SKU710-00297
• Bus interfaceCubeSat Kit Bus standard, 104-pin connector
• Compatible processor modulesPPM A1, PPM A2, PPM A3, PPM B1, PPM D1, PPM D2, PPM E1

Pumpkin CubeSat Kit module that hosts a Pluggable Processor Module (PPM) to form a low-power 8- or 16-bit…

Development Board 2 (DB2)

• Bus connectorsTwo interconnected 104-pin CubeSat bus connectors with M3 standoffs
• Module stacks supportedTwo
• Debug header10-pin header for Total Phase I2C host adapters/protocol analyzers (I2C, first SPI bus signals, signal ground)

A simple development tool board for CubeSat modules conforming to the 104-pin CubeSat bus standard, used to characterize…

Motherboard Module 2 (MBM2)

1 GHz ARM Cortex-A8 Linux on-board computer module for CubeSats with 4.5× UARTs, I2C, SPI, Ethernet, RS-422, and…

Pluggable Processor Module A2 (PPM A2), with TI’s MSP430F1611

• SKU710-00486
• MCUTI MSP430F1611, 16-bit
• Internal Flash Memory48KB

Flight-qualified, space-proven pluggable command-and-data-handling processor module built around TI's MSP430F1611 16-bit MCU, for use with the CubeSat-compatible Motherboard…

CubeSat Kit Upgrade to MSP430

• SKU711-00716
• IncludesMSP-TS430PM64 Adapter with MSP430F2618/F1612/F1611; Pluggable Processor Module A3 (PPM A3) standard, A1 or A2 optional; JFPC-MSP430 Programming Adapter; TI MSP430 USB Flash Emulation Tool; Salvo Pro for TI's MSP430; MSP430 CubeSat Kit Software; HCC-Embedded MSP430 EFFS-THIN SD Card Library
• Required ToolchainCrossWorks for MSP430 (Rowley Associates), purchased separately

A hardware-and-software upgrade bundle that adds Texas Instruments MSP430 development and flight capability to an existing CubeSat Kit.

Pluggable Processor Module A3 (PPM A3), with TI’s MSP430F2618

• SKU710-00516
• MCUTI MSP430F2618, 16-bit
• Internal Flash Memory116KB

Flight-qualified, space-proven pluggable command-and-data-handling processor module built around TI's MSP430F2618 16-bit MCU, for use with the CubeSat-compatible Motherboard…

Pluggable Processor Module A1 (PPM A1), with TI’s MSP430F1612

• SKU710-00485
• MCUTI MSP430F1612, 16-bit
• Internal Flash Memory55KB

Flight-qualified, space-proven pluggable command-and-data-handling processor module built around TI's MSP430F1612 16-bit MCU, for use with the CubeSat-compatible Motherboard…

CubeSat Kit Upgrade to C8051

• SKU711-00717
• IncludesPluggable Socketed Processor Module B (PSPM B) with C8051F120; Pluggable Processor Module B1 (PPM B1); JFPC-C8051 Programming Adapter; Silicon Labs USB Debug Adapter; Salvo Pro for 8051 family; 8051 CubeSat Kit Software; HCC-Embedded C8051 EFFS-THIN SD Card Library
• Required ToolchainKeil PK51 Professional Developer's Kit (purchased separately)

A hardware-and-software upgrade bundle that adds Silicon Labs C8051F120 development and flight capability to an existing CubeSat Kit.

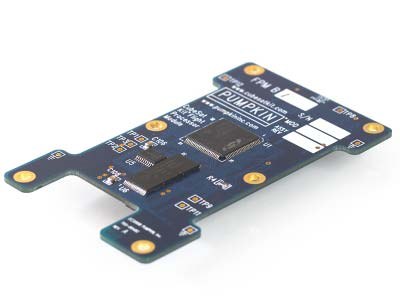

Pluggable Processor Module B1 (PPM B1)

• SKU710-00487
• MCUSilicon Labs C8051F120, 8-bit, soldered in place
• Internal Flash Memory128KB

Flight-qualified, space-proven pluggable command-and-data-handling processor module built around Silicon Labs' C8051F120 8-bit MCU, for use with the CubeSat-compatible…

Pluggable Socketed Processor Module B (PSPM B)

• SKU710-00607
• MCUSilicon Labs C8051F120, 8-bit, in 100-pin ZIF socket
• Internal Flash Memory128KB

A socketed development version of Pumpkin's C&DH processor module built around Silicon Labs' C8051F120 8-bit MCU, for use…

CubeSat Kit Upgrade to PIC24 (PIC24FJ256GB210)

• SKU711-00795
• Hardware/software classificationDevelopment Hardware | Development Software | Flight Hardware | Flight Qualified | Space Proven
• Included componentPluggable Socketed Processor Module E (PSPM E) with PIC24FJ256GB210

A software and hardware upgrade package adding Microchip PIC24FJ256GB210 support to an existing CubeSat Kit purchase, for customers…

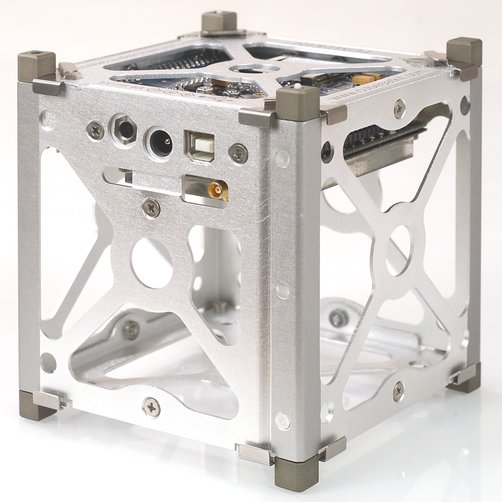

CubeSat Kit Upgrade to PIC24 (PIC24FJ256GA110)

• SKU711-00718
• Hardware/software classificationDevelopment Hardware | Development Software | Flight Hardware | Flight Qualified | Space Proven
• Included componentPluggable Socketed Processor Module D (PSPM D) with PIC24FJ256GA110

A software and hardware upgrade package adding Microchip PIC24FJ256GA110 support to an existing CubeSat Kit purchase, for customers…
