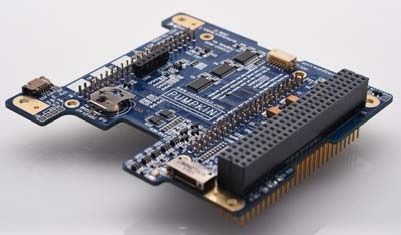

Pumpkin CubeSat Kit Motherboard Module 2 (MBM2)
Pumpkin, Inc.
A CubeSat Kit-compatible motherboard module designed to host a BeagleBone Black (BBB) single-board computer, serving as an on-board computer for nanosatellites and similar equipment.
Typed specifications58 values
Discloses 5 of 13 fields engineers filter by in this category (category median 5).
- Processor
- BeagleBone Black (BBB) SBC datasheet p.1
- Mass
- 34 g typ. · datasheet p.8 34 g
- Envelope (L×W×H)
- 90 mm (length) x 96 mm (width) x 11 mm (height of components above PCB) datasheet p.8
- Operating system
- Linux datasheet p.1 Linux custom Linux-based image on BBB, uses systemd
- Supply voltage
- 5 V nom. · +5V_SYS system power, BBB operates from +5Vdc · datasheet p.7 5 V +5V_SYS bus | 6 V max · maximum external dc voltage on +5V_SYS or to P1 on BBB
- Data interface
- UART datasheet p.1 I2C 1x I2C on CSK Bus Connector | SPI 1x SPI on CSK Bus Connector; on-board SD Card interface (SPI … | UART 4.5x UART on CSK Bus Connector; UART0 breakout on 4-pin FPC c… | GPIO 6x GPIO on CSK Bus Connector; 5x GPIO on 6-pin DF13 connector +11
- Operating temperature
- -40–85 °C absolute maximum ratings, operating temperature TA · datasheet p.8
- Board format
- CubeSat Kit bus for use with 104-pin CubeSat Kit Bus, stackable · datasheet p.1 PC/104 PC/104-size footprint; corner hole pattern matches PC/104 | PC/104
- Flight software support
- Pumpkin FSW SupMCU service (part of Pumpkin GUTS FSW), drivers for BBB and MBM2 peripherals, Python 3.10.9 & Perl 5.34 pre-installed, GraphQL endpoint datasheet p.3 Python | Perl
- Radiation and fault mitigation
- latch-up protection (current limiting) independent latchup (device overcurrent) protection on critic… · datasheet p.1 hardware watchdog on-board -RESET & OFF_VCC-driven WDT interface; an external w… | hardware watchdog | other Power-on fully protected I/O
- Connector
- 104-pin CubeSat Kit Bus datasheet p.1 1x6 SIP header | 2.1/5.5mm barrel jack | 25-pin high-density PHY connector | 6-pin DF13 connector +6
- Satellite class
- CubeSat CubeSat nanosatellites, SUPERNOVA nanosatellites · datasheet p.1
- GPIO lines
- 5 on 6-pin DF13 connector J133 · datasheet p.1 6 on CSK Bus Connector (five general-purpose outputs and one ge… | 5 | 5 | 1 +3
- Data interface speed
- 20 Mbps PHY connector RS422: TI SN65HVD73 (20Mbps) transceivers · datasheet p.6
- Analog inputs
- 7 7x analog input (0-1.8Vdc) on CSK Bus Connector · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Hardware revision
- F
- Height
- 0.600”
- Bus connector
- 104-pin CubeSat Kit™ Bus
- Footprint
- PC/104-size
- Uarts on csk bus connector
- 4.5x
- SPI on csk bus connector
- 1x
- I2C on csk bus connector
- 1x
- Gpio on csk bus connector
- 6x
- Analog input on csk bus connector
- 7x (0-1.8Vdc)
- Rs422+lvttl UART/SPI/gpio connector
- 25-pin high-density PHY connector
- Gpio on df13 connector
- 5x (6-pin DF13 connector)
- Uart0 breakout
- 4-pin FPC connector
- PCB layers
- 6-layer
About
The Motherboard Module 2 (MBM2) is a CubeSat Kit (CSK)-compatible host for the COTS BeagleBone Black (BBB) Rev C single-board computer and compatible variants. When installed onto an MBM2, the BBB interfaces to the CSK electrical bus via standardized signals. It includes additional features like a Real-Time Clock (RTC) with battery backup and a full-size SD Card operating in SPI mode. This MBM2+BBB combination can serve as the on-board computer (OBC) for a wide range of small satellites and similar equipment. The BBB comes pre-installed with a custom Linux-based image, including Pumpkin’s FSW SupMCU service, drivers for BBB and MBM2 peripherals, Python, and Perl. It supports multiple +5V power sources (auto-selected), BBB Ethernet, USB host & device ports, and various I/O on the CSK Bus Connector and other connectors. The module features power-on fully protected I/O, on-board reset circuitry, independent latchup protection, and a 6-layer gold-plated blue-soldermask PCB with a ground plane for enhanced signal integrity. Hardware revision F was initially released on 20200712.
