CIS 300 Imager Control System

• SensorTeledyne e2v CIS 300
• FormatUp to 9k x 9k pixels
• Data Lines12

Imager control system for the Teledyne e2v CIS 300 sensor, supporting up to 9k x 9k pixel formats.

ChromaD Imager Control System

• SensorTeledyne e2v CHROMA-D (stitched SWIR detector for satellites)
• MonitoringBuilt-in temperature monitoring; voltage/current monitoring with automated shutdown
• Data InterfaceUSB 3

Imager control system for the Teledyne e2v CHROMA-D stitched SWIR satellite detector.

CIS 120 Imager Control System

• SensorTeledyne e2v 'Capella', 2k x 2k back-illuminated, 10 µm pixels
• ApplicationsVisible, UV, and EUV
• Noise3 e⁻ rms

Plug-and-play imager characterisation and control system for the Teledyne e2v Capella sensor.

CIS 125 Imager Control System

• SensorTeledyne e2v CIS 125 TDI
• FunctionalityTDI CCD functionality on a CMOS chip
• Data Lines20 lines for full format support

Imager control system for the Teledyne e2v CIS 125 TDI sensor with full-format Ethernet readout.

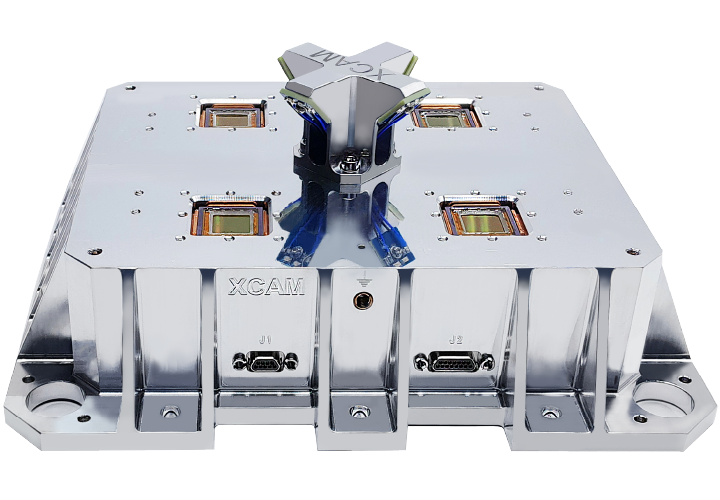

Space PFO

• Total Detection Area4 cm2
• Sample RateEvery 10 seconds (minimum)
• Minimum Detectable Particle Size5 um (100% detection)

ESA-funded autonomous particulate contamination monitor for space launch vehicle fairings, detecting particles from 5 um during ascent.

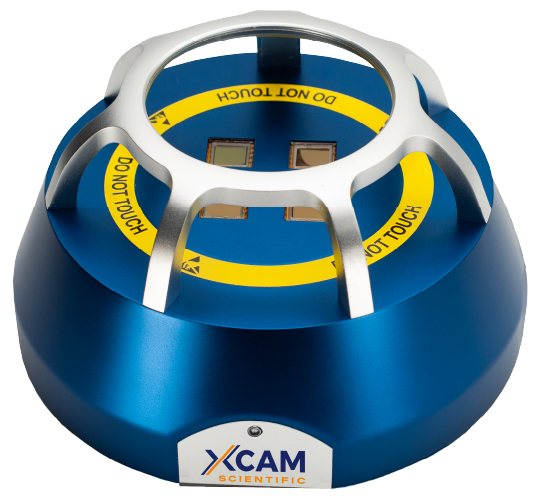

PFO 1040

• Total Detection Area4 cm2
• Sample Rate10 per hour
• Particle Detection Range5 to >750 um

Real-time particle fallout monitor for cleanrooms using Direct Particle Detection (DPD) technology, sampling 4 cm2 at up to…

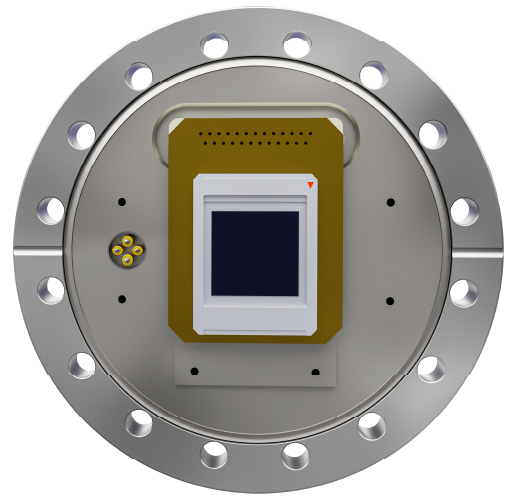

CAVACam

• Vacuum CompatibilityUHV / XHV / UCV
• Detector TypesCCD, EMCCD
• IlluminationFront-illuminated (FI) and back-illuminated (BI)

Customisable CCD/EMCCD vacuum camera system for UHV/XHV environments, available in flange-mounted or hermetically sealed immersible configurations.

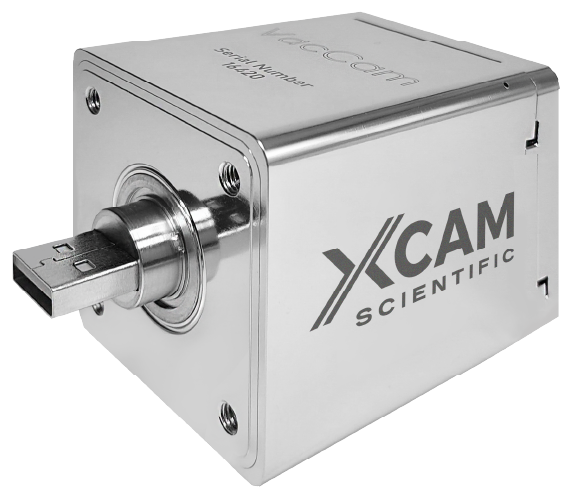

VacCam

Compact USB in-vacuum video camera for monitoring processes inside vacuum chambers, rated to 10e-6 mbar with built-in LED…

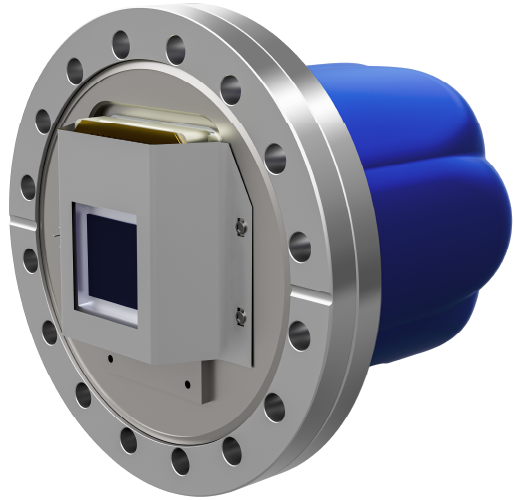

RIXSCam Mini

• Total Active Area26.11 x 25.73 mm
• Active Pixels (H x V)1632 x 1608 pixels
• Pixel Size16 x 16 um

Compact single-EMCCD soft X-ray detector for RIXS experiments with Peltier cooling and sub-5 um centroided spatial resolution.

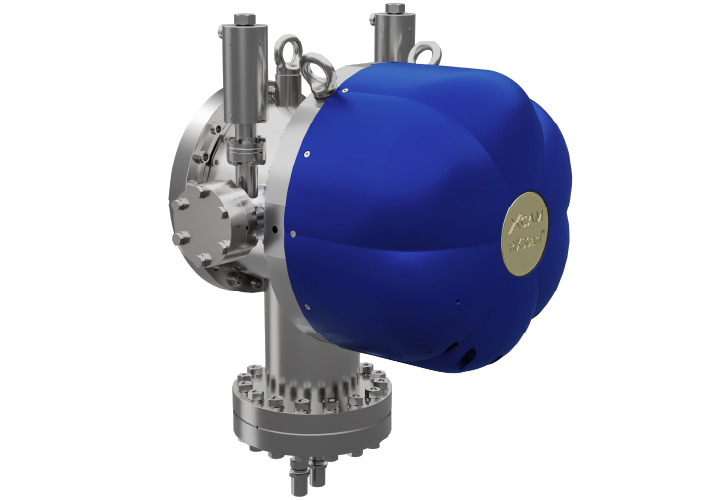

RIXSCam

• Maximum Active Area78.33 x 25.73 mm
• Active Pixels (H x V)4896 x 1608 pixels
• Pixel Size16 x 16 um

Multi-EMCCD soft X-ray detector system for RIXS synchrotron experiments, achieving single-photon detection with sub-5 um spatial resolution.

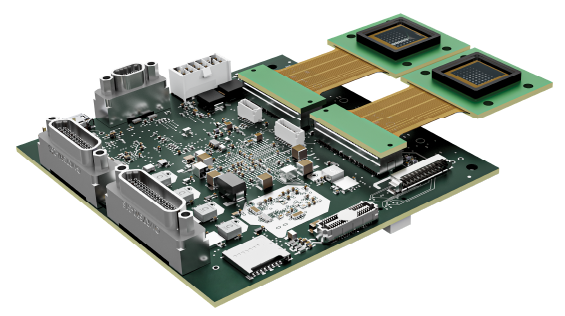

NuSCIS Space Camera

Compact multi-sensor SmallSat/CubeSat imaging payload with CAN-Bus and SpaceWire interfaces, supporting CMOS, CCD, and EMCCD detectors.

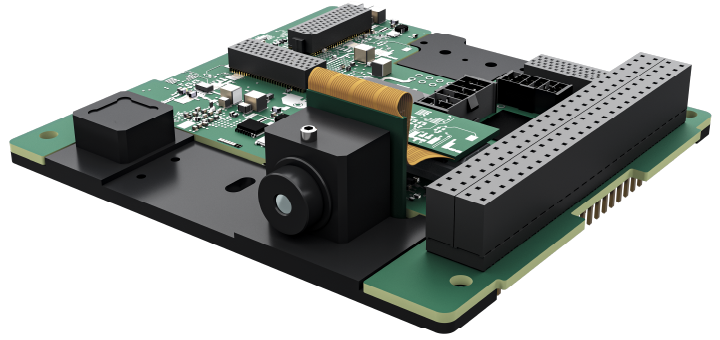

C3D CubeSat Camera

Space-qualified modular CubeSat imaging system supporting up to three CMOS sensors with TRL 9 flight heritage since 2014.

XMA 3001-6100-00 N-Type Termination

Stainless steel N-male 50-ohm termination/load, DC-18 GHz, 2W.

XMA XMAPD10-2-8-4S 4-Way Power Divider

Stainless steel SMA 4-way power divider, 2-8 GHz, 10W, for satellite and telecom RF distribution.

XMA 2001-61XX-0X-CRYO Cryogenic SMA Termination

Cryogenic-qualified SMA male termination/load, up to 26.5 GHz, 1W, stainless steel or gold-plated.

XMA OS2020-6604-06 Directional Coupler, 1-2 GHz

Stainless steel SMA directional coupler, 1-2 GHz, 50W, 6 dB coupling, DFARS-compliant.

XMA OS2020-6610-20 Directional Coupler, 2-4 GHz

Stainless steel SMA directional coupler, 2-4 GHz, 50W, 20 dB coupling, DFARS-compliant.

XMA OS6790-6065-02 2-Way Power Divider

Stainless steel 1.85mm 2-way power divider, 10-65 GHz, 10W, for wideband RF signal distribution.
