1U CubeSat Vibration Shaker Test Jig
CubeSat Aerospace
The 1U CubeSat Vibration Shaker Test Jig is a precision mounting fixture designed for securing 1U CubeSats during sine, random, and shock vibration tests to qualify them for launch environments.
Key figurescomparable across the catalogue
- Mass
- 2.5 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Supported CubeSat Size
- 1U (100 mm × 100 mm × 113.5 mm)
- Material
- CNC-machined Aluminum and Steel (vibration-resistant)
- Mounting System
- Clamping or bolted rail interface with anti-slip surface
- Mounting System
- Multiple base slots for vibration table compatibility
- Interface Type
- Compatible with slip table and vertical shaker configurations
- Mass
- Approx. 2.5–3.0 kg
- Compliance
- Supports testing to NASA GEVS and MIL-STD-1540 standards
- Compliance
- Works with CDS-compliant CubeSat rail structures
- Customization
- Adapter plates available for 1.5U, 2U, and 3U
About

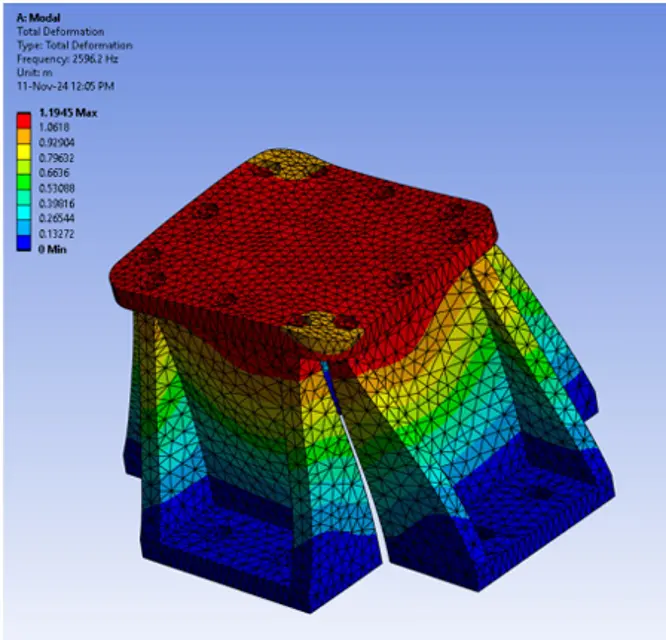

The 1U CubeSat Vibration Shaker Test Jig by CubeSat Aerospace is a precision mounting fixture designed for securing CubeSats during sine, random, and shock vibration tests. It ensures proper alignment, consistent clamping, and reliable mechanical coupling with vibration tables, enabling qualification of the satellite for launch environments. This vibration test jig is used to mount and secure a 1U CubeSat onto a shaker system for dynamic environmental testing. It replicates flight-like mounting conditions, ensuring the satellite endures launch-level vibrations without movement or misalignment. The fixture is vibration-qualified itself and built to avoid resonance or energy absorption during test runs. Key benefits include rigid and balanced mounting for accurate vibration transmission, compatibility with vertical and horizontal vibration systems, support for sine, random, and shock vibration profiles, CNC-machined from vibration-tolerant materials, and easy adaptability for different CubeSat sizes with add-on plates. It is used for qualification, acceptance, and educational testing. It is built to support NASA GEVS and MIL-STD-1540 vibration testing protocols, has been used in successful CubeSat flight qualification campaigns, bench-tested for mechanical integrity and fit with 1U structure, and validated for use in university and commercial test labs. It comes with a one-year limited warranty against manufacturing defects and technical support is available for shaker integration and test setup.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
