1U Solar Panels
CubeSat Aerospace

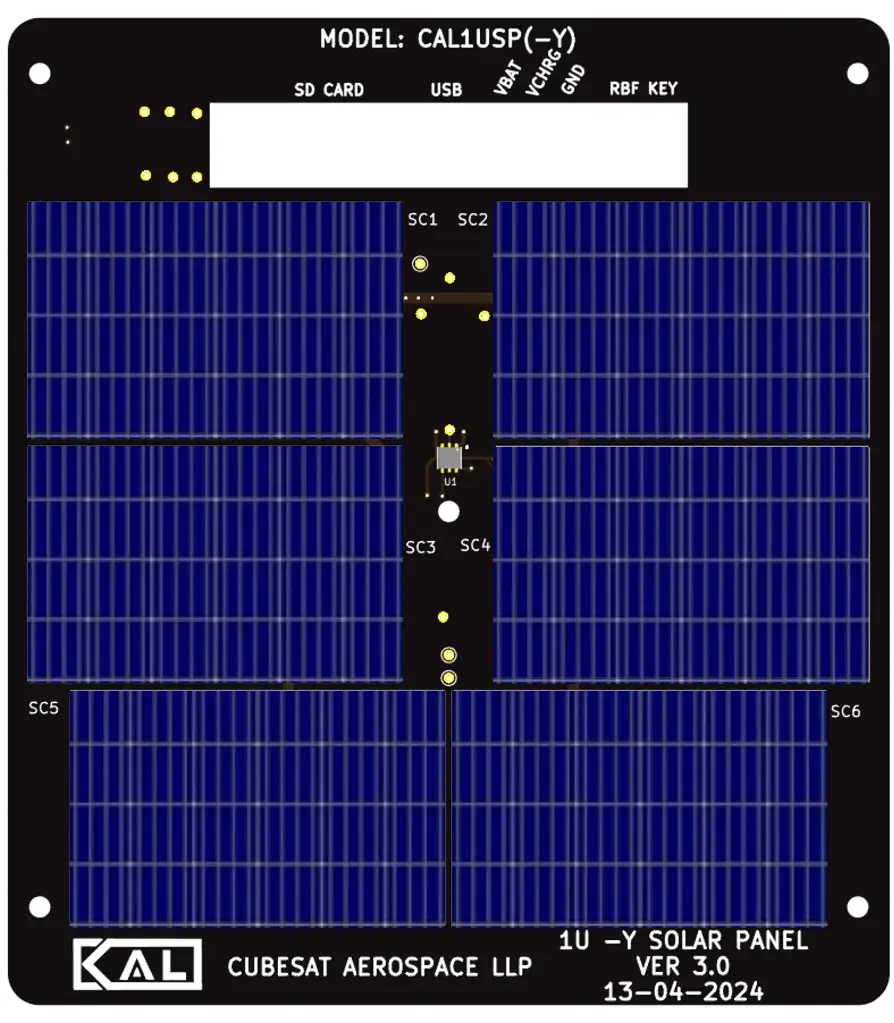

The 1U Solar Panels from CubeSat Aerospace are high-efficiency power generation modules designed for small satellites, integrating solar cells, magnetic torquers, and sun sensors into a compact PCB form factor.
Typed specifications2 values
Discloses 0 of 12 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- Sized to fit standard 1U CubeSat side panels product page
- Connector
- 10-pin FFC connector for each panel product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Panel type
- Custom PCB-based solar panel
- Solar cells
- Mono-crystalline high-efficiency cells
- Output voltage
- 11.5 V (regulated via avionics board)
- Power output
- Up to 1 W per panel (depending on illumination)
- Mounting faces
- X+, X–, Y+, Y–, Z+, Z– (6 panels for full 1U coverage)
- Connectors
- 10-pin FFC connector for each panel
- Integrated components
- Thin-film magnetic torquer coil (1 per panel)
- Integrated components (2)
- Analog sun sensor (1 per panel)
- Dimensions
- Sized to fit standard 1U CubeSat side panels
- Material
- Rigid PCB with space-grade conformal coating
About
The 1U Solar Panels from CubeSat Aerospace are high-efficiency power generation modules designed for small satellites. These flight-ready panels integrate solar cells, magnetic torquers, and sun sensors into a compact PCB form factor, directly interfacing with the avionics system for streamlined CubeSat power and attitude operations. Designed specifically for 1U CubeSats, these solar panels offer more than just power—they integrate attitude control and sun sensing in a lightweight, low-profile assembly. Each panel includes a magnetic torquer coil and sun sensor routed to the avionics board via FFC, reducing wiring complexity and improving system reliability. Optimized for high solar efficiency and full 6-face coverage. Key benefits include high-efficiency mono-crystalline solar cells, integrated magnetic torquer and sun sensor on every panel, 6-sided coverage for consistent power generation, FFC connection for simplified electrical integration, and a PCB-based design ensuring lightweight, low-profile deployment. They are compatible with CubeSat Aerospace’s avionics system. Certifications include bench-testing for voltage, current, and continuity, functional verification with CubeSat Aerospace avionics board, compliance with PCB, connector, and layout standards for 1U CubeSats, and flight-like integration verified in full-stack assembly tests. A one-year limited warranty against manufacturing defects is provided, along with technical support for power budgeting, wiring, and integration.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
