Pulsar-UTRX
AAC Clyde Space

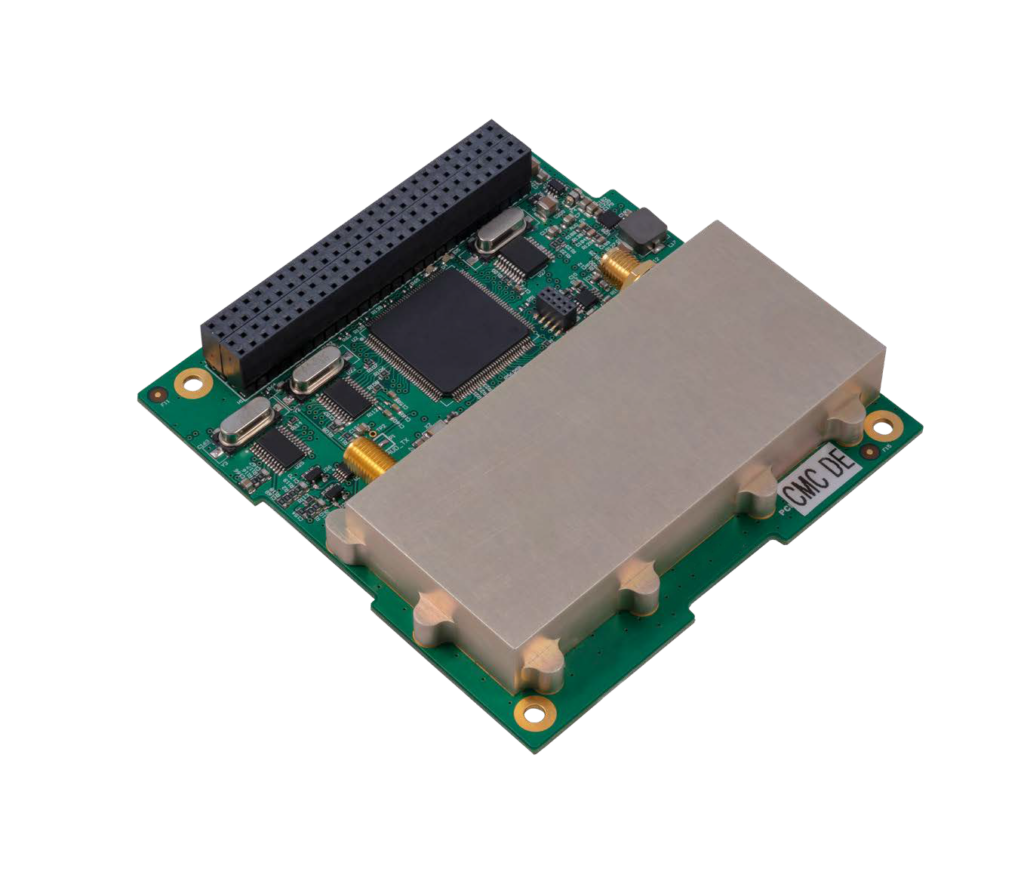

The Pulsar-UTRX is a UHF/VHF transceiver designed for CubeSats and small satellites, providing reliable uplink and downlink communication.
Typed specifications39 values
Discloses 11 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- UHF TX and RX · datasheet p.1 UHF UHF uplink & downlink
- Mass
- 100 g max · datasheet p.3
- Frequency range
- 430–440 MHz UHF, UTRX-A · datasheet p.2 400–420 MHz UHF, UTRX-C | 430–440 MHz
- Envelope (L×W×H)
- 96 mm x 90 mm x 16.51 mm datasheet p.3
- TX RF output power
- 0.501 W datasheet p.2 0.501 W min · in 3 dB steps | 2 W max · in 3 dB steps
- Data rate
- 1.2 kbps AFSK · datasheet p.2 9.6 kbps GMSK
- RX sensitivity
- -115 dBm for 12 dB SINAD · datasheet p.3
- Modulation
- GMSK datasheet p.2 AFSK 1200 baud | GMSK 9600 baud | AFSK
- Supply voltage
- 3.3 V nom. · datasheet p.2 3.3 V | 5 V nom.
- Power consumption
- 3 W Transmit DC Power · datasheet p.3 0.24 W max · Receive DC Power
- Data interface
- I2C datasheet p.2 I2C I2C bus 400 kHz, telemetry, command and user data
- Operating temperature
- -25–61 °C datasheet p.2
- Function
- transceiver datasheet p.1
- Link use
- TT&C telemetry and command radio · datasheet p.1
- Link protocol
- AX.25 datasheet p.2 CCSDS
- Power draw, receive
- 0.24 W max · receive · datasheet p.2
- Power draw, transmit
- 3–5.1 W transmit, 27-33 dBm · datasheet p.2
- Satellite class
- CubeSat datasheet p.1 nanosat 1-10 kg nanosatellite missions
- Duplex
- half datasheet p.1
- Channel coding (FEC)
- convolutional (Viterbi) 1/2 rate CCSDS convolutional encoding (k=7), transparent mode · datasheet p.2
- Channel bandwidth
- 12.5 kHz receive, channel spacing · datasheet p.2 25 kHz transmit, channel spacing
- Board format
- PC/104 CubeSat Kit PC/104 form factor · datasheet p.1
- Noise figure
- 2.5 dB max · receive · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Operating temperature
- -25 to +61 C
- Mass
- <100 g
- Supply voltage
- 3.3 V, 5 V
- Frequency (UTRXC)
- 400-420 MHz
- Frequency (UTRX)
- 430-440 MHz
- Transmit DC power
- 3-5.1 W
- RF power
- 27-33 dBm in 3 dB steps
- Receive DC power
- <240 mW
- Sensitivity
- -115 dBm for 12 dB SINAD
- Modulation
- GMSK 9600 baud, AFSK 1200 baud
- Protocol
- AX.25, transparent mode
- Dimensions
- 96 x 90 x 16.51 mm
About
The Pulsar-UTRX transceivers are ideal for space missions where reliable uplink and downlink is required. They can also be used as a robust lower data-rate back-up radio for a higher data-rate radio. This product is part of AAC Clyde Space’s communication solutions for CubeSats and small satellites, emphasizing reliability and functionality for critical space-based communication needs.
