XTX-DVBS2
ADDNICS Corporation
The XTX-DVBS2 is an X-band transmitter designed for satellite operations, featuring DVB-S2 and CCSDS encoding with a transmission output of up to 0.4W.
Typed specifications3 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- 80mmx80mmx49.5 mm product page
- Modulation
- QPSK product page 16APSK
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Dimensions
- 80mmx80mmx49.5 mm
- Mass
- Under 500 g
- Transmit power
- ~0.4 W
- Transmit frequency
- Single specified X-band frequency (fixed at order)
- Channel coding standard
- CCSDS、DVB-S2
- Modulation
- QPSK,16-PSK
- Symbol rate
- ~50Msps
- Power supply
- +22 V~+34 V
- Power consumption
- Under 16 W
- Options
- Mounting Bracket
About

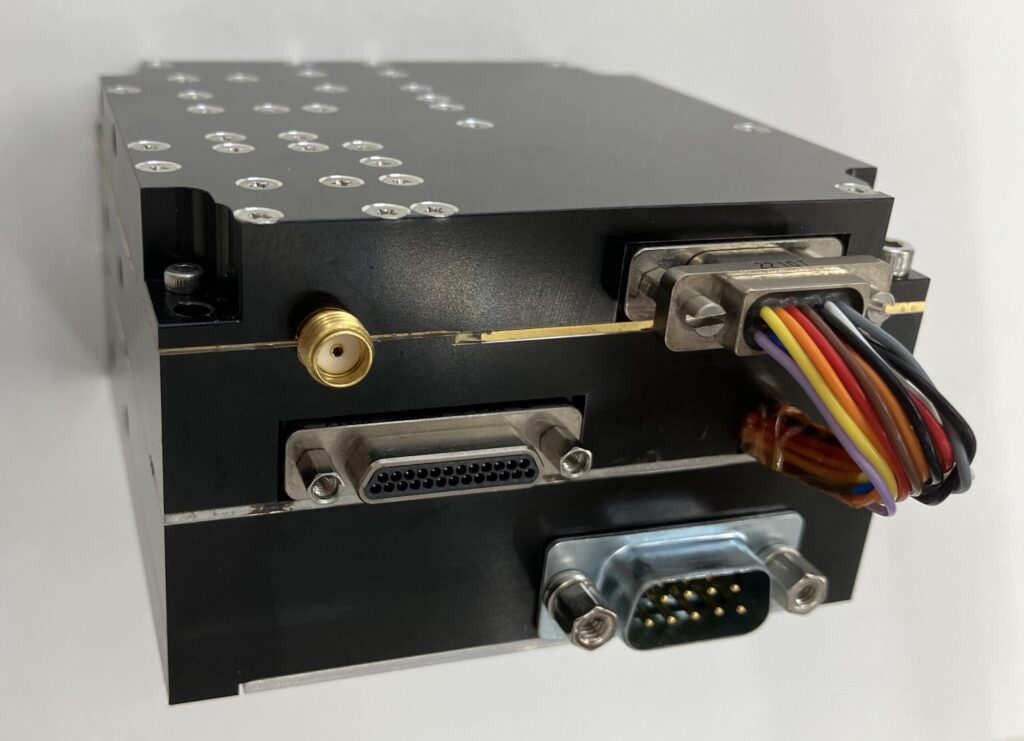

The XTX-DVBS2 is a compact X-band transmitter developed for satellite communication applications. It supports both CCSDS and DVB-S2 transmission encoding standards, making it versatile for various space missions. The transmitter operates within a specified X-band frequency, which is determined at the time of order. It offers modulation schemes including QPSK and 16-PSK, with a symbol rate of up to 50 Msps. The unit is designed to be lightweight, weighing less than 500g, and has a compact form factor of 80mm x 80mm x 49.5mm. It requires a power input between +22V and +34V and consumes less than 16W. An optional mounting bracket is available to facilitate integration into satellite platforms.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
