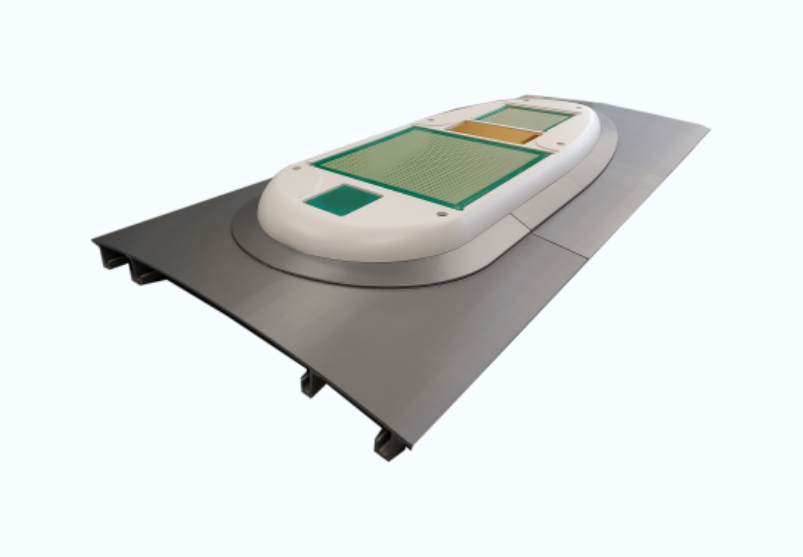

LEOLINK200 Ka-Band High-Capacity Beam Steering Antenna
ReliaSat
The LEOLINK200 is a 1024-element Ka-band electronically steerable phased array antenna with +/-60 degree scan coverage, TX 27.5-31 GHz and RX 17.7-21.2 GHz, offering high sidelobe suppression for LEO satellite broadband connectivity on aviation, maritime, and mobile platforms.
Typed specifications58 values
Discloses 8 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- Ka datasheet p.1 Ka Receive 17.7-21.2 GHz | Ka Transmit 27.5-31 GHz
- Peak gain
- 34 dBi Receive, 0° scan · datasheet p.2 34 dBi Receive, 0O scan | 30 dBi Receive, 60° scan | 30 dBi Receive, 60O scan | 34 dBi Transmit, 0° scan +3
- Mass
- 2 500 g datasheet p.3
- Frequency range
- 17.7-21.2 receive · datasheet p.2 27.5-31 transmit | 17 700–21 200 MHz Receive | 27 500–31 000 MHz Transmit
- Beamwidth (-3 dB)
- 3.6 ° HPBW Receive, 0° scan · datasheet p.2 6.2 ° HPBW Receive, 60° scan | 3.4 ° HPBW Transmit, 0° scan | 5.9 ° HPBW Transmit, 60° scan | 3.6 ° HPBW, Receive, 0O scan +3
- Envelope (L×W×H)
- 810 x 320 x 50 mm datasheet p.3
- Polarization
- circular datasheet p.1 LHCP, RHCP Receive | LHCP, RHCP Transmit | RHCP transmit
- Antenna type
- phased array datasheet p.1 phased array The antenna is of phased array design
- Supply voltage
- 12–50 V datasheet p.3 12–50 V DC Power Supply
- Data interface
- other Asynchronous · datasheet p.3 other NMEA | other UBX
- Operating temperature
- -60–120 °C datasheet p.3 -60–120 °C Temperature Range
- RF connector
- 2.92 mm Receive section, 2.92 (K) · datasheet p.2 other receive, 2.92 (K) mm | SMA Transmit section, Rugged SMA
- Fixed or deployable
- fixed datasheet p.1
- Connector
- RG45 Interface · datasheet p.3 2.92 (K) mm RF Receive | Rugged SMA RF Transmit
- Satellite class
- microsat 10-100 kg datasheet p.1
- Beam steering
- electronic (phased array) Omnidirectional +60 degree scan angle · datasheet p.1
- Axial ratio
- 3 dB max · over bandwidth · datasheet p.2
- Max RF power
- 0.001 W transmit, max RF input power · datasheet p.2 0.001 W max · RF Input Power (Maximum) | 0.001 W max · Transmit Section
- Scan range
- 60 ° Steering Angle ±60° · datasheet p.2
- VSWR, max
- 2 Receive Section · datasheet p.2 2 Transmit Section | 2 max · RF Port VSWR <2
- G/T
- 10 dB/K max · Receive section, printed as <10 · datasheet p.2
- EIRP
- 46 dBW Transmit, 0° scan · datasheet p.2 42 dBW Transmit, 60° scan
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Tx frequency
- 27.5-31 GHz
- Rx frequency
- 17.7-21.2 GHz
- Array elements
- 1024
- Scan angle
- +/-60 degrees (azimuth and elevation)
- Polarization
- Circular
- Sidelobe control
- Complex tapering algorithm
- Profile
- Flat panel, low profile
About
The LEOLINK200 is a large-aperture Ka-band electronically steerable beam phased array antenna featuring 1024 elements, designed for high-capacity LEO satellite communications. It operates with TX at 27.5-31 GHz and RX at 17.7-21.2 GHz, supporting scan angles of +/-60 degrees in both azimuth and elevation across a flat panel form factor suitable for conformal integration on aircraft, ships, and ground vehicles.
The antenna employs complex amplitude tapering algorithms to achieve very high sidelobe suppression, which is essential for compliance with ITU satellite frequency coordination requirements and for multi-satellite coexistence in dense LEO constellation environments. The circular polarization design ensures performance across wide beam scan angles without significant axial ratio degradation.
The LEOLINK200 interfaces directly with any commercial SDR or satellite modem and optionally includes a dedicated control board. It is designed for aviation, maritime, ground mobile, and fixed broadband terminal platforms serving LEO, MEO, and GEO satellites. The higher element count relative to the LEOLINK64 provides substantially greater EIRP and G/T for high-throughput applications such as in-flight connectivity, ship broadband, and enterprise-grade mobile terminals.
