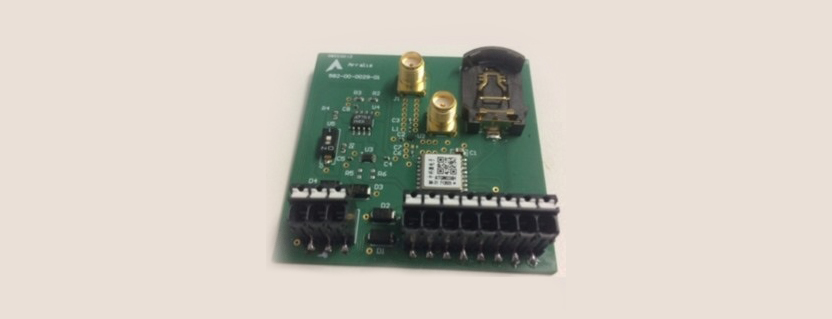

Multiband GNSS OEM Receiver Board M-GNSSB-RX
Arralis
The M-GNSSB-RX is a compact multiband GNSS OEM receiver board supporting GPS L1 and BeiDou B1 with RTK correction capability, UART and RS-485 interfaces, and 3.3-5 V supply for defense, transportation, and precision navigation applications.
Typed specifications29 values
Discloses 6 of 12 fields engineers filter by in this category (category median 5).
- Envelope (L×W×H)
- 58mm x 58mm datasheet p.2 58 x 58 mm receiver dimensions, Figure 2
- Constellations
- GNSS bands L1 and B1 datasheet p.1 BeiDou
- Supply voltage
- 3.3 V nom. · 3.3V d.c. supply connected at J4_1, ground at J4_3; can be ru… · datasheet p.1 3.3 V | 5 V RS485 option | 5 V RS485 output | 5 V nom. · additional 5V d.c. supply required for the RS485 option, J4_2 +4
- Power consumption
- 0.083 W typical · datasheet p.1 0.083 W typical
- Data interface
- RS-485 datasheet p.4 RS-485 RS485 option fitted on the board; positional output on J3_7 (… | UART UART output with R5 and R6 removed, signals on J4_4 and J4_5 | UART | UART
- Operating regime
- ground applications: transportation (road, rail, harbour traffic, HG… · datasheet p.1
- Signals and bands
- L1 operation over GNSS bands L1 and B1 · datasheet p.1 B1 operation over GNSS bands L1 and B1
- Connector
- J4 datasheet p.1 J1
- PPS output
- yes 1PPS signal on receiver U1, routed to J3 · datasheet p.2
- Antenna included
- no datasheet p.4
- Antenna inputs
- 1 the input of the antenna should be connected to J1 on the rec… · datasheet p.4
- Antenna connector
- SMA J1: SMA connector - DC - 18 GHz · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- GNSS bands
- GPS L1, BeiDou B1 (1560-1610 MHz)
- Correction technology
- RTK (Real-Time Kinematic)
- Supply voltage
- 3.3-5 V
- Current consumption
- 25 mA
- Data interfaces
- UART (3.3 V), RS-485 (5 V)
- Form factor
- OEM board
- Dimensions
- 58 mm
About
The M-GNSSB-RX is a compact multiband GNSS OEM receiver board developed by Arralis for high-precision positioning and navigation applications. It simultaneously receives GPS L1 and BeiDou B1 signals in the 1560-1610 MHz band and supports Real-Time Kinematic (RTK) correction technology for centimeter-level positioning accuracy in demanding environments.
The board operates from a 3.3-5 V supply drawing just 25 mA, making it highly power-efficient for battery-operated and space-constrained systems. Data interfaces include UART (compatible with 3.3 V logic) and RS-485 (requiring 5 V), providing flexibility for integration with embedded processors, mission computers, and secure communication systems.
The M-GNSSB-RX is designed for applications including defense navigation systems, autonomous vehicle positioning, urban canyon navigation, port logistics, and railway positioning where multi-constellation GNSS with RTK augmentation is required for resilience and accuracy. The OEM board form factor enables OEM integration into custom navigation units and satellite payloads.
