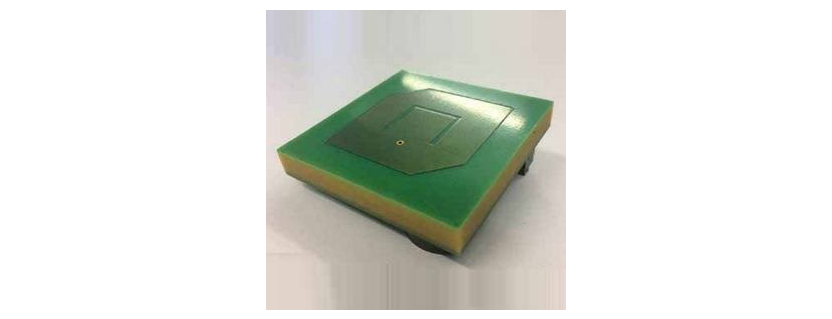

Multiband GNSS Module with Antenna M-GNSSB-ANT-RX
Arralis
The M-GNSSB-ANT-RX is a compact integrated multiband GNSS antenna and receiver module supporting GPS L1 and BeiDou B1 with 2-3 dB antenna gain, RTK capability, UART and RS-485 interfaces, designed for defense navigation, transportation, and precision positioning systems.
Typed specifications21 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- L datasheet p.1 S
- Peak gain
- 2–3 dBi product page
- Envelope (L×W×H)
- 58mm x 58mm datasheet p.2
- Supply voltage
- 3.3 V nom. · datasheet p.1 3.3 V | 5 V RS485 option | 3.3 V nom. · 3.3V d.c. supply at J4_1; typically draws 25mA | 5 V nom. · additional 5V supply at J4_2, required for RS485 output only
- Data interface
- RS-485 datasheet p.4 RS-485 positional output on J3_7 (P), J3_8 (N) | UART with R5 and R6 removed, pins J4_4 and J4_5 | UART
- Operating regime
- ground applications: transportation, road, rail, harbour traffic, HG… · datasheet p.1
- Signals and bands
- L1 datasheet p.1 B1
- Connector
- SMA connector - DC - 18GHz datasheet p.3
- PPS output
- yes 1PPS pin on J3 (schematic) · datasheet p.2
- Board format
- custom 58mm x 58mm receiver board · datasheet p.2
- Antenna inputs
- 1 antenna input J1 · datasheet p.4
- Antenna connector
- SMA J1 SMA connector - DC - 18GHz · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- GNSS bands
- GPS L1, BeiDou B1 (1560-1610 MHz)
- Antenna gain
- 2-3 dB
- Correction technology
- RTK (Real-Time Kinematic)
- Supply voltage
- 3.3-5 V
- Current consumption
- 25 mA
- Data interfaces
- UART, RS-485
- Dimensions
- 58 x 58 x 9 mm
About
The M-GNSSB-ANT-RX is an integrated GNSS module combining a multiband antenna with an embedded receiver, supporting GPS L1 and BeiDou B1 satellite systems in the 1560-1610 MHz frequency range. The integrated patch antenna provides 2-3 dB of gain, and the module outputs parsed GNSS data via UART or RS-485 interfaces, simplifying integration into navigation systems that require a single-unit GNSS solution.
The module operates from a 3.3-5 V supply consuming 25 mA and is housed in a compact 58x58x9 mm form factor, enabling integration into hand-held devices, vehicle navigation units, and autonomous system navigation subsystems. Real-Time Kinematic (RTK) correction capability provides centimeter-level accuracy when combined with a differential correction data stream.
The M-GNSSB-ANT-RX is developed by Arralis for defense positioning, autonomous vehicle navigation, logistics tracking, urban navigation, and rail transportation applications where a compact, all-in-one GNSS solution with multi-constellation support and precision positioning is needed. The integrated antenna design eliminates the need for external cabling to a separate antenna, reducing system complexity and potential single-point failures.
