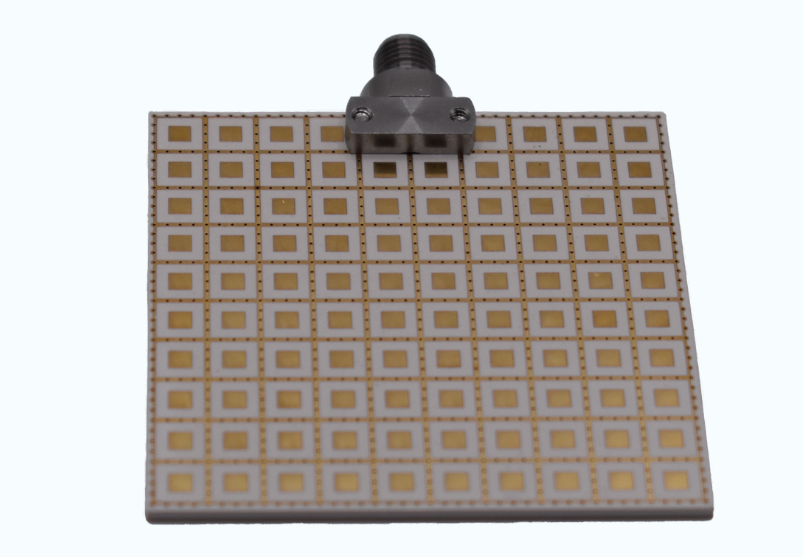

Ka-Band Flat Panel Array Antenna PAN-5151-64-KA
ReliaSat
The PAN-5151-64-KA is a 64-element passive Ka-band flat panel array antenna covering 27-31 GHz with 20 dBi gain and selectable LHCP or RHCP circular polarization in a compact 6-layer PCB construction for satellite uplink ground terminals.
Typed specifications22 values
Discloses 6 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- Ka datasheet p.1
- Peak gain
- 20 dBi datasheet p.2
- Frequency range
- 29 250 MHz nom. · Centre Frequency · datasheet p.2 27 000 MHz min | 27 000 MHz min · Matching Frequency Range | 31 000 MHz max | 31 000 MHz max · Matching Frequency Range +1
- Beamwidth (-3 dB)
- 13 ° datasheet p.2 13 ° 3 dB Beamwidth
- Envelope (L×W×H)
- 51 x 51 mm datasheet p.2
- Polarization
- LHCP datasheet p.1 LHCP LHCP or RHCP | RHCP | RHCP LHCP or RHCP | LHCP +1
- Antenna type
- Flat Panel Array datasheet p.1
- RF connector
- other K (rear mounted) · datasheet p.2
- Connector
- K (rear mounted) datasheet p.2
- Satellite class
- CubeSat Fits cubesats · datasheet p.1
- Fits satellite size
- custom Fits cubesats · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency
- 27-31 GHz
- Gain
- 20 dBi
- Array elements
- 64
- Polarization
- LHCP or RHCP (circular)
- PCB layers
- 6
- Profile
- Flat panel, low profile
- Beam type
- Fixed beam
About
The PAN-5151-64-KA is a passive flat panel array antenna designed for Ka-band uplink frequencies (27-31 GHz), providing 20 dBi of gain with circular polarization (LHCP or RHCP selectable) in a compact, low-profile 6-layer PCB construction. Its 64-element array delivers a high-gain fixed beam suitable for Ka-band satellite uplink terminals serving LEO, MEO, and GEO constellations.
The 6-layer PCB construction enables complex feed network routing within the antenna aperture while maintaining a thin overall profile, making the PAN-5151-64-KA ideal for installation on vehicles, buildings, and airframes where antenna depth is constrained. The wide operational bandwidth of 27-31 GHz spans the primary Ka-band uplink frequency allocations used by major LEO megaconstellation operators.
The antenna is designed to pair with Arralis/ReliaSat Ka-band transceiver modules to form complete Ka-band ground terminal solutions. Its passive design minimizes power consumption while providing the aperture gain needed for reliable high-data-rate satellite communications links.
