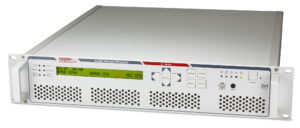

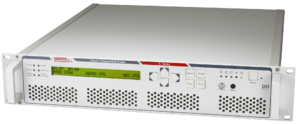

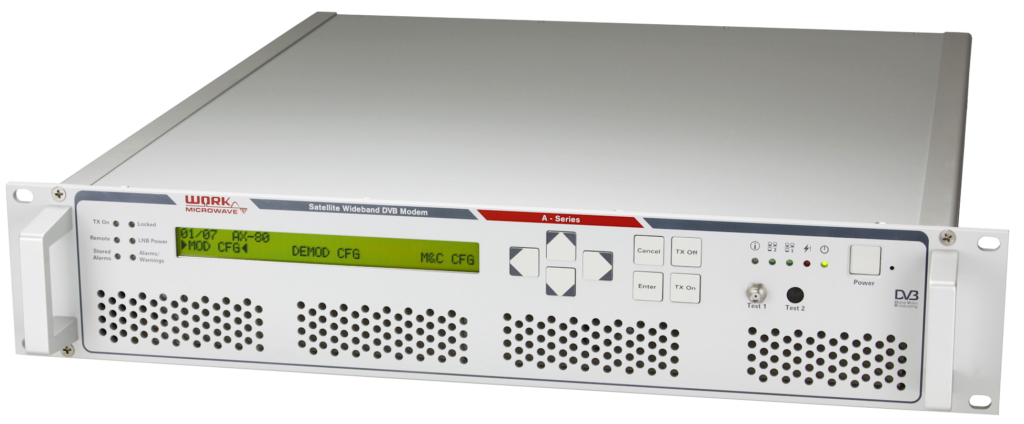

AX-80 Wideband Modem
WORK Microwave
The AX-80 Satellite Modem provides full IP connectivity over DVB links in the Gigabit-per-second-class, enabling high-speed integration into terrestrial networks with 10G Ethernet interfaces.
Typed specifications122 values
Discloses 7 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 14 000 g max · depending on device type · datasheet p.4 14 000 g max · up to approx. 14 kg depending on device type
- Link protocols and waveforms
- DVB-S2X - ETSI EN 302 307-2 datasheet p.1 CCSDS CCSDS CADU frames extraction from DVB-S2, w/ license CCSDS131.3 | proprietary customized signal and data processing | CCSDS decapsulation of CCSDS CADU frames | other DVB-CID, ETSI TS 103129 +15
- Frequency range
- 950 MHz min · RX Signal input L-band · datasheet p.3 950 MHz min · TX Signal output L-band | 2 150 MHz max · RX Signal input L-band | 2 150 MHz max · TX Signal output L-band | 950–2 150 MHz RX signal input L-band +1
- Envelope (L×W×H)
- 483 x 89 x 505 mm³ (WxHxD) datasheet p.4 483 x 89 x 505 WxHxD, 2 RU 19"
- TX RF output power
- 0 W min · TX Signal output L-band · datasheet p.2 0.001 W max · L-band output, 0.1 dB steps | 0.001 W max · TX Signal output L-band
- Data rate
- 6 000 000 kbps max · IP data rate limit, rx+tx processing (or 1 Mpps) · datasheet p.4 3 000 000 kbps max · per direction
- RX sensitivity
- -55 dBm min · RX Signal input L-band, total aggregate power · datasheet p.3 -10 dBm max · RX Signal input L-band, total aggregate power
- Modulation
- QPSK to 32APSK; normal, short DVB-S2 · datasheet p.1 QPSK, 8PSK, 16APSK, 32APSK DVB-S2, normal and short FEC frame (9/10 normal FEC frame only) | QPSK to 256APSK normal, short, linear DVB-S2X | 8PSK, 16APSK, 32APSK, 64APSK, 256APSK DVB-S2X, linear normal FEC frame | QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK DVB-S2X, normal FEC frame +30
- Supply voltage
- 100–240 V nom. · datasheet p.4 90 V min · Mains power input | 90–264 V max | 264 V max · Mains power input
- Power consumption
- 150 W typical (150 VA) · datasheet p.4 150 W nom. · typical
- Data interface
- Ethernet 6x RJ-45 10/100/1000Base-T data, 2x SFP+ (optical GbE or 10Gb… · datasheet p.4 Ethernet Data network | Ethernet Data network (RJ-45) | Ethernet M&C network | Ethernet M&C network (RJ-45) +1
- Operating temperature
- 0 °C min · datasheet p.4 50 °C max | 0–50 °C
- Function
- modem Satellite Modem · datasheet p.1
- Link use
- ground modem full IP connectivity over DVB links in the Gigabit-per-second… · datasheet p.1
- Frequency band
- L RX Signal input · datasheet p.3 L TX and RX L-band | L TX Signal output
- TX chains
- 1 single L-band signal output · datasheet p.2
- RF connector
- BNC 1 PPS input w/ option RI · datasheet p.4 BNC 5 or 10 MHz reference input w/ option RI | N RX L-band input, N female / SMA female adapter included, 50 Ohm | N RX Signal input L-band | SMA RX Signal input L-band (adapter included) +5
- RX chains
- 1 1x N female L-band input · datasheet p.3
- Connector
- 6x RJ-45 + 2x SFP+ data; 1x RJ-45 M&C; N female TX/RX; BNC reference and 1 PPS, DSUB-9 alarm (option RI); IEC C14 mains datasheet p.4 BNC female 1 PPS input | DSUB-9 female Alarm | RJ-45 Data network | RJ-45 M&C network +6
- Survival temperature
- -30 °C min · datasheet p.4 80 °C max | -30–80 °C storage
- Warranty
- 3 years datasheet p.1
- Max RX input level
- -10 dBm max · input power -55...-10 dBm, total aggregate · datasheet p.3
- Data interface speed
- 1 000 Mbps max · Ethernet RJ-45 10/100/1000Base-T · datasheet p.4 10 Mbps max · SFP+ optical/copper 10GbE
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier3 lines, in the manufacturer's own wording
- Symbolrates
- up to 500 Msps
- Data rate
- up to 3 Gbps per direction
- Roll-Off
- 35%, 25%, 20%, 15%, 10%, 5%
About
The AX-80 Wideband Modem is an end-to-end wideband transmit and receive solution capable of up to 500 Msps. It offers full throughput with 256APSK, reaching up to 3 Gbps per direction, and provides full IP connectivity over DVB links in the Gigabit-per-second-class. Featuring 10G Ethernet interfaces, it allows for high-speed integration into terrestrial networks. The modem includes real-time monitoring and control, along with powerful IP processing capabilities to support the fastest link available over satellite. Key features include DVB-S2X compliance, modulations up to 256APSK, symbol rates up to 500 Msps, and data rates up to 3 Gbps per direction. It also offers integrated Roll-Off options (35%, 25%, 20%, 15%, 10%, 5%), exceptionally clean signal output, internal processing, and predistortion for automatic group delay and nonlinearity compensation. The AX-80 operates as a layer 3 bridge or layer 3 router, including traffic shaping and QoS functionality, and features an ACM controller open to various ACM systems, as well as integrated GSE and MPE encapsulation. Its customizable processing infrastructure and flexible software architecture allow for easy integration into large communication systems and future virtualization of functionality.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
