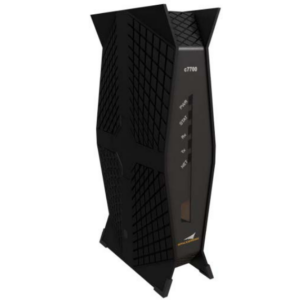

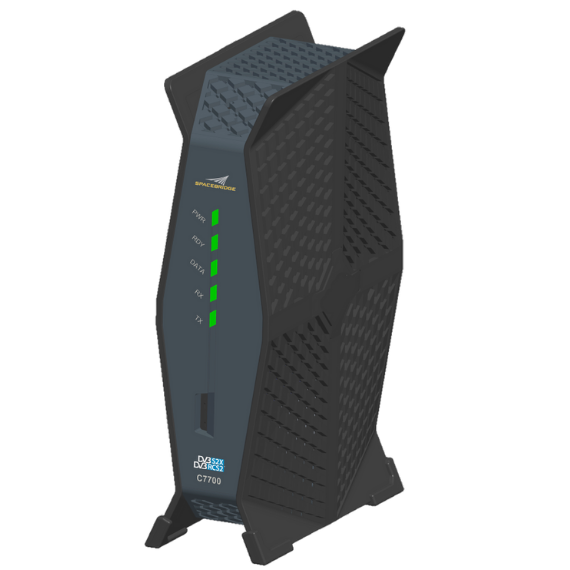

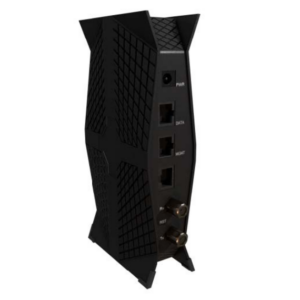

C7700 Desktop HTS Broadband VSAT Router
SpaceBridge Inc.
A compact desktop broadband Internet satellite modem optimized for next-generation HTS systems, delivering high speeds with TCP/IP acceleration and QoS.
Typed specifications88 values
Discloses 8 of 11 fields engineers filter by in this category (category median 6).
- Mass
- 340 g datasheet p.2 340 g 0.89 lbs
- Link protocols and waveforms
- other BM-FDMA or MF-TDMA access · datasheet p.2 DVB-S2/S2X ACM Forward Link | DVB-S2X forward link, ETSI EN 302 307-2 | MF-TDMA Return Link ASAT-II | BM-FDMA or MF-TDMA Return Link Estella +6
- Frequency range
- 950 MHz min · Terminal IF RX Interface · datasheet p.2 950 MHz min · Terminal IFL TX Interface | 2 150 MHz max · Terminal IF RX Interface | 2 400 MHz max · Terminal IFL TX Interface | 950–2 150 MHz Terminal IF RX Interface +1
- Envelope (L×W×H)
- 2” x 7.25” x 5” (51 x 182 x 127 mm) datasheet p.2 51 x 182 x 127 WxHxD, 2" x 7.25" x 5"
- TX RF output power
- 0 W min · datasheet p.2 0.001 W max | 0.001 W max · Tx output power level (IF) | 0–0.001 W
- Data rate
- 120 000 kbps Download speed · datasheet p.2 20 000 kbps Upload Speed | 120 000 kbps max · RX download speed | 20 000 kbps max · TX upload speed
- Modulation
- other 32QAM, TX return link ESTELLA · datasheet p.2 BPSK DVB-RCS2 and proprietary SRC-3 return channels | QPSK to 256APSK Forward Link | QPSK, 8PSK, 16QAM Return Link ASAT-II | BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM Return Link Estella +23
- Supply voltage
- 95 V min · External universal power supply · datasheet p.2 240 V max · External universal power supply | 95–240 V external universal power supply
- Power consumption
- 12 W Consumption (not including RF equipment / BUCpower) · datasheet p.2 65 W External universal power supply | 12 W not including RF equipment / BUC power
- Data interface
- Ethernet 1x1000BaseT user + 1x1000BaseT MGMT · datasheet p.2 Ethernet MGMT ports | Ethernet MGMT ports: 1x1000BaseT Ethernet | Ethernet User ports | Ethernet User ports: 1x1000BaseT Ethernet
- Operating temperature
- 0 °C min · datasheet p.2 50 °C max | 0–50 °C
- Function
- modem satellite modem/bridge/router · datasheet p.1
- Link use
- ground modem VSAT broadband terminal · datasheet p.1
- Frequency band
- L L-band IF, satellite/band independent · datasheet p.2 L Terminal IF RX Interface | L Terminal IFL TX Interface
- RF connector
- F IF RX, 75 Ohm · datasheet p.2 F IFL TX, 75 Ohm | F Terminal IF RX Interface | F Terminal IFL TX Interface
- Channel coding (FEC)
- LDPC forward link, LDPC/BCH · datasheet p.2 turbo return link, Turbo-Phi | BCH forward link, LDPC/BCH
- FPGA / SoC
- System on Chip (SoC) architecture datasheet p.2
- Encryption
- IPsec optional IPSec mode 256AES · datasheet p.1 AES-256 optional, up to AES256 | AES-256
- Data interface speed
- 1 000 Mbps Ethernet 1000BaseT · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Transmitter/receiver band
- Ka or Ku band
- Form factor
- Compact desktop appliance
- Architecture
- System on Chip (SoC) with Software Defined Radio (SDR)
- Modulation
- QPSK up to 256APSK LDPC/BCH
- Standards
- DVB-S2/S2X ACM, GSE encapsulation
- Network support
- Layer-3/Layer-2
- Download speed
- Up to 100 Mbps
- Upload speed
- Up to 10 Mbps
About
The C7700 is a broadband Internet satellite modem packed with a rich feature set and powerful performance capabilities in a compact desktop satellite modem appliance. It is optimized for next-generation High Throughput Satellite (HTS) systems, delivering high speeds along with TCP/IP and HTTP acceleration, user traffic compression, and Quality of Service (QoS) capabilities. The unit is built on a System on Chip (SoC) architecture featuring Software Defined Radio (SDR) technology, and supports DVB-S2/S2X ACM standards with GSE encapsulation and modulation up to 256APSK LDPC/BCH, operating over Ka or Ku band with Layer-3/Layer-2 network support. It is designed for consumer Internet, Small Office/Home Office (SOHO), and Small Medium Enterprise (SME) connectivity use cases.
