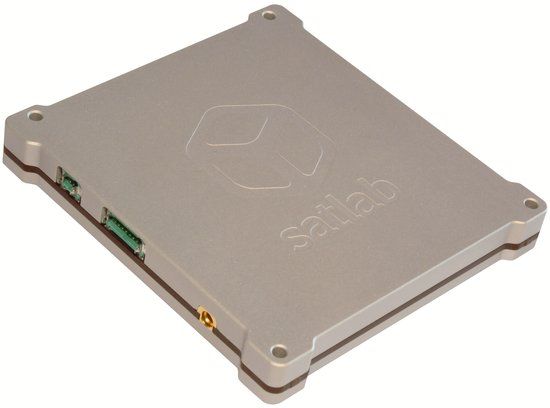

Satlab Polaris ADS-B
Satlab A/S
The Satlab Polaris ADS-B is a self-contained software-defined radio receiver for 1090 MHz ADS-B messages, featuring an integrated demodulator and storage.
Typed specifications49 values
Discloses 6 of 9 fields engineers filter by in this category (category median 4).
- Mass
- 185 g datasheet p.3
- Link protocols and waveforms
- CSP datasheet p.1
- Frequency range
- 865 MHz min · datasheet p.3 870 MHz max
- Envelope (L×W×H)
- 93.0 x 87.2 x 12.5 mm datasheet p.3
- Data rate
- 1 000 kbps CAN-bus · datasheet p.3 100 000 kbps Ethernet | 3 000 kbps RS-422
- RX sensitivity
- -130 dBm 99% reception rate, SF9 with CR4 · datasheet p.3 -121.8 dBm PER <1 % @ 869.525 MHz, SF8, Gain 15 | -126.6 dBm PER <1 % @ 869.525 MHz, SF8, Gain 20 | -127.6 dBm PER <1 % @ 869.525 MHz, SF8, Gain 25 | -124.7 dBm PER <1 % @ 869.525 MHz, SF9, Gain 15 +8
- Modulation
- LoRa datasheet p.3
- Supply voltage
- 4.5 V min · datasheet p.3 40 V max
- Power consumption
- 1.5 W typical, 5 V input, 25°C · datasheet p.3 0.185 W additional for Ethernet enabled | 0.11 W additional for RS-422 enabled | 0.08 W additional for SDRAM enabled | 1.8 W max, VIN 28V, CAN on, Ethernet off, RS-422 off +3
- Data interface
- CAN datasheet p.3 RS-422 | Ethernet
- Operating temperature
- -40 °C min · datasheet p.3 85 °C max
- Radiation tolerance (TID)
- 20 krad datasheet p.13
- TRL
- 9 product page
- Frequency band
- UHF datasheet p.1
- RF connector
- SMP datasheet p.3
- Board format
- PC/104 datasheet p.19
- Survival temperature
- -40 °C min · datasheet p.14 85 °C max
- Random vibration
- 14.1 g RMS product page
- Flight heritage
- first tested in space 2022 Q2 datasheet p.13
- Additional power (option)
- 0.185 W additional for Ethernet enabled · datasheet p.17 0.11 W additional for RS-422 enabled | 0.08 W additional for SDRAM enabled
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Frequency band
- 1090 MHz
- Ads-b message types
- DF 17 & 18
- Sensitivity
- -102 dBm (80% reception rate)
- Noise figure
- <2 dB
- Maximum message rate
- 8333 messages/second
- Frame store capacity
- 1048576 frames
- Supply voltage
- 4.5 - 40 V
- Typical power consumption
- 1500 mW (5 V input, 25℃)
- Operating temperature
- -40℃ to +85℃
- CAN-bus
- Up to 1 Mbit/s
- RS-422
- Full duplex, up to 3 Mbit/s
- Ethernet
- Full duplex, 100 Mbit/s
- Primary storage
- 128 MB NOR-flash
- Secondary storage
- 1 GB SLC SD card
- Dimensions
- 93.0 x 87.2 x 12.5 mm
- Mass
- 185 g
- Thermal soak
- -40 to +85℃
- Vibration testing
- 14.1 Grms
- TID
- 20 krad(Si) board level
- TRL
- 9
- Flight heritage
- Since 2019 (Polaris SDR product line), QubeAIS receiver since 2013
About
The Satlab Polaris ADS-B is a fully self-contained software-defined radio receiver specifically designed for 1090 MHz ADS-B messages. It includes an integrated demodulator and storage capabilities. This versatile SDR is optimized for the size, weight, and power constraints typical of CubeSats, and can also serve as an additional payload on larger Low Earth Orbit (LEO) satellites. Built on Satlab’s second-generation SDR platform, it leverages in-orbit experience gained from the QubeAIS receiver, which has been flying on missions since 2013. The Polaris ADS-B is part of the Polaris SDR product line, which has demonstrated reliable flight heritage since 2019, with over 100 units successfully delivered to customers worldwide for various space missions. It boasts a Technology Readiness Level (TRL) of 9, indicating it is fully qualified and operational in its intended environment. Custom hardware and software requests can often be accommodated.
