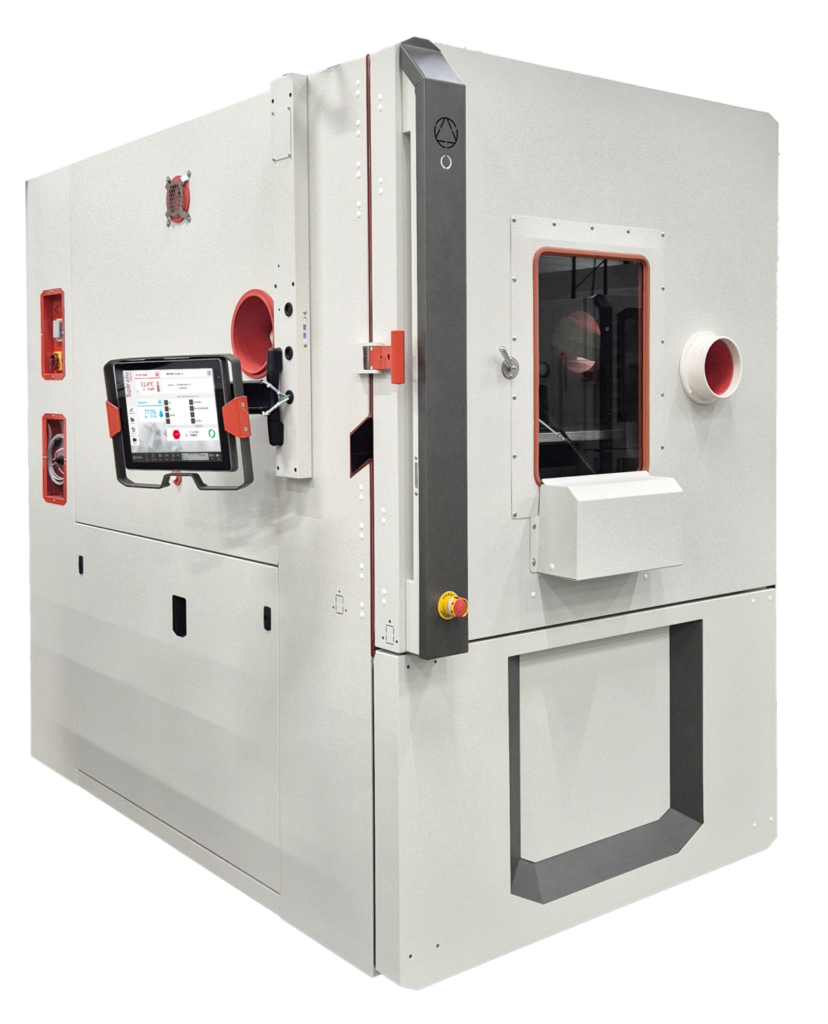

Environmental Stress Screening Chamber Type E1 (<3m³)
Climats
ESS thermal chamber, -80°C to +200°C, up to 20°C/min ramp for on-board electronics reliability testing.
Key figurescomparable across the catalogue
- Power
- 30,000 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Temperature Range
- -80°C to +200°C (+250°C on request)
- Volume
- Less than 3m³ (E1 Type)
- Absorbed Dissipative Power
- Over 30kW
- Ventilation
- Greater than 2m/s
- Noise Level
- <70 dBA (Energy Saving mode)
- Speed +90°C to -55°C
- >20°C/min
- Speed +80°C to -40°C (130kg load)
- >20°C/min
About
Climats Environmental Stress Screening (ESS) thermal chambers, Type E1 (under 3m³), can handle a wide range of temperature and humidity tests. This equipment features the latest technologies for regulating and controlling energy consumption, capable of adapting to multiple temperature and humidity tests while optimizing costs and gaining reliability. The chambers allow verification of on-board electronic component reliability including electronic cards, automotive, aeronautical and defense computers. The Fast Change Rate mode manages very fast or slow ramps, with average speeds of 20°C/min for +90°C/-55°C tests, processing large quantities of parts per cycle.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
