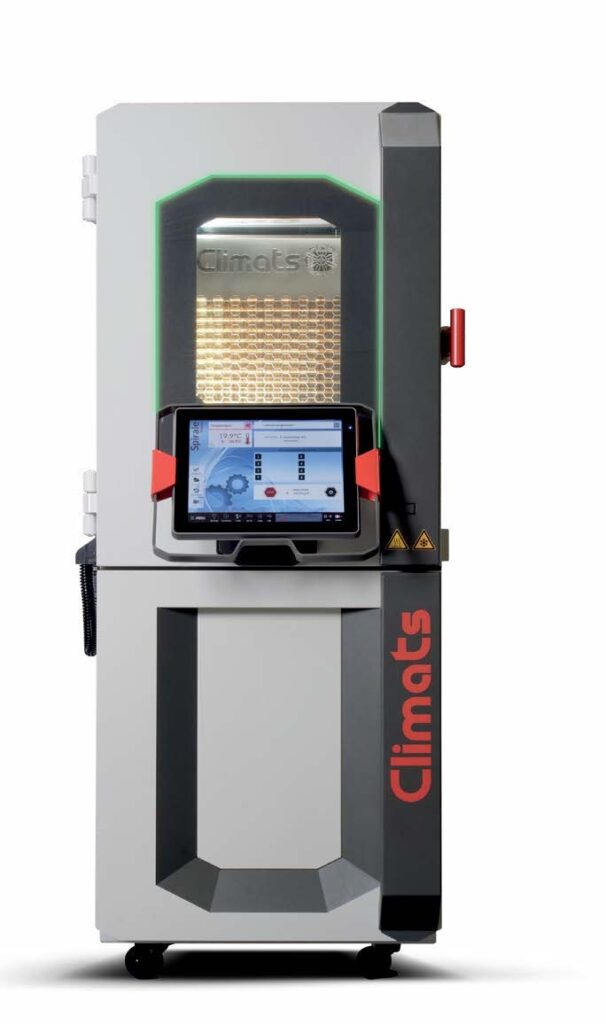

Climats EXCAL3 220 Environmental Test Chamber
Climats
A compact environmental test chamber with 227 liters internal volume, offering temperature ranges down to -80°C and various cooling/heating rates.
Key figurescomparable across the catalogue
- Power
- 5,000 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Internal dimensions (W x D x H)
- 540mm x 600mm x 700mm
- External dimensions (W x D x H)
- 783mm x 1912mm x 1842mm
- Internal volume
- 227 LITERS
- Minimum temperature
- -50°C (EXCAL 2251-T/H, EXCAL 2252-T/H), -70°C (EXCAL 2221-T/H), -80°C (EXCAL 2223-T/H, EXCAL 2224-T/H*)
- Rate of cooling (IEC 60068-3-5)
- 4.2 K/min (EXCAL 2251-T/H), 10 K/min (EXCAL 2252-T/H), 5 K/min (EXCAL 2221-T/H), 10 K/min (EXCAL 2223-T/H), 15 K/min (EXCAL 2224-T/H*)
- Rate of heating (IEC 60068-3-5)
- 4.5 K/min (EXCAL 2251-T/H), 14 K/min (EXCAL 2252-T/H), 5 K/min (EXCAL 2221-T/H), 14 K/min (EXCAL 2223-T/H), 15 K/min (EXCAL 2224-T/H*)
- Condenser type
- A/W (Air/Water)
- Maximum power consumed
- 5 kW (EXCAL 2251-T/H), 8 kW (EXCAL 2252-T/H), 7.9 kW (EXCAL 2221-T/H), 12.6 kW (EXCAL 2223-T/H), 17.1 kW (EXCAL 2224-T/H*)
- Sound pressure level
- 60 dB(A) (EXCAL 2251-T/H), 61 dB(A) (EXCAL 2252-T/H), 64 dB(A) (EXCAL 2221-T/H), 65 dB(A) (EXCAL 2223-T/H), 66 dB(A) (EXCAL 2224-T/H*)
About
The Climats EXCAL3 220 is a compact environmental test chamber designed for precise and repeatable climate testing. It features an internal volume of 227 liters and can achieve temperatures as low as -80°C. The chamber supports both air-cooled and water-cooled condenser types, offering flexibility for different operational needs. It includes a double airflow system for uniform air circulation, a mobile PT100 sensor for optimized regulation, and Spirale Vision software for control, recording, and traceability. The chamber is equipped with a Ø100 mm porthole on each side, a 180° door opening, integrated wheels for mobility, and a reinforced glass window for observation. It complies with numerous standards for cold, dry heat, damp heat, climatic cycle, and environmental stress screening tests.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
