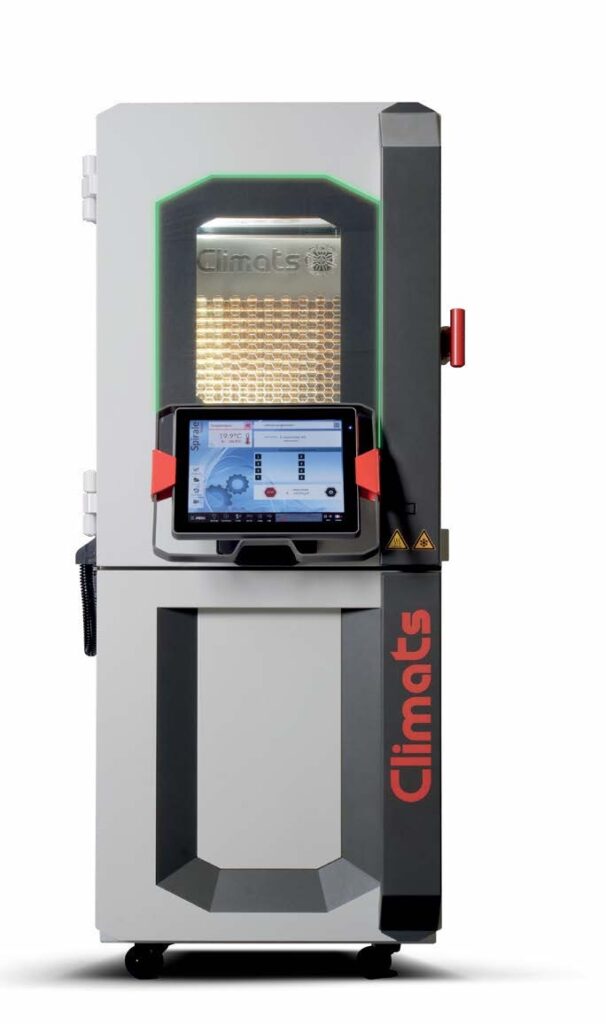

Climats EXCAL3 770 Environmental Test Chamber
Climats
A high-performance environmental test chamber with 769 liters internal volume, offering temperature ranges down to -90°C and various cooling/heating rates.
Key figurescomparable across the catalogue
- Power
- 9,800 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Internal dimensions (W x D x H)
- 900mm x 950mm x 900mm
- External dimensions (W x D x H)
- 1181mm x 2279mm x 2064mm
- Internal volume
- 769 LITERS
- Minimum temperature
- -50°C (EXCAL 7752-T/H, EXCAL 7753-T/H), -70°C (EXCAL 7723-T/H), -75°C (EXCAL 7724-T/H), -80°C (EXCAL 7725-T/H), -85°C (EXCAL 7727-T/H), -90°C (EXCAL 7728-T/H)
- Rate of cooling (IEC 60068-3-5)
- 5 K/min (EXCAL 7752-T/H), 15 K/min (EXCAL 7753-T/H), 4 K/min (EXCAL 7723-T/H), 7 K/min (EXCAL 7724-T/H), 10 K/min (EXCAL 7725-T/H), 14 K/min (EXCAL 7727-T/H), 18 K/min (EXCAL 7728-T/H)
- Rate of heating (IEC 60068-3-5)
- 6.3 K/min (EXCAL 7752-T/H), 16 K/min (EXCAL 7753-T/H), 5 K/min (EXCAL 7723-T/H), 7 K/min (EXCAL 7724-T/H), 13 K/min (EXCAL 7725-T/H), 13.5 K/min (EXCAL 7727-T/H), 18 K/min (EXCAL 7728-T/H)
- Condenser type
- A/W (Air/Water) or W (Water)
- Maximum power consumed
- 9.8 kW (EXCAL 7752-T/H), 18.5 kW (EXCAL 7753-T/H), 13.2 kW (EXCAL 7723-T/H), 18.2 kW (EXCAL 7724-T/H), 23.1 kW (EXCAL 7725-T/H), 23.7 kW (EXCAL 7727-T/H), 33.3 kW (EXCAL 7728-T/H)
- Net weight
- 702 kg (EXCAL 7752-T/H), 848 kg (EXCAL 7753-T/H), 761 kg (EXCAL 7723-T/H), 851 kg (EXCAL 7724-T/H), 996 kg (EXCAL 7725-T/H), 1028 kg (EXCAL 7727-T/H), 1060 kg (EXCAL 7728-T/H)
- Sound pressure level
- 61 dB(A) (EXCAL 7752-T/H), 67 dB(A) (EXCAL 7753-T/H), 65 dB(A) (EXCAL 7723-T/H), 66 dB(A) (EXCAL 7724-T/H), 66 dB(A) (EXCAL 7725-T/H), 67 dB(A) (EXCAL 7727-T/H), 68 dB(A) (EXCAL 7728-T/H)
About
The Climats EXCAL3 770 is a high-performance environmental test chamber designed for precise and repeatable climate testing. It features an internal volume of 769 liters and can achieve temperatures as low as -90°C. The chamber supports both air-cooled and water-cooled condenser types, offering flexibility for different operational needs. It includes a double airflow system for uniform air circulation, a mobile PT100 sensor for optimized regulation, and Spirale Vision software for control, recording, and traceability. The chamber is equipped with a Ø100 mm porthole on each side, a 180° door opening, integrated wheels for mobility, and a reinforced glass window for observation. It complies with numerous standards for cold, dry heat, damp heat, climatic cycle, and environmental stress screening tests.
