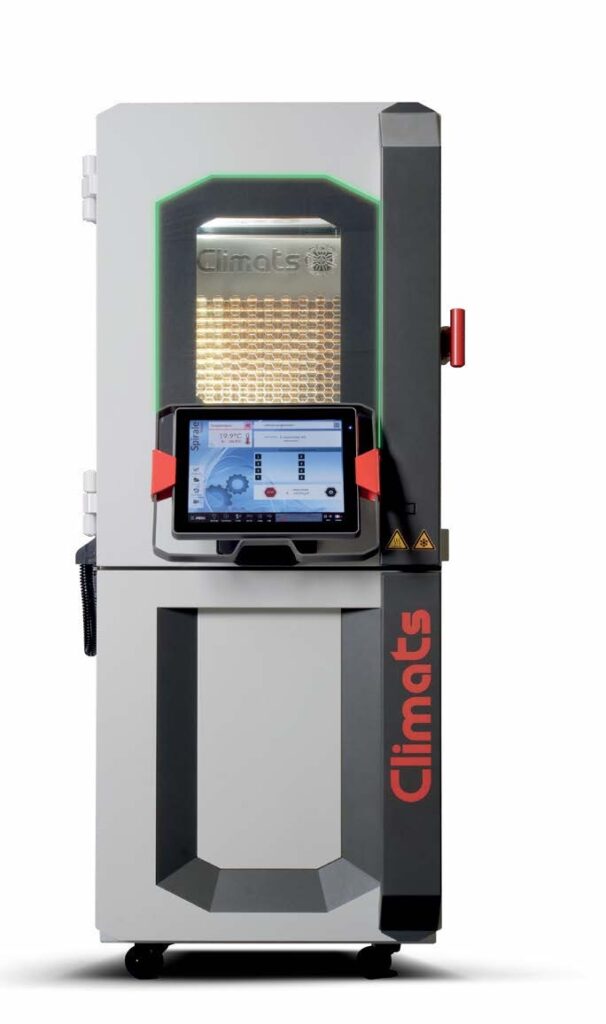

Climats EXCAL3 1000 Environmental Test Chamber
Climats
A universal environmental test chamber with 1000 liters internal volume, offering temperature ranges down to -85°C and various cooling/heating rates.
Key figurescomparable across the catalogue
- Power
- 9,800 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Internal dimensions (W x D x H)
- 1000mm x 1000mm x 1000mm
- External dimensions (W x D x H)
- 1285mm x 2325mm x 2165mm
- Internal volume
- 1000 LITERS
- Minimum temperature
- -50°C (EXCAL 10052-T/H, EXCAL 10053-T/H), -70°C (EXCAL 10023-T/H), -75°C (EXCAL 10024-T/H, EXCAL 10025-T/H), -85°C (EXCAL 10027-T/H, EXCAL 10028-T/H, EXCAL 10029-T/H**)
- Rate of cooling (IEC 60068-3-5)
- 4 K/min (EXCAL 10052-T/H), 13.5 K/min (EXCAL 10053-T/H), 2 K/min (EXCAL 10023-T/H), 4.5 K/min (EXCAL 10024-T/H), 7 K/min (EXCAL 10025-T/H), 8 K/min (EXCAL 10027-T/H), 12 K/min (EXCAL 10028-T/H), 18 K/min (EXCAL 10029-T/H**)
- Rate of heating (IEC 60068-3-5)
- 3.8 K/min (EXCAL 10052-T/H), 12 K/min (EXCAL 10053-T/H), 4.5 K/min (EXCAL 10023-T/H), 6.5 K/min (EXCAL 10024-T/H), 10.5 K/min (EXCAL 10025-T/H), 11 K/min (EXCAL 10027-T/H), 15 K/min (EXCAL 10028-T/H), 20 K/min (EXCAL 10029-T/H**)
- Condenser type
- A/W (Air/Water) or W (Water)
- Maximum power consumed
- 9.8 kW (EXCAL 10052-T/H), 18.5 kW (EXCAL 10053-T/H), 13.2 kW (EXCAL 10023-T/H), 18.2 kW (EXCAL 10024-T/H), 23.1 kW (EXCAL 10025-T/H), 23.6 kW (EXCAL 10027-T/H), 33.3 kW (EXCAL 10028-T/H), 44.9 kW (EXCAL 10029-T/H**)
- Net weight
- 875 kg (EXCAL 10052-T/H), 1007 kg (EXCAL 10053-T/H), 940 kg (EXCAL 10023-T/H), 1018 kg (EXCAL 10024-T/H), 1160 kg (EXCAL 10025-T/H), 1192 kg (EXCAL 10027-T/H), 1223 kg (EXCAL 10028-T/H), 1286 kg (EXCAL 10029-T/H**)
- Sound pressure level
- 61 dB(A) (EXCAL 10052-T/H), 65 dB(A) (EXCAL 10053-T/H), 65 dB(A) (EXCAL 10023-T/H), 66 dB(A) (EXCAL 10024-T/H), 66 dB(A) (EXCAL 10025-T/H), 67 dB(A) (EXCAL 10027-T/H), 68 dB(A) (EXCAL 10028-T/H), 70 dB(A) (EXCAL 10029-T/H**)
About
The Climats EXCAL3 1000 is a universal environmental test chamber designed for precise and repeatable climate testing. It features an internal volume of 1000 liters and can achieve temperatures as low as -85°C. The chamber supports both air-cooled and water-cooled condenser types, offering flexibility for different operational needs. It includes a double airflow system for uniform air circulation, a mobile PT100 sensor for optimized regulation, and Spirale Vision software for control, recording, and traceability. The chamber is equipped with a Ø100 mm porthole on each side, a 180° door opening, integrated wheels for mobility, and a reinforced glass window for observation. It complies with numerous standards for cold, dry heat, damp heat, climatic cycle, and environmental stress screening tests.
