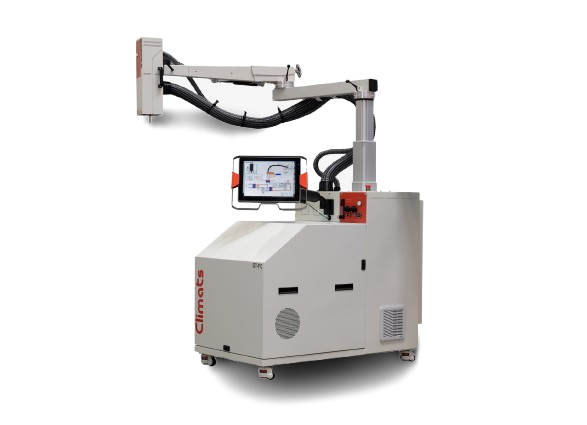

Excal GT-FC Air Generator
Climats
Localized thermal conditioning air generator, -70°C to +200°C, up to 32 Nm³/h, for electronic component testing.
Technical specifications
- Temperature Range
- -70°C to +200°C
- Air Flow
- up to 32 Nm³/h
- Temperature Stability
- ±0.1°C
- Average Temperature Variation
- >120°C/min
- Flexible Hose Length
- 2200 mm (±100)
About
The Excal GT-FC air generator has been designed for the thermal conditioning of electronic components. It can force air, at required flow rate and temperature, onto a very specific area. The air temperature can vary quickly along a large range, with a short stabilization time. Operating principle: after passing through a regenerative air dryer, the air is cooled to minimum temperature then reheated by the resistor in the outlet head. An auxiliary dry air outlet enables the work area to be swept by a conditioning bubble to prevent frost formation. Construction features refrigeration machinery in a soundproofed monoblock cabinet on castors with air sent through a hose ending in an outlet head.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
